Stainless Steel Stationary Hydraulic Drum Dumper – 60 In. Dump Height – 750 Lb. Capacity – HDD-60-7-S-SSC – Vestil

SKU: HDD-60-7-S-SSC
Regular price $6,958.46
Estimated Lead Time:7-9 Weeks

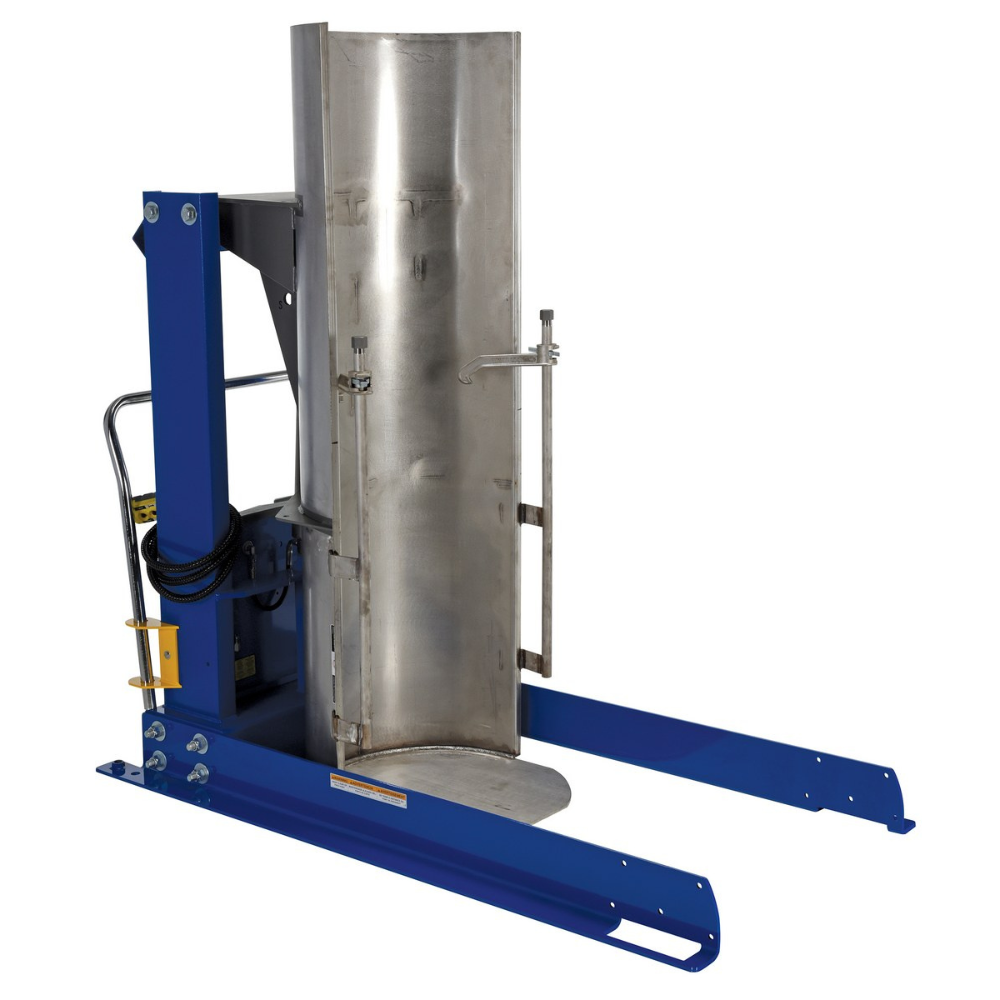

The Vestil Model HDD-60-7-S-SSC Stainless Steel Stationary Hydraulic Drum Dumper provides a reliable solution for lifting and dumping heavy drums in fixed applications. Designed to handle 30- and 55-gallon steel, plastic, and fiber drums, this unit is powered by a pre-wired 3/4 horsepower electric motor for efficient operation. Adjustable vertical drum restraints ensure secure handling, while the solid stainless steel chute delivers long-lasting durability. The unit includes an upper travel limit switch, a brass safety velocity fuse in the cylinder, and vertical adjustment features to enhance operator safety. Operated with a handheld control on an 8 ft. coil cord, the dumper delivers smooth performance with a 45° dump angle.

  • Model Number: HDD-60-7-S-SSC
  • Capacity: 750 lbs
  • Compatible Drum Size: 30 Gallon & 55 Gallon
  • Compatible Drum Material: Steel, Plastic & Fiber
  • Maximum Dump Height: 60 in
  • Dump Angle: 45°
  • Drum Rotation: 135° (may be stopped at any point)
  • Chute Diameter: 24 in
  • Raise Time: 42 seconds
  • Assembled Size: 36"W x 80"L x 84"H
  • Assembled Weight: 798 lbs
  • Shipping Weight: 988 lbs

Manufacturer Warranty: 1 Year – Limited Parts
