Stainless Steel Stationary Hydraulic Drum Dumper – 60 In. Dump Height – 1,000 Lb. Capacity – HDD-60-10-S-SSC – Vestil

SKU: HDD-60-10-S-SSC
Regular price $7,265.63
Estimated Lead Time:7-9 Weeks

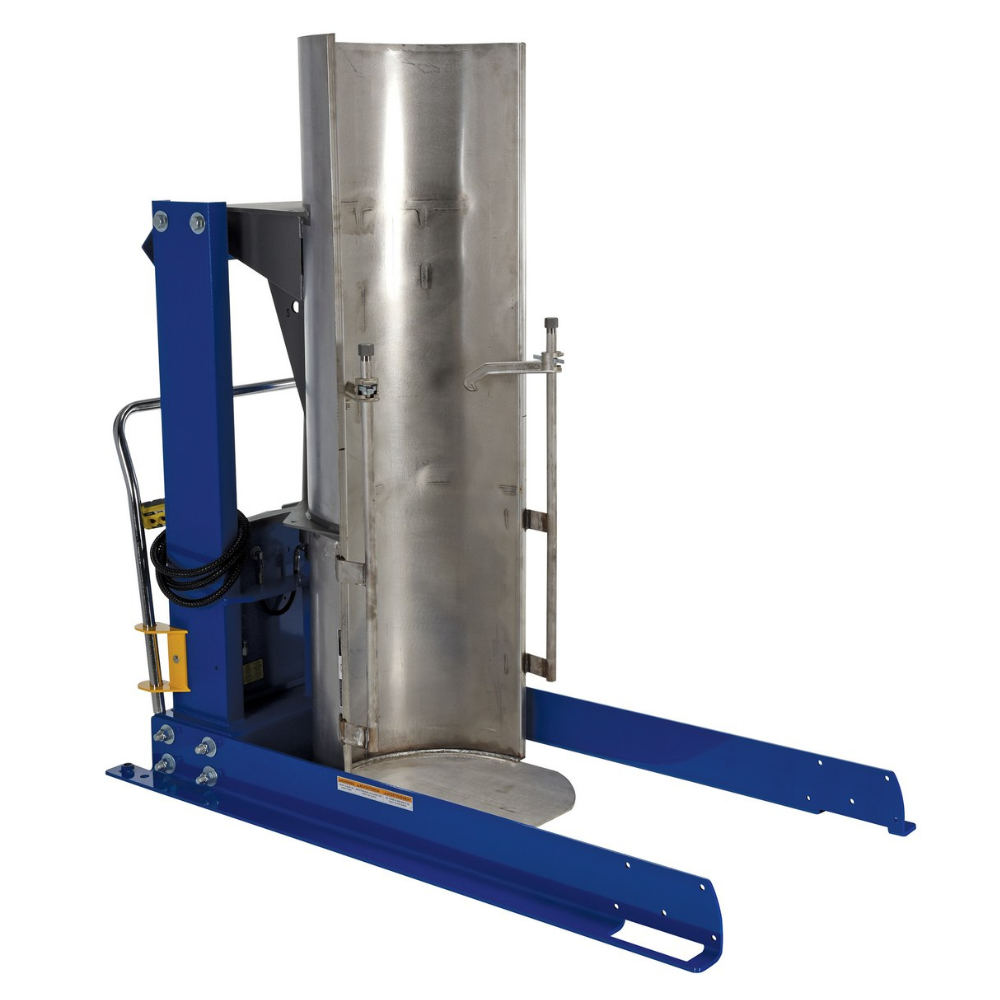

The Vestil Model HDD-60-10-S-SSC Stainless Steel Stationary Hydraulic Drum Dumper is engineered to handle the safe and efficient dumping of 30- and 55-gallon steel, plastic, and fiber drums. Featuring a solid stainless steel chute and heavy-duty welded construction, this dumper ensures rugged long-term use. It includes essential safety systems such as an upper travel limit switch, an emergency brass safety velocity fuse, and vertical adjustable drum restraints. Controlled with a handheld pendant on a coil cord, the unit allows precise dumping operations with a maximum dump height of 60 inches and a 45° tilt angle.

  • Model Number: HDD-60-10-S-SSC
  • Capacity: 1,000 lbs
  • Compatible Drums: 30 & 55-gallon (Steel, Plastic, Fiber)
  • Overall Dimensions: 80"L x 36"W x 84"H
  • Assembled Weight: 798 lbs
  • Maximum Dump Height: 60"
  • Overall Lowered Height: 84"
  • Overall Raised Height: 136.75"
  • Dump Angle: 45°
  • Drum Rotation: 135°
  • Motor Power: 0.75 HP, Single Phase, 115V, 60 Hz
  • Power Cord Length: 8 ft
  • Handheld Control Cord Length: 8 ft
  • Chute Diameter: 24"
  • Chute Reach: 14"
  • Cylinder Size: 2.5" Diameter x 18" Length

Manufacturer Warranty: 1 Year Limited – Parts
