Stainless Steel Portable Hydraulic Drum Dumper – 72 In. Dump Height – 750 Lb. Capacity – HDD-72-7-P-SSC – Vestil

SKU: HDD-72-7-P-SSC
$7,936.39
Estimated Lead Time:7-9 Weeks

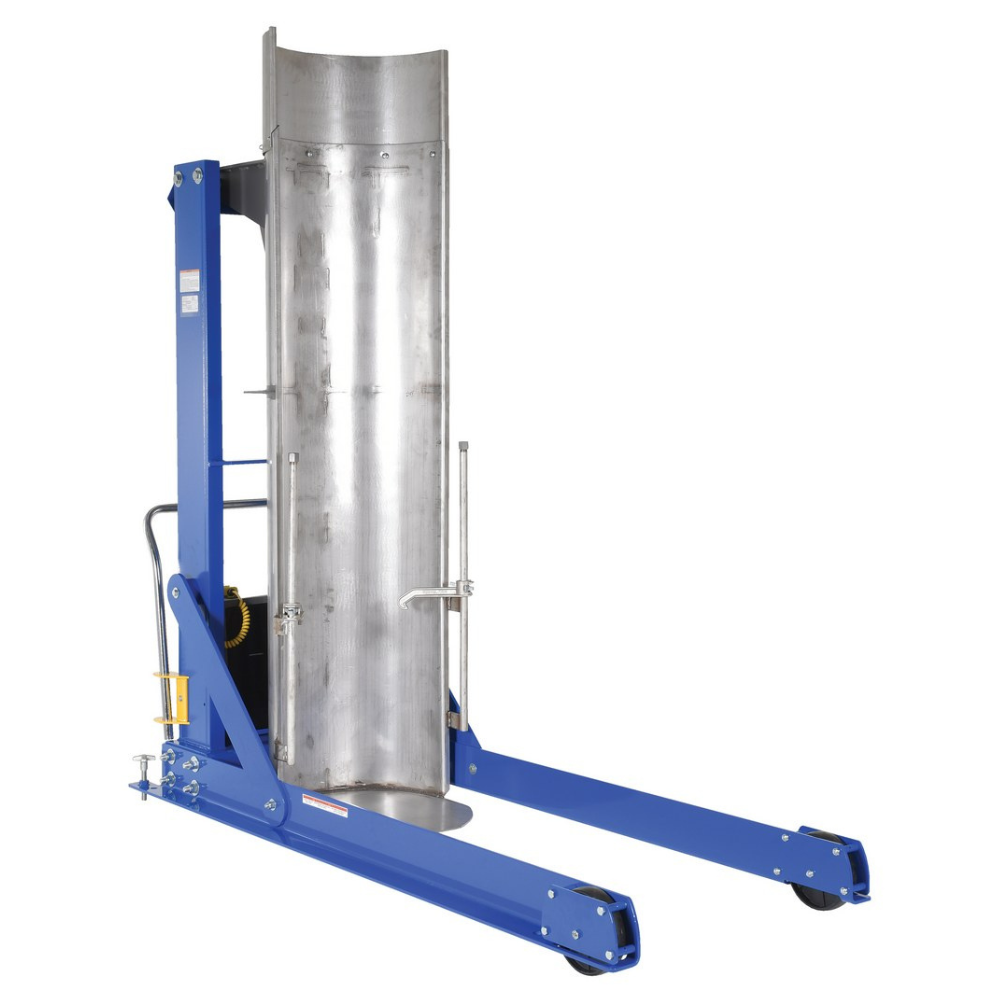

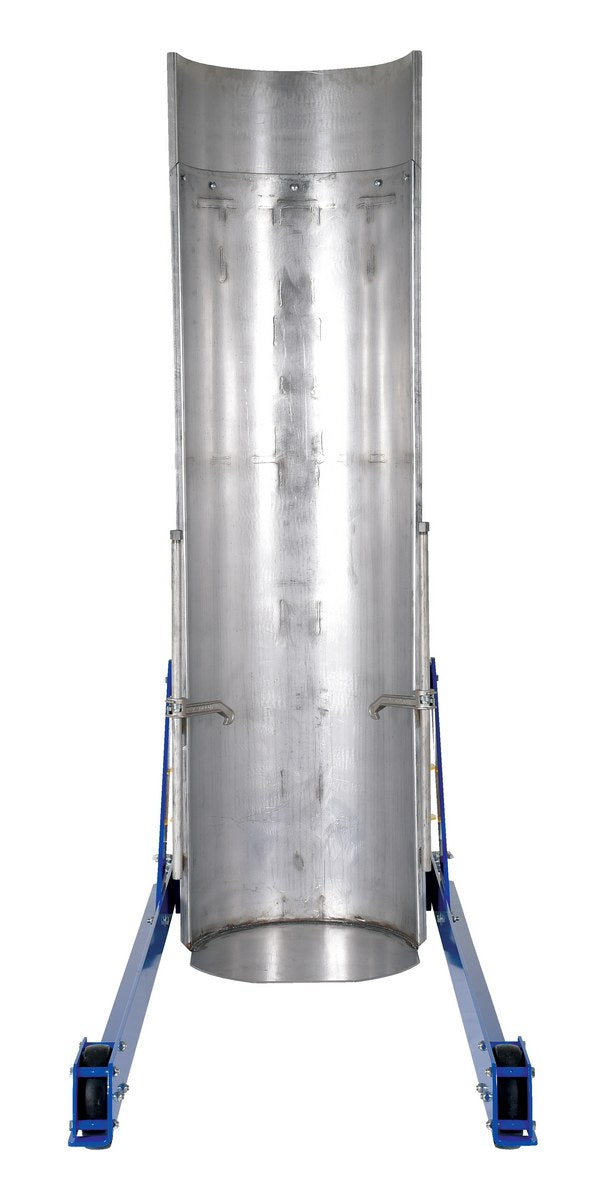

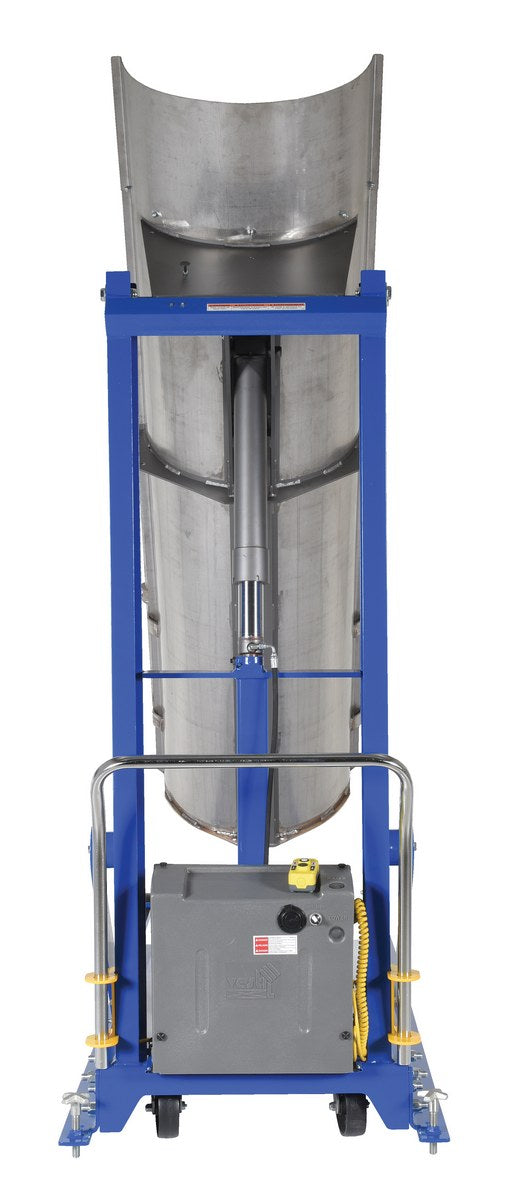

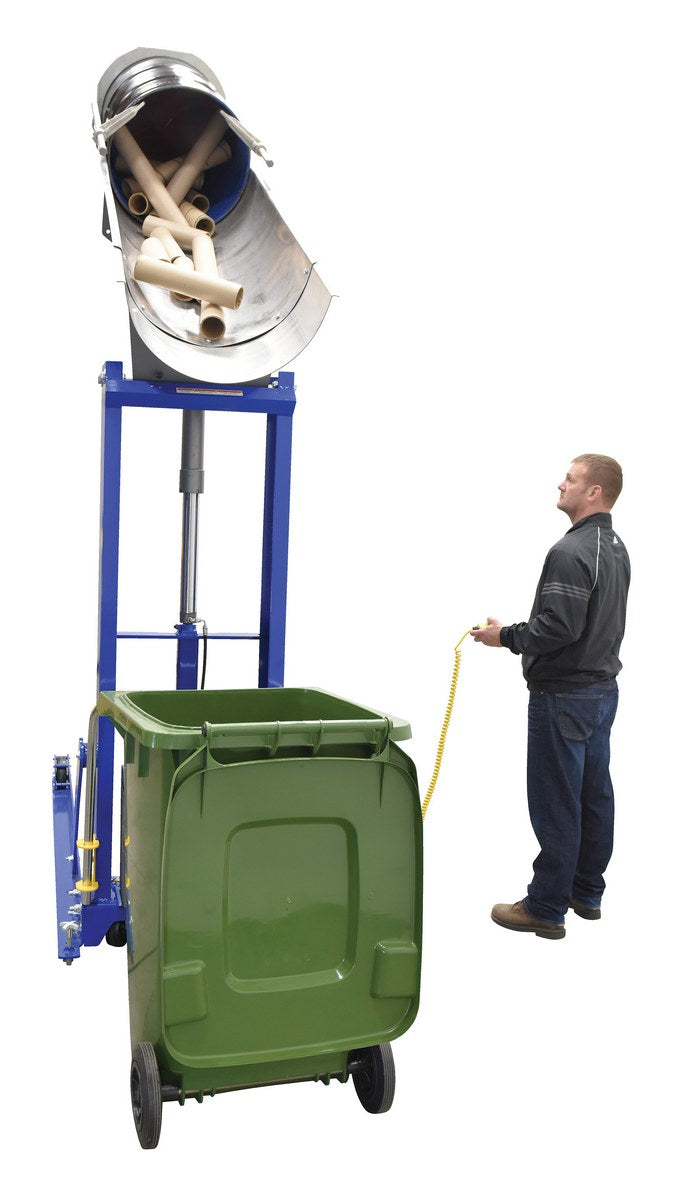

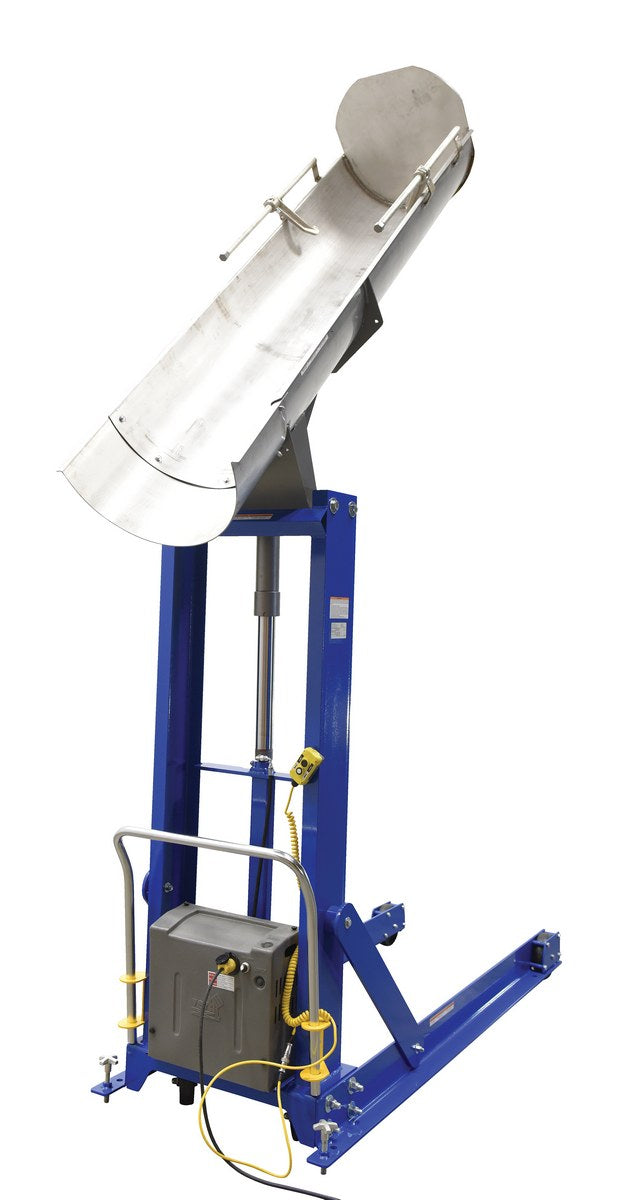

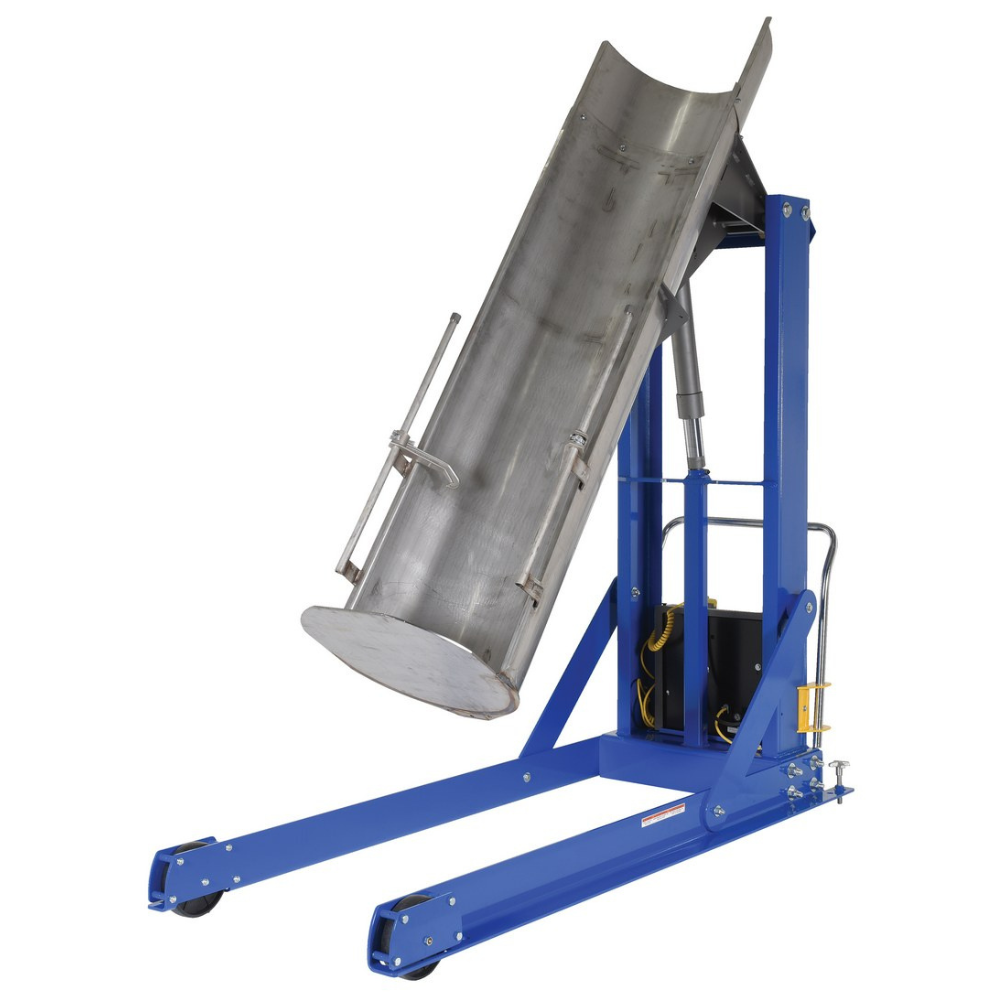

The Vestil HDD-72-7-P-SSC Stainless Steel Portable Hydraulic Drum Dumper is built for safe and efficient heavy-duty drum handling. With a 72-inch dump height and a 750 lb. capacity, this unit handles 30- and 55-gallon steel, plastic, or fiber drums with ease. Featuring a stainless steel chute, rugged steel frame, and integrated safety systems (upper travel limit switch and brass velocity fuse), this dumper ensures reliable and secure operation. The dumper is powered by a pre-wired electric motor and operated through a handheld control on a coil cord, allowing operators to safely stop drum rotation at any point.
  • Model Number: HDD-72-7-P-SSC
  • Capacity: 750 lbs
  • Compatible Drums: 30 & 55 Gallon – Steel, Plastic, Fiber
  • Overall Dimensions: 92"L x 36"W x 96"H
  • Assembled Weight: 939 lbs
  • Overall Lowered Height: 95.25"
  • Overall Raised Height: 157.5"
  • Maximum Dump Height: 72"
  • Dump Angle: 45°
  • Drum Rotation: 135°
  • Motor Power: 0.75 HP, 115V, Single Phase, 60 Hz
  • Power Cord Length: 8 ft
  • Handheld Control Cord Length: 8 ft
  • Cylinder Size: 2.5" Diameter x 18" Length
  • Chute Diameter: 24"
  • Chute Reach: 13.5"

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
