Stainless Steel Portable Hydraulic Drum Dumper – 72 In. Dump Height – 1,500 Lb. Capacity – HDD-72-15-P-SSC – Vestil

SKU: HDD-72-15-P-SSC
$9,034.28
Estimated Lead Time:7-9 Weeks

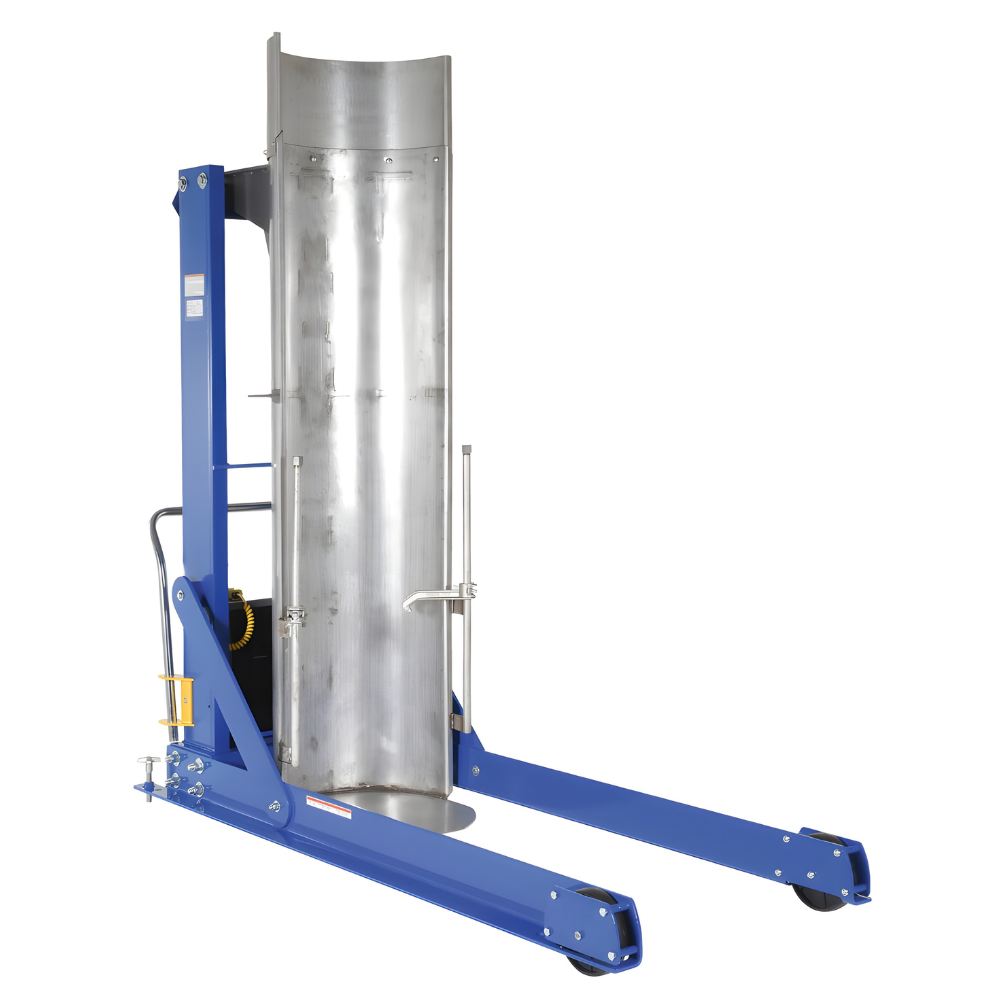

The Vestil HDD-72-15-P-SSC Stainless Steel Portable Hydraulic Drum Dumper is built to provide maximum efficiency and safety when handling heavy drums. With a 72-inch dump height and 1,500 lb. uniform capacity, this unit is ideal for high-volume material handling applications. Designed for 30- and 55-gallon steel, plastic, and fiber drums, it features a solid stainless steel chute, a heavy-duty motor, and a secure drum restraint system. The unit is equipped with casters and floor lock screws for stability, ensuring both mobility and reliability. Safety features include an upper travel limit switch, emergency brass safety velocity fuse, and vertical adjustment drum restraints. Operation is simplified with a handheld control on a coil cord
  • Model Number: HDD-72-15-P-SSC
  • Capacity: 1,500 lbs
  • Compatible Drums: 30 & 55 Gallon – Steel, Plastic, Fiber
  • Overall Dimensions: 92"L x 36"W x 96"H
  • Assembled Weight: 939 lbs
  • Overall Lowered Height: 96"
  • Overall Raised Height: 157.5"
  • Maximum Dump Height: 72"
  • Dump Angle: 45°
  • Drum Rotation: 135°
  • Motor Power: 0.75 HP, 115V, Single Phase, 60 Hz
  • Power Cord Length: 8 ft
  • Handheld Control Cord Length: 8 ft
  • Cylinder Size: 3" Diameter x 18" Length
  • Chute Diameter: 24"
  • Chute Reach: 13.5"

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
