Stainless Steel Portable Hydraulic Drum Dumper – 60 In. Dump Height – 1,500 Lb. Capacity – HDD-60-15-P-SSC – Vestil

SKU: HDD-60-15-P-SSC
$8,509.69
Estimated Lead Time:7-9 Weeks

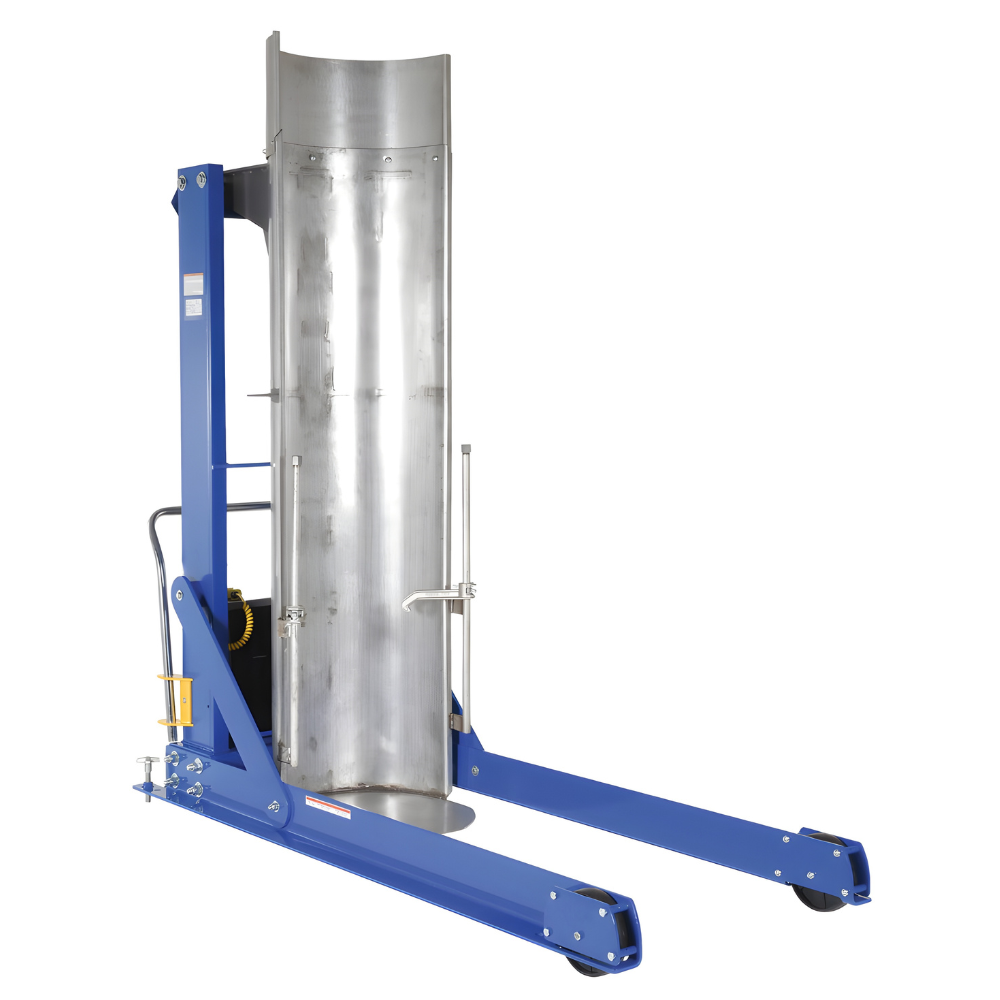

The Vestil Model HDD-60-15-P-SSC Stainless Steel Portable Hydraulic Drum Dumper is designed for safe, efficient, and heavy-duty drum dumping. Capable of handling 30- and 55-gallon steel, plastic, and fiber drums, this dumper features a solid stainless steel chute and a portable frame with casters and floor lock screws for added mobility. Built with rugged all-steel construction, it includes an upper travel limit switch, an emergency brass safety velocity fuse in the cylinder, and adjustable vertical drum restraints for maximum operational safety. The unit is operated using a handheld control on a coil cord, allowing precise dumping with a maximum height of 60 inches and a 45° tilt.
  • Model Number: HDD-60-15-P-SSC
  • Capacity: 1,500 lbs
  • Compatible Drums: 30 & 55-gallon (Steel, Plastic, Fiber)
  • Overall Dimensions: 80"L x 36"W x 84.5"H
  • Assembled Weight: 860 lbs
  • Maximum Dump Height: 60"
  • Overall Lowered Height: 84.5"
  • Overall Raised Height: 137.25"
  • Dump Angle: 45°
  • Drum Rotation: 135°
  • Motor Power: 0.75 HP, Single Phase, 115V, 60 Hz
  • Power Cord Length: 8 ft
  • Handheld Control Cord Length: 8 ft
  • Chute Diameter: 24"
  • Chute Reach: 14"

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
