Home » Stainless Steel Portable Hydraulic Drum Dumper – 60 In. Dump Height – 1,000 Lb. Capacity – HDD-60-10-P-SSC – Vestil
Vestil

Stainless Steel Portable Hydraulic Drum Dumper – 60 In. Dump Height – 1,000 Lb. Capacity – HDD-60-10-P-SSC – Vestil

SKU: HDD-60-10-P-SSC
$7,593.25
Estimated Lead Time:7-9 Weeks

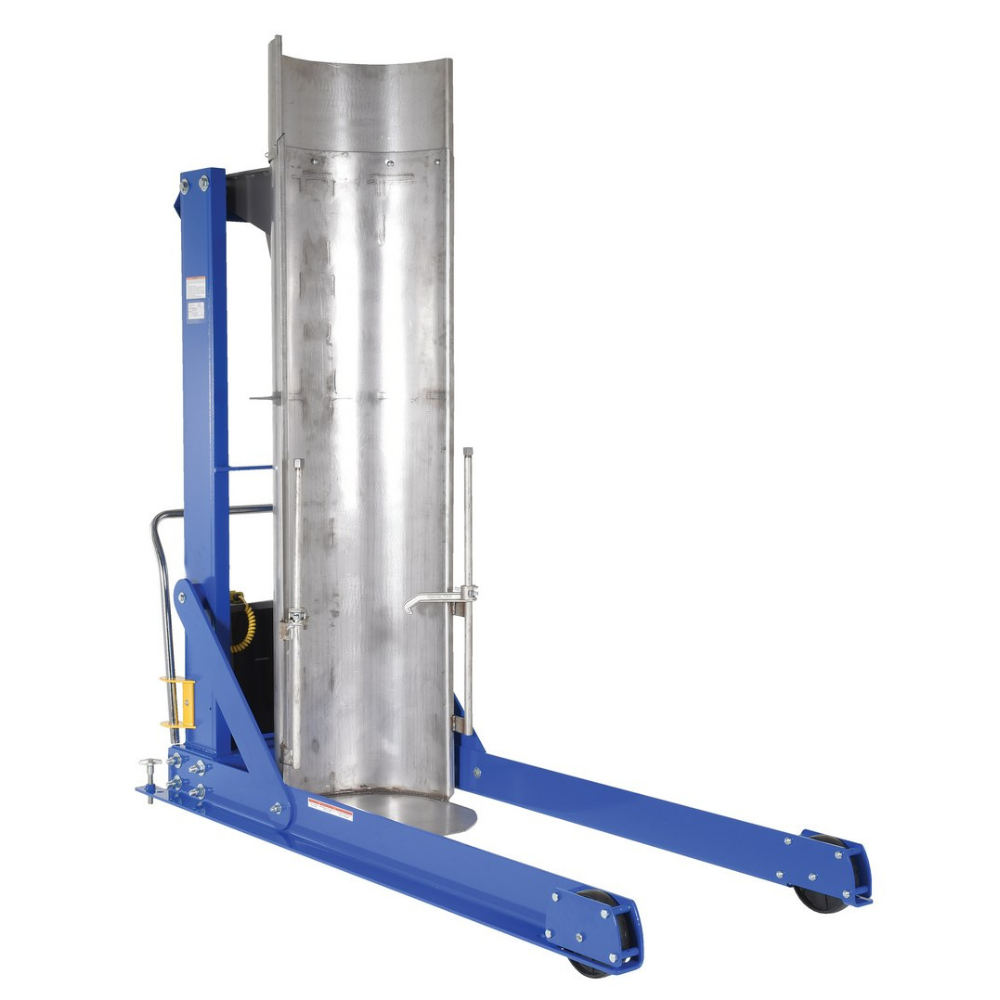

The Vestil Model HDD-60-10-P-SSC Stainless Steel Portable Hydraulic Drum Dumper is built for safe and efficient dumping of 30- and 55-gallon drums made of steel, plastic, or fiber. This unit features a solid stainless steel chute, heavy-duty welded frame, and casters with floor lock screws for mobility and stability. Equipped with an internal pre-wired electric motor, an upper travel limit switch, and an emergency brass safety velocity fuse, this unit combines power, safety, and long-lasting performance. A handheld control with coil cord allows operators to precisely manage the dumping cycle. Designed for sanitary and industrial environments, its stainless steel construction resists corrosion and ensures reliability.
  • Model Number: HDD-60-10-P-SSC
  • Capacity: 1,000 lbs
  • Compatible Drums: 30 & 55-gallon (Steel, Plastic, Fiber)
  • Overall Dimensions: 80"L x 36"W x 84.5"H
  • Assembled Weight: 860 lbs
  • Maximum Dump Height: 60"
  • Overall Lowered Height: 84.5"
  • Overall Raised Height: 137.25"
  • Dump Angle: 45°
  • Drum Rotation: 135°
  • Motor Power: 0.75 HP, Single Phase, 115V, 60 Hz
  • Power Cord Length: 8 ft
  • Handheld Control Cord Length: 8 ft
  • Chute Diameter: 24"
  • Chute Reach: 14"

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
