Home » Stainless Steel Portable Hydraulic Drum Dumper – 48 In. Dump Height – 750 Lb. Capacity – HDD-48-7-P-SSC – Vestil
Vestil

Stainless Steel Portable Hydraulic Drum Dumper – 48 In. Dump Height – 750 Lb. Capacity – HDD-48-7-P-SSC – Vestil

SKU: HDD-48-7-P-SSC
$6,915.59
Estimated Lead Time:7-9 Weeks

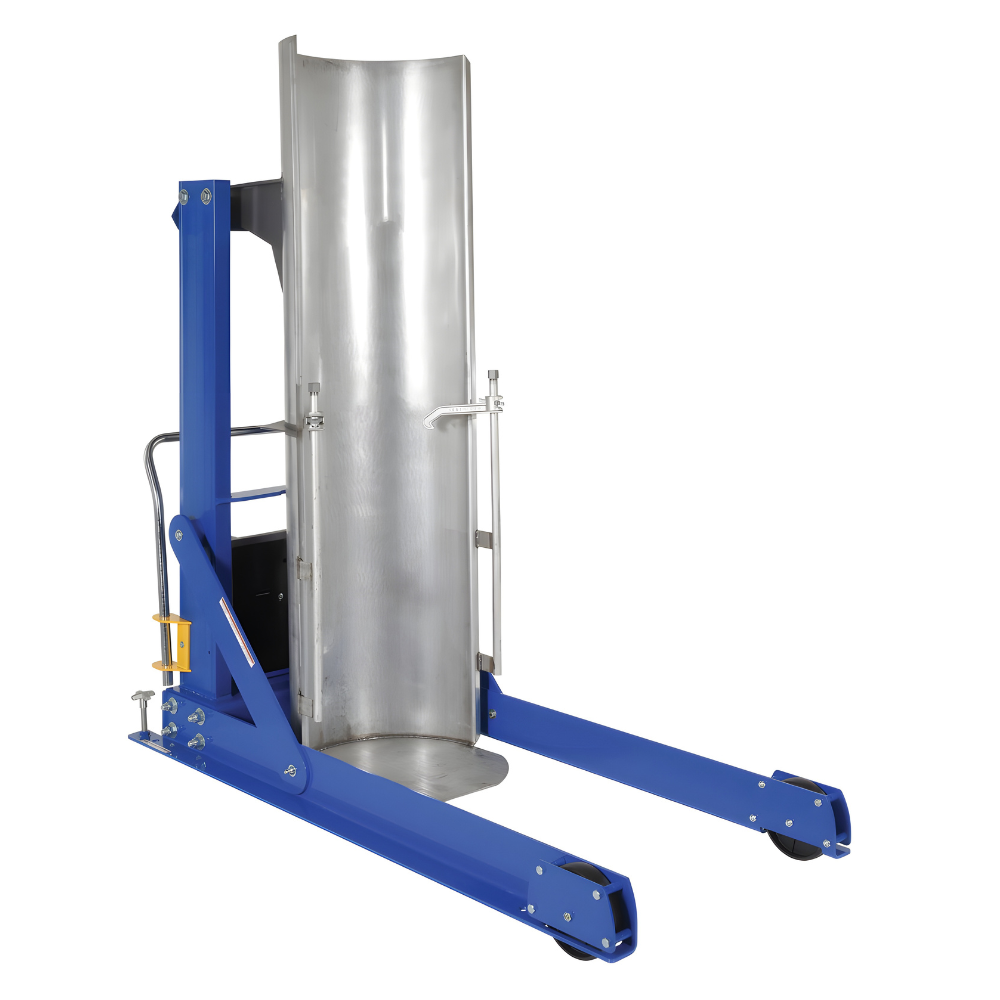

The Vestil Model HDD-48-7-P-SSC Stainless Steel Portable Hydraulic Drum Dumper is designed for safely lifting and dumping heavy drums with efficiency. Compatible with 30- and 55-gallon steel, plastic, and fiber drums, this unit features a solid steel chute, upper travel limit switch, emergency brass safety velocity fuse, and vertical adjustment restraints for secure operation. The integrated hand-held control on a coil cord ensures easy and precise handling. Built with 304 stainless steel construction, the dumper delivers long-lasting performance in industrial applications, while its portability is enhanced with swivel and rigid casters equipped with floor lock screws.
  • Model Number: HDD-48-7-P-SSC
  • Capacity: 750 lbs
  • Compatible Drums: 30- & 55-gallon (Steel, Plastic & Fiber)
  • Overall Dimensions: 71.5"L x 36"W x 72.5"H
  • Assembled Weight: 738 lbs
  • Maximum Dump Height: 48"
  • Overall Lowered Height: 72.5"
  • Overall Raised Height: 116.75"
  • Dump Angle: 45°
  • Motor Power: 0.75 HP, Single Phase, 115V, 60 Hz
  • Drum Rotation: 135°
  • Total Ship Weight: 864 lbs (1 package)

Warranty (PDF)

Manufacturer Warranty: 1 Year Limited – Parts
