5,000 Lb. Stainless Steel Leveling Jack – LJ-21-SS - Vestil

SKU: LJ-21-SS
$333.59
Estimated Lead Time:1-3 Days

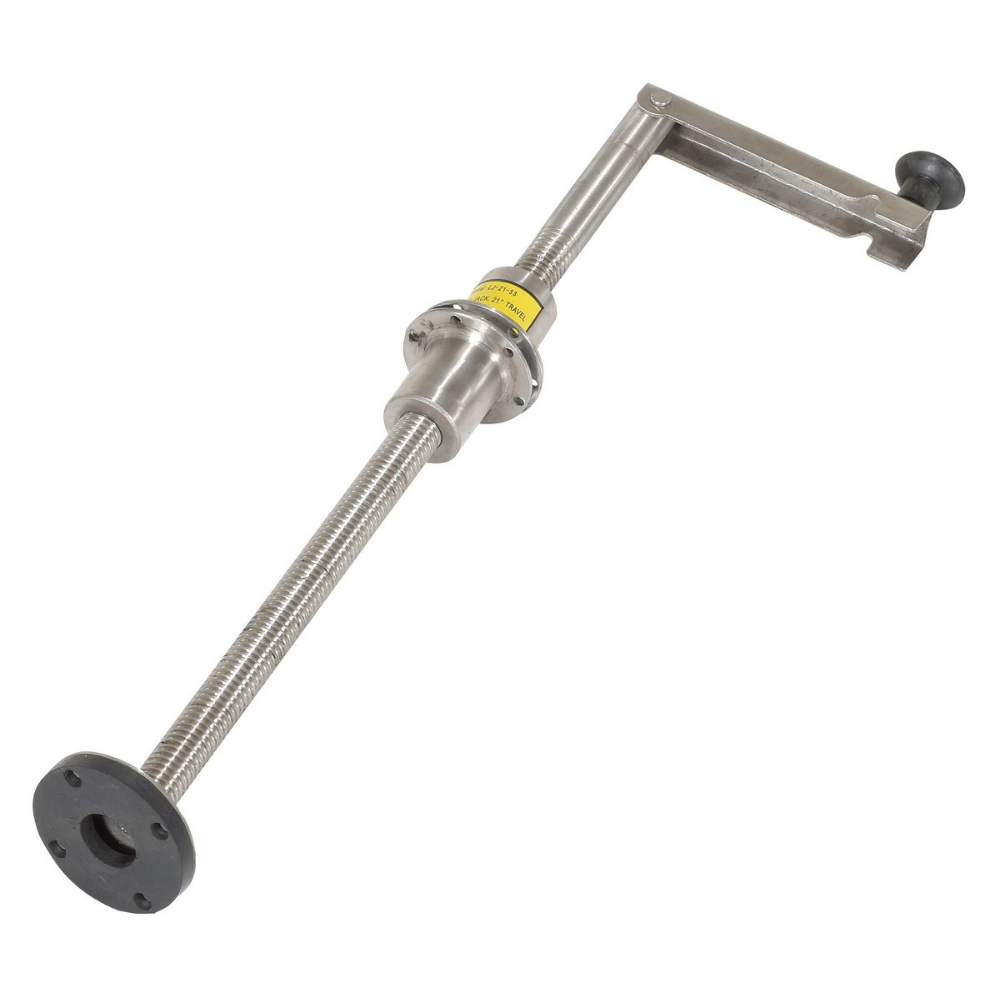

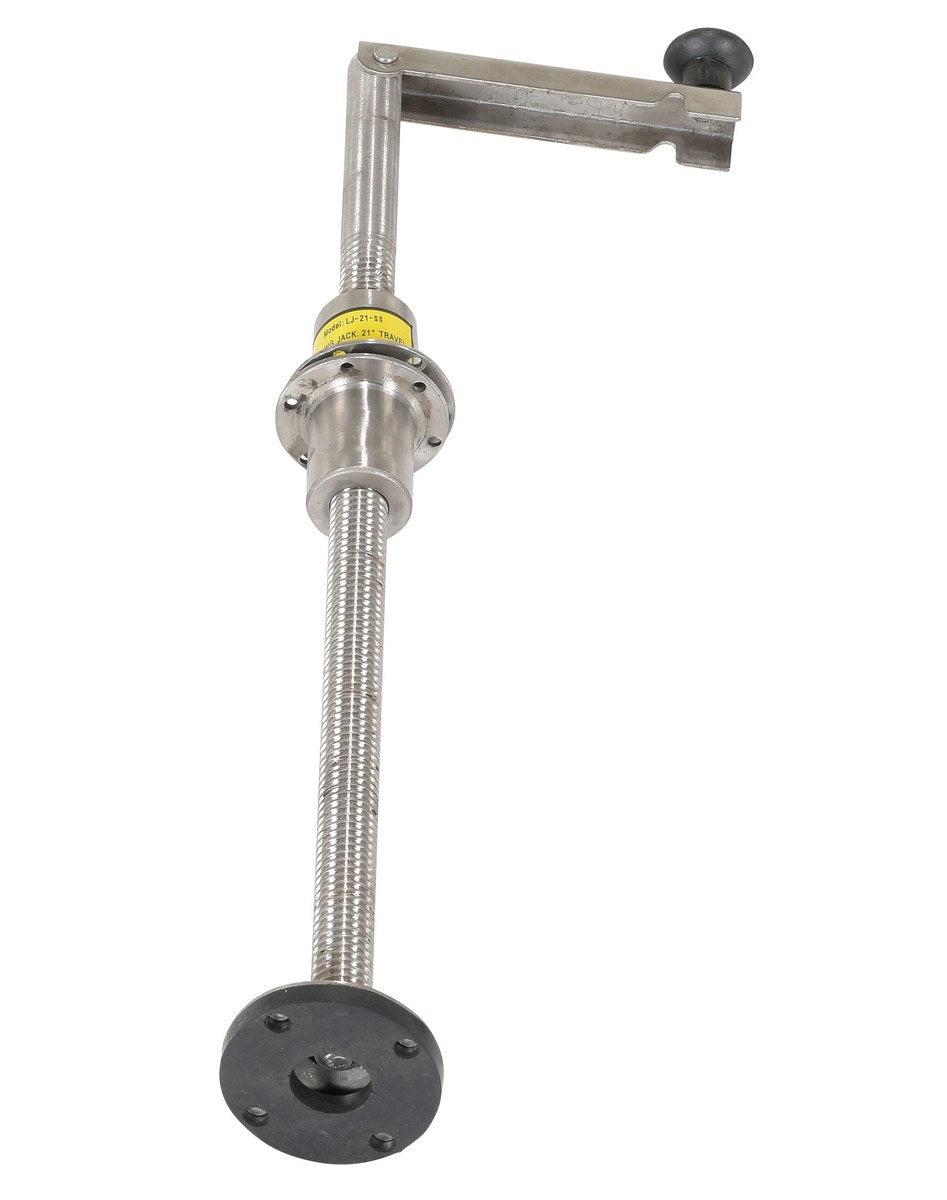

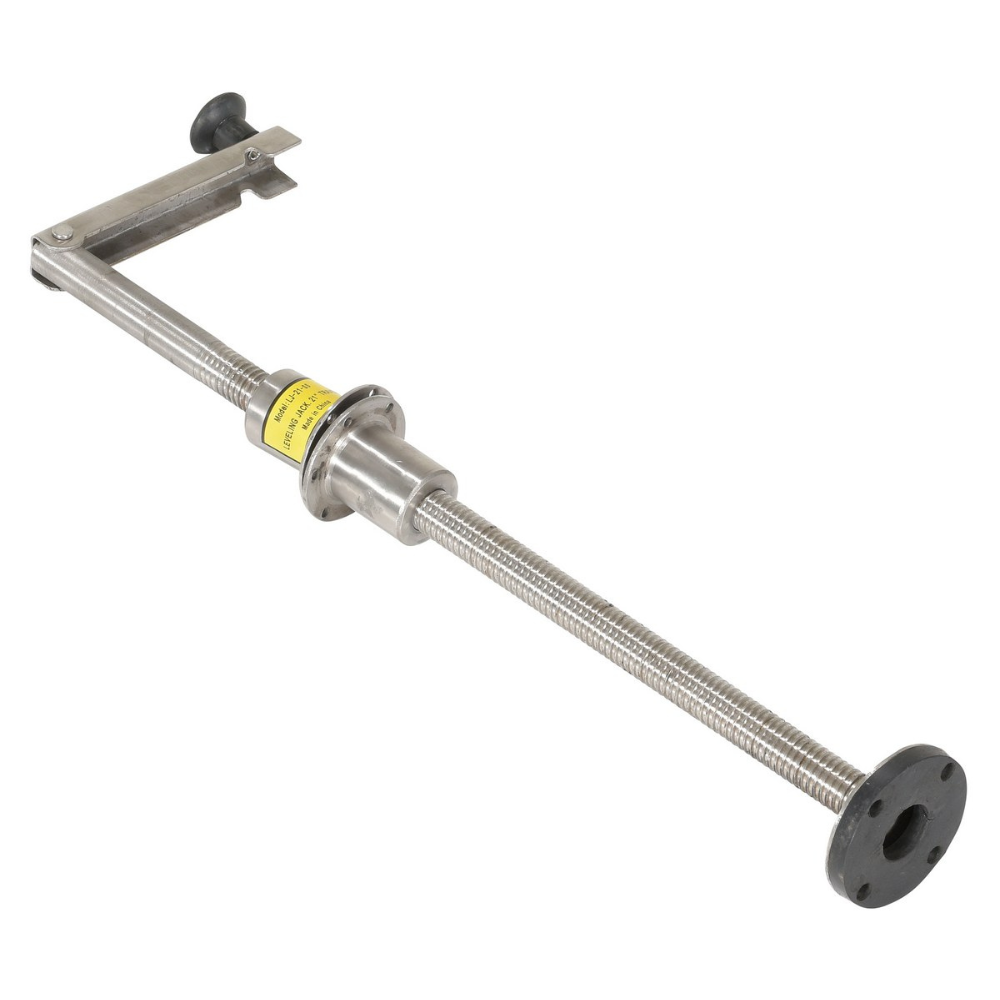

The Vestil LJ-21-SS is a 30-inch screw-style leveling jack built with stainless steel for corrosion resistance and durability in industrial environments.
Designed for permanent installation, it helps raise, level, and stabilize platforms and other portable equipment.
Simply drill a 1-1/4 in. hole through the platform and bolt it between the upper and lower divided-housing flanges of the jack.
The fold-down handle minimizes obstruction when not in use, and the swivel base includes a slip-resistant rubber pad for a secure grip. Replacement pads are available.
  • Model Number: LJ-21-SS
  • Capacity: 5,000 lb (uniform)
  • Holding Capacity: 10,000 lb
  • Minimum Height: 4-1/2 in.
  • Maximum Height: 25-1/2 in.
  • Screw Travel: 21 in.
  • Screw Diameter: 1-1/4 in.
  • Lift Rate per Crank Revolution: 1/4 in.
  • Handle Length: 8-1/2 in.
  • Swivel Base Diameter: 3-7/8 in.
  • Jaw Opening: 15-1/4 in.
  • Thread Size: 4 mm
  • Assembled Dimensions: 9 W × 4.5 D × 30 H in.
  • Assembled Weight: 13 lb
  • Material: Stainless Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
