5,000 Lb. Stainless Steel Leveling Jack – LJ-17-SS – Vestil

SKU: LJ-17-SS
$299.46
Estimated Lead Time:1-3 Days

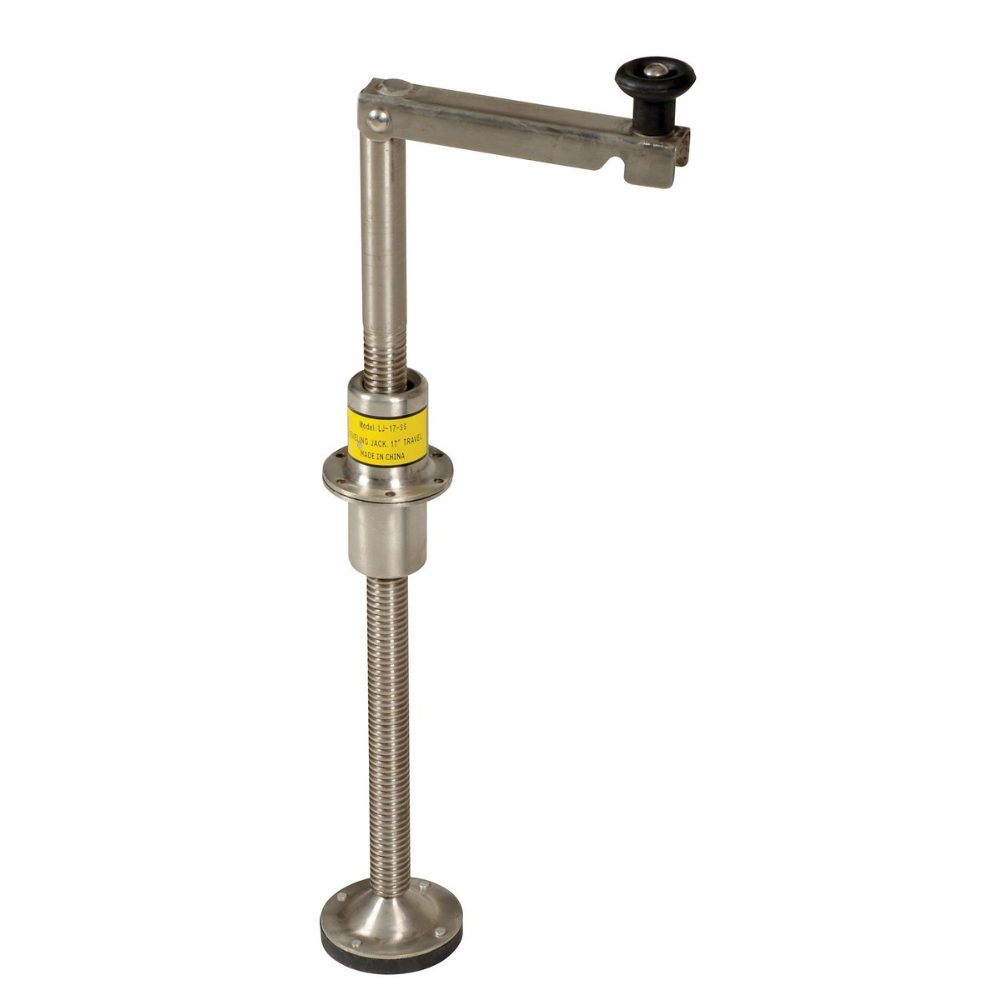

The Vestil LJ-17-SS is a 26-inch screw-style leveling jack made from stainless steel for added durability and corrosion resistance.
It is designed for permanent installation to raise, level, and stabilize platforms or other portable equipment.Drill a 1-1/4 in. hole through the platform and bolt it between the upper and lower divided-housing flanges of the jack.The fold-down handle saves space when not in use, while the swivel base features a slip-resistant rubber pad for extra grip. Replacement pads are available.
  • Model Number: LJ-17-SS
  • Capacity: 5,000 lb (uniform)
  • Holding Capacity: 10,000 lb
  • Minimum Height: 4-1/2 in.
  • Maximum Height: 21-1/2 in.
  • Screw Travel: 17 in.
  • Screw Diameter: 1-1/4 in.
  • Lift Rate per Crank Revolution: 1/4 in.
  • Handle Length: 8-1/2 in.
  • Swivel Base Diameter: 3-7/8 in.
  • Jaw Opening: 11-1/4 in.
  • Thread Size: 4 mm
  • Assembled Dimensions: 9 W × 4.5 D × 26 H in.
  • Assembled Weight: 12 lb
  • Material: Stainless Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
