5,000 Lb. Stainless Steel Leveling Jack – LJ-9-SS - Vestil

SKU: LJ-9-SS
$253.34
Estimated Lead Time:1-3 Days

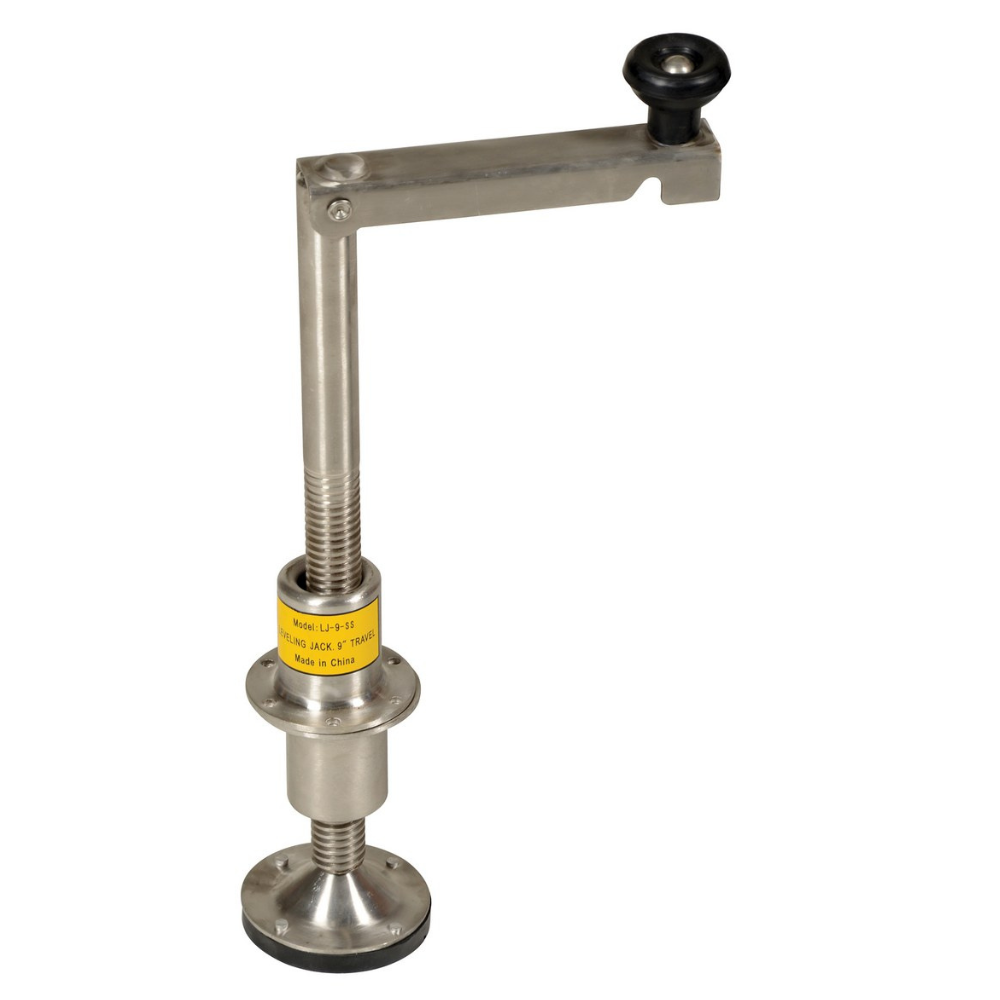

The Vestil LJ-9-SS is a compact 18-inch screw-style leveling jack designed for permanent installation on platforms or other equipment that requires precise leveling and stabilization.
To install, drill a 1-1/4 in. hole through the platform and bolt it between the upper and lower flanges of the jack’s divided housing.
Its fold-down handle keeps the work area clear when not in use, while the swivel base features a slip-resistant rubber pad that improves floor grip and helps protect surfaces. Replacement pads are available.
  • Model Number: LJ-9-SS
  • Capacity: 5,000 lb (uniform)
  • Holding Capacity: 10,000 lb
  • Minimum Height: 4-1/2 in.  
  • Maximum Height: 13-1/2 in.
  • Screw Travel: 9 in.  
  • Lift per Crank Revolution: 1/4 in.
  • Handle Length: 8-1/2 in.
  • Screw Diameter: 1-1/4 in.
  • Swivel Base Diameter: 3-7/8 in.  
  • Jaw Opening: 3-1/4 in.
  • Assembled Size: 9 W × 4.5 D × 18 H in.
  • Assembled Weight: 11 lb
  • Material: Stainless Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
