Stainless Steel Left Mount Hand Operated Floor Lock– FL-LK-SMR-SS-L - Vestil

SKU: FL-LK-SMR-SS-L
$291.54
Estimated Lead Time:1-3 Days

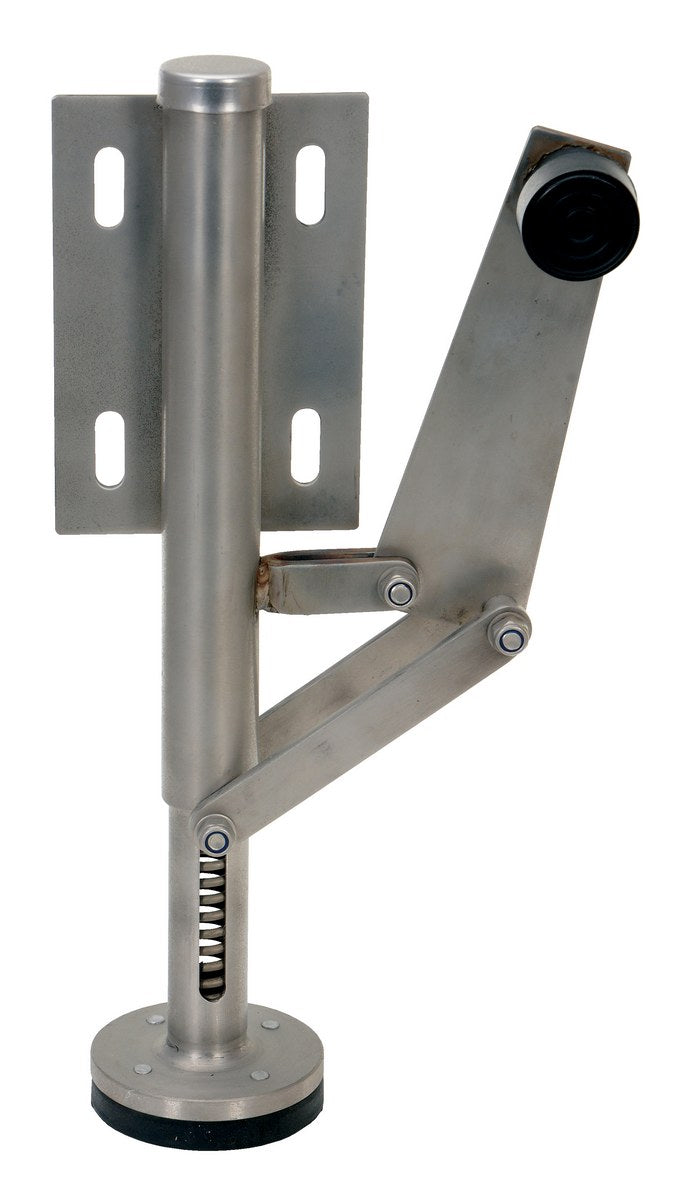

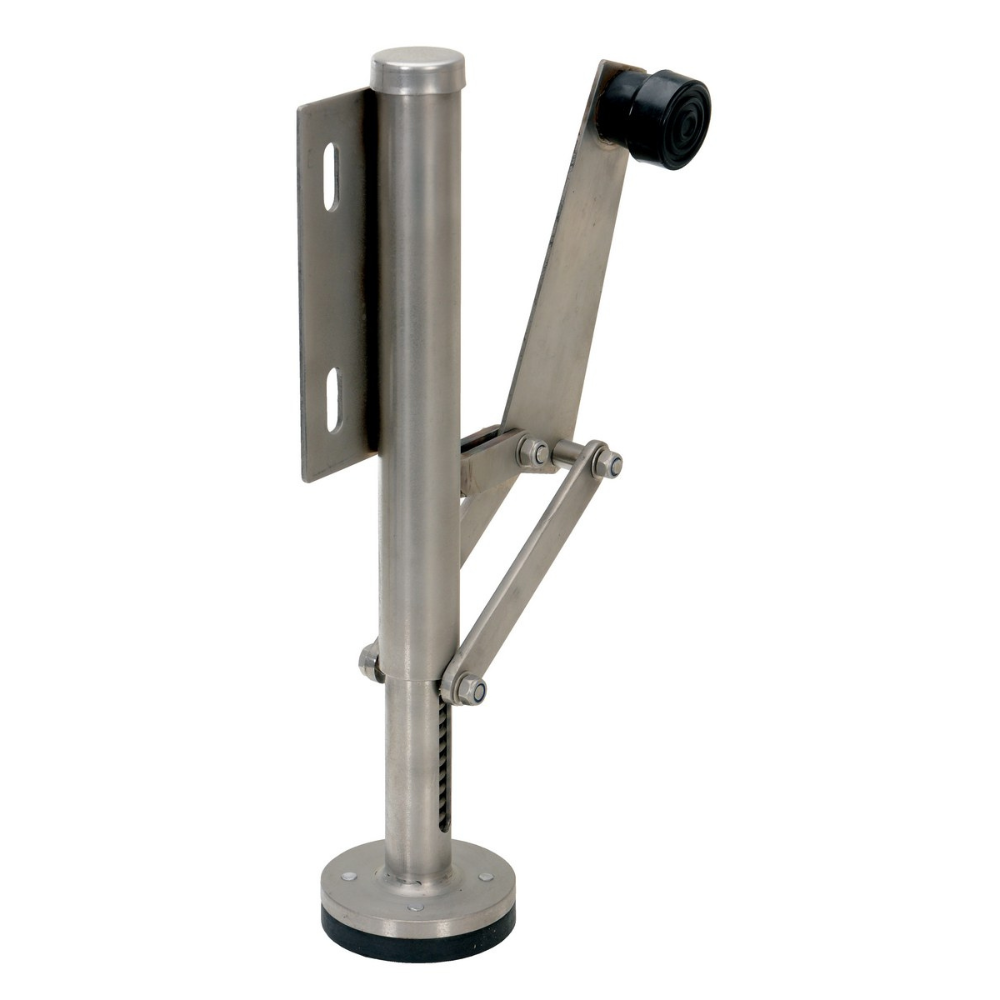

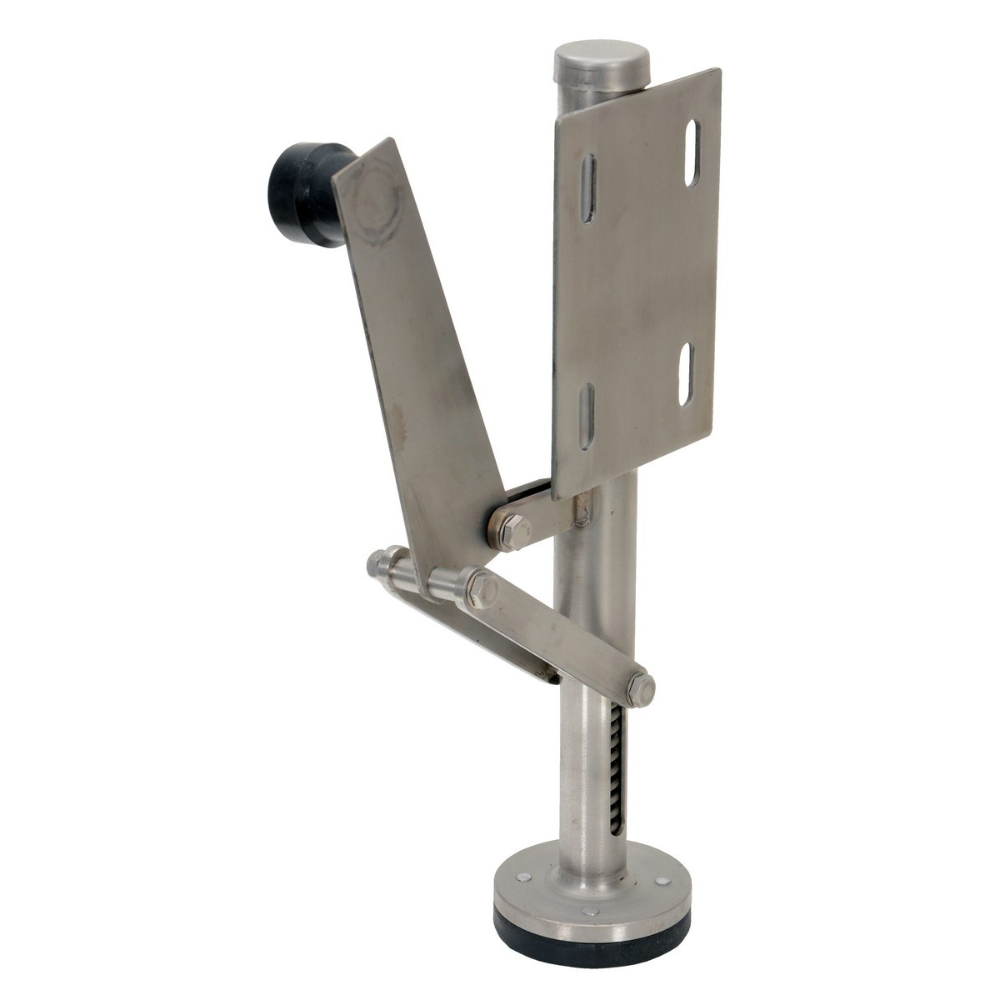

The Vestil FL-LK-SMR-SS-L is a hand-operated, left-side mount floor lock made of stainless steel for superior durability and corrosion resistance. It is ideal for platform trucks, fixture dollies, or other castered equipment. The lock engages when the friction pad is lowered by hand, and releases easily by hand. The spring-loaded pad adjusts for uneven floors, while the independent brake system allows flexible installation.
  • Model Number: FL-LK-SMR-SS-L
  • Extended Height: 18"
  • Retracted Height: 15-15/32"
  • Mounting Height Range: 10–12"
  • Pad Mounting Height (Retracted): 1-1/2"
  • Plate Width / Height: 4-1/2" × 6-1/2"
  • Mounting Bolt Diameter: 3/8"
  • Mounting Plate Thickness: 1/8"
  • Slotted Mounting Hole (W × H): 13/32" × 13/16"
  • Inside Bolt Hole Spacing: 2-29/32" × 3-1/4"
  • Outside Bolt Hole Spacing: 2-29/32" × 4-3/4"
  • Assembled Dimensions (W × D × H): 8.3125" × 3.6563" × 18"
  • Assembled Weight: 7 lb  
  • Material: Stainless Steel

Warranty (PDF)

Manufacturer Warranty: 30 Days (Limited – Parts)
