Stainless Steel Adjustable Floor Lock – FL-ADJ-810-SS - Vestil

SKU: FL-ADJ-810-SS
$199.56
Estimated Lead Time:1-3 Days

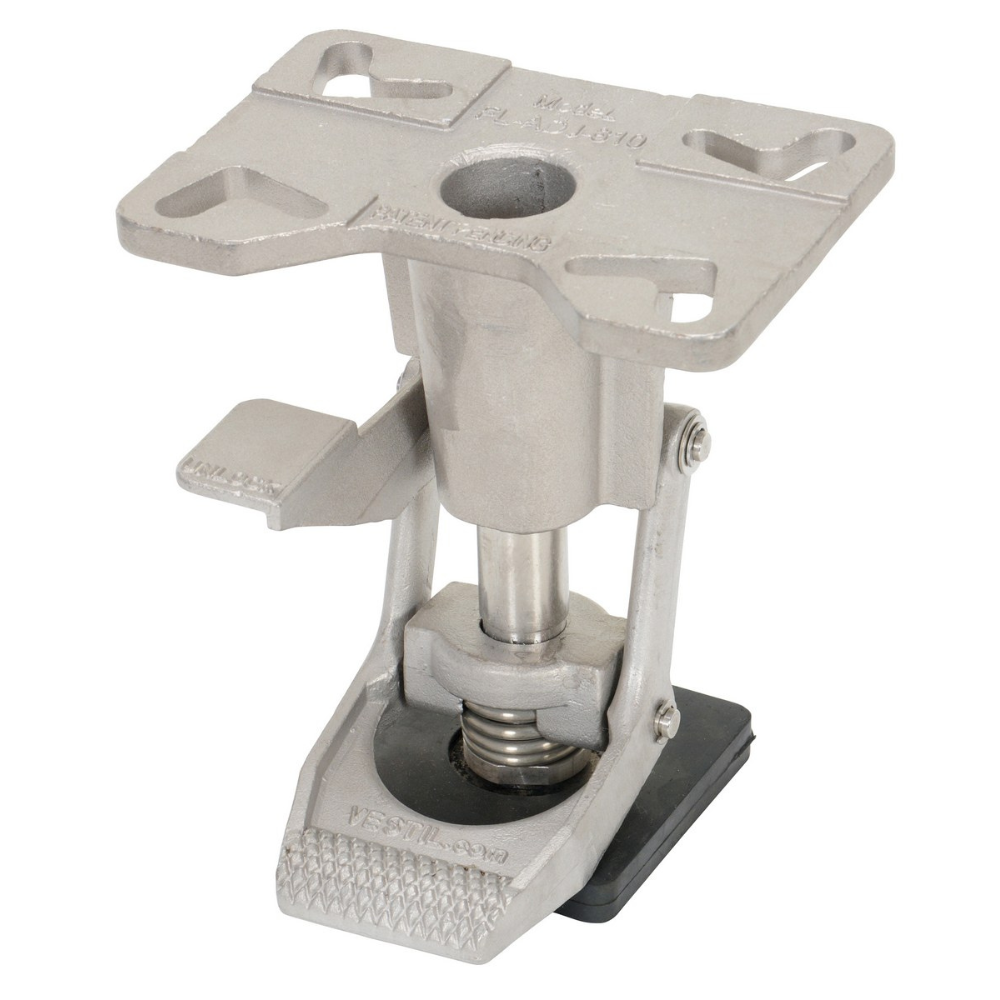

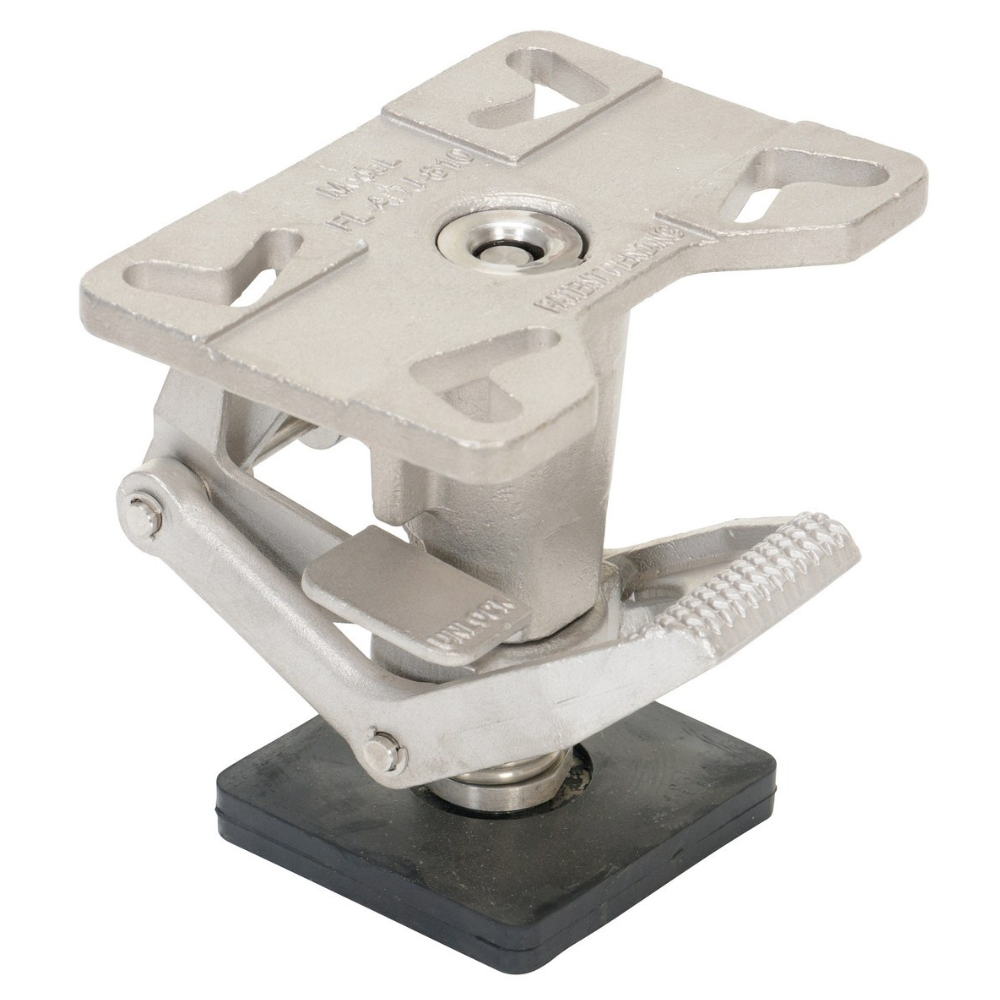

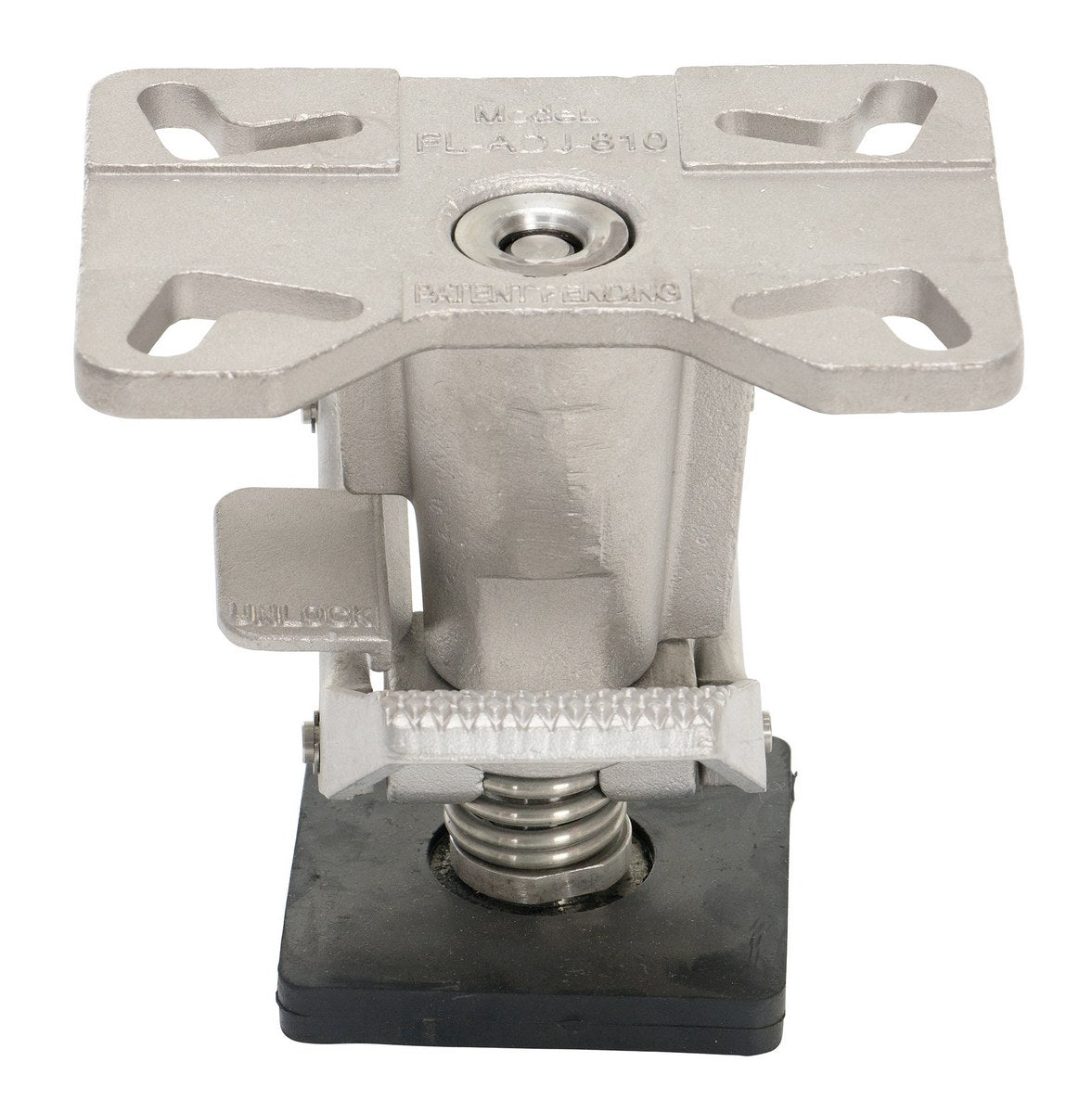

The Vestil FL-ADJ-810-SS is a 304 stainless steel adjustable floor lock ideal for carts with casters of varying heights. It features an adjustable foot pad that maintains uniform locking and safer unlocking force for improved ergonomic operation. The pad can be height-adjusted by turning the bottom pad and includes suction cups for a secure grip on the floor. This design helps the lock stay effective as springs and pads wear over time.
  • Model Number: FL-ADJ-810-SS
  • Extended Height: 8-1/4 to 11-1/2 in.
  • Retracted Height: 6-1/4 to 9-1/2 in.
  • Top Plate (W × L): 4-1/2 × 6-1/2 in.
  • Mounting Plate Thickness: 3/8 in.
  • Mounting Bolt Diameter: 3/8 in. or 1/2 in.
  • Inside Bolt-Hole Spacing: 2-3/16 × 3 in.
  • Outside Bolt-Hole Spacing: 3-1/2 × 5-1/4 in.
  • Assembled Size (W × D × H): 6.6875 × 6.5 × 11.5 in.
  • Assembled Weight: 8 lb
  • Material: 304 Stainless Steel

Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days (Limited – Parts)
