Stainless Steel Adjustable Floor Lock – 6-1/4 to 8 In. Height – FL-ADJ-46-SS - Vestil

SKU: FL-ADJ-46-SS
$188.20
Estimated Lead Time:1-3 Days

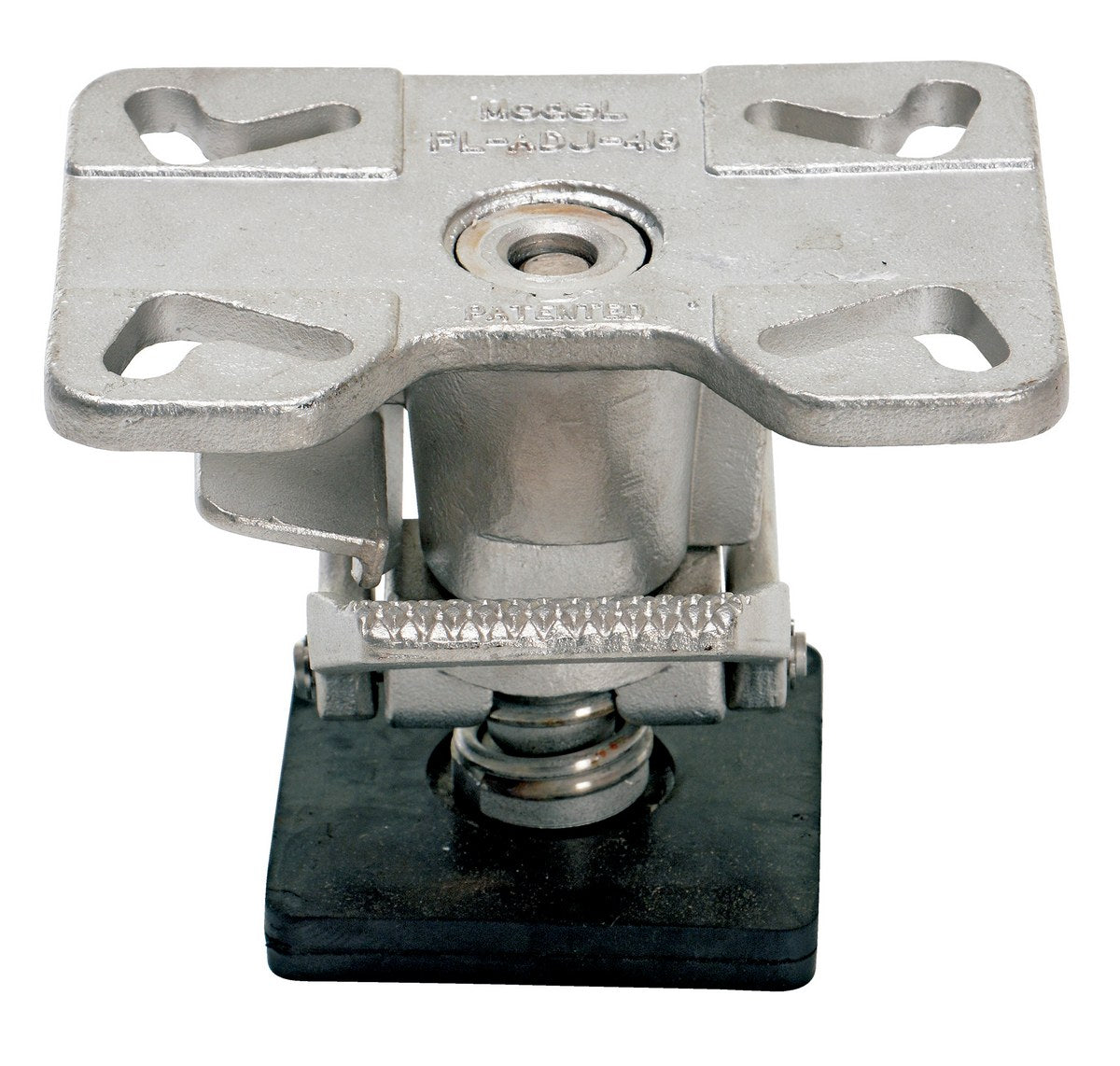

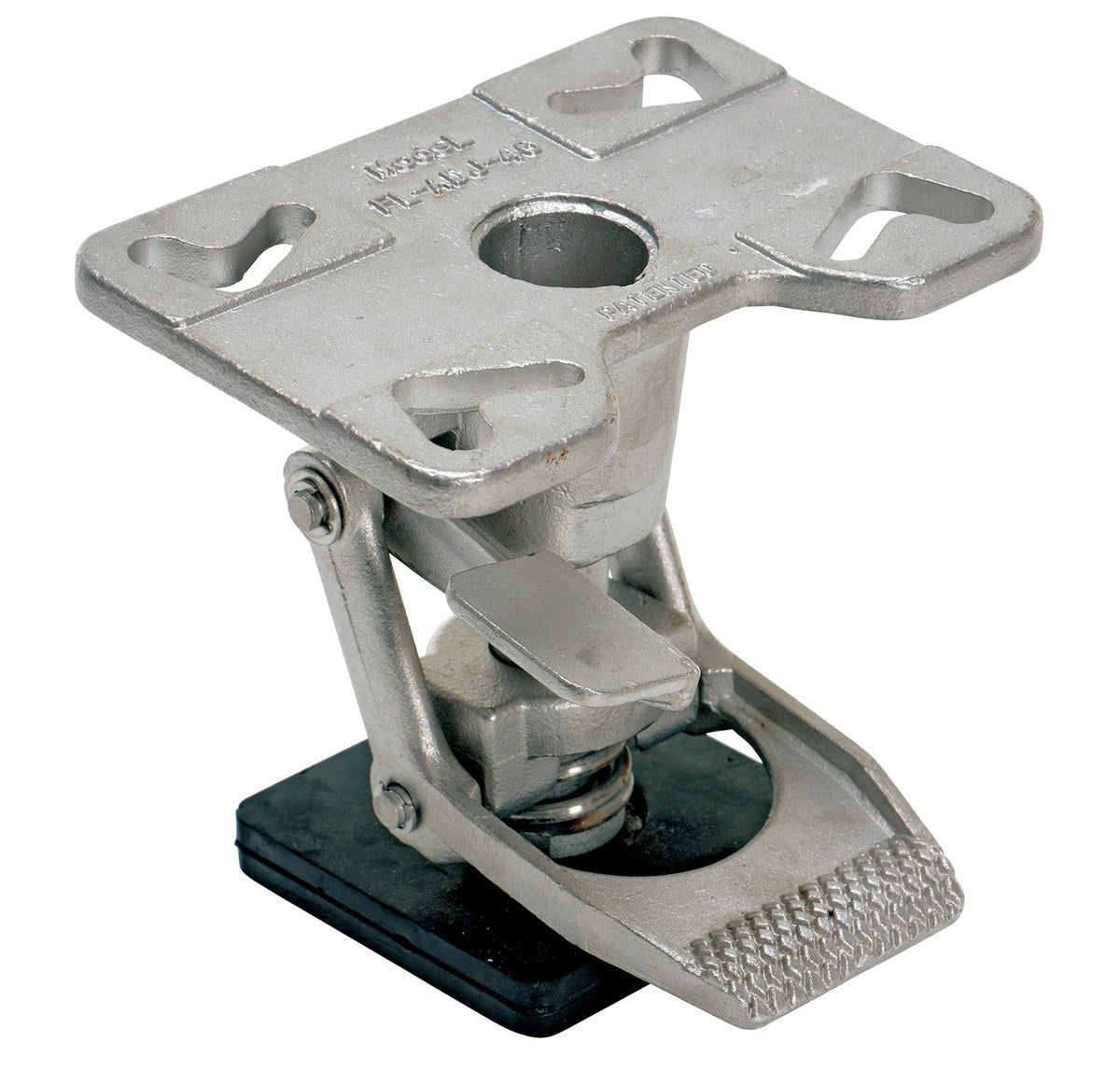

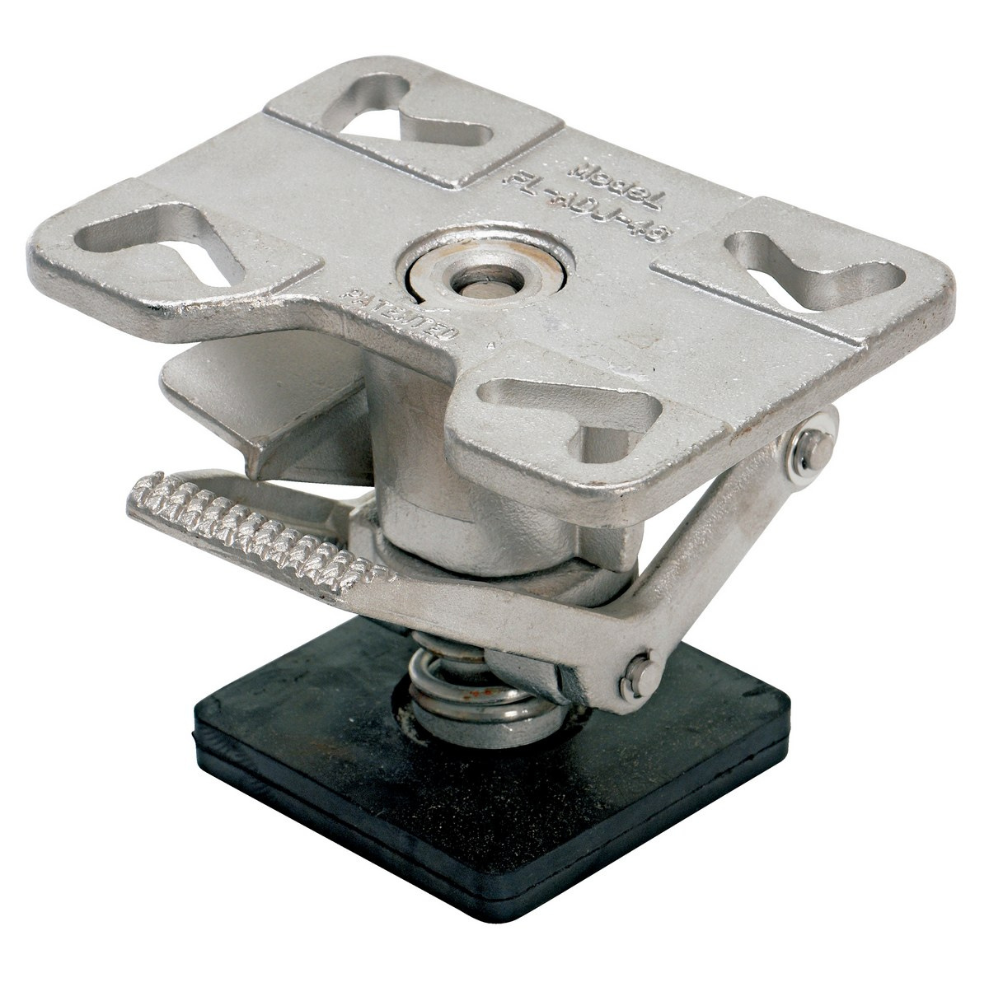

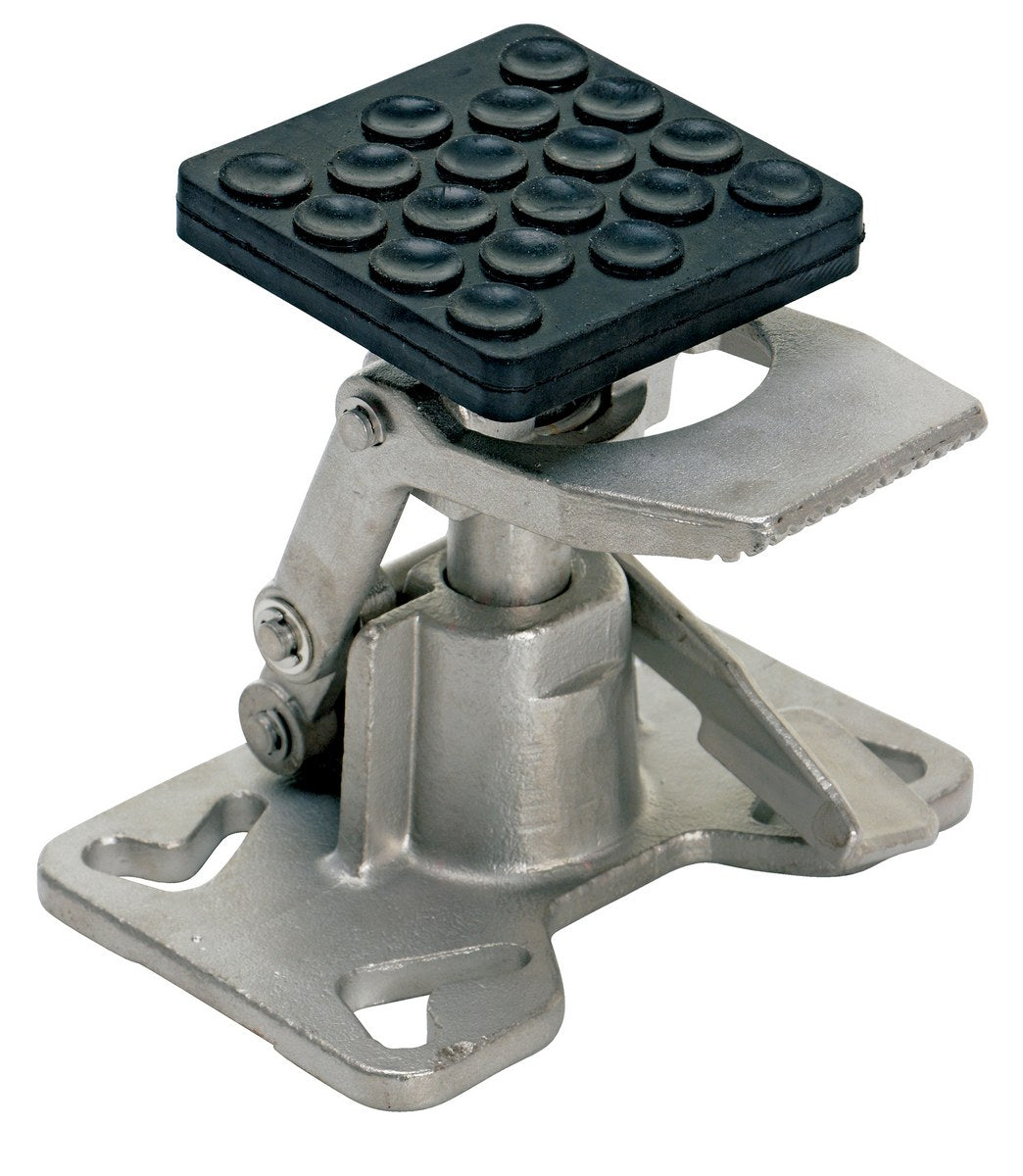

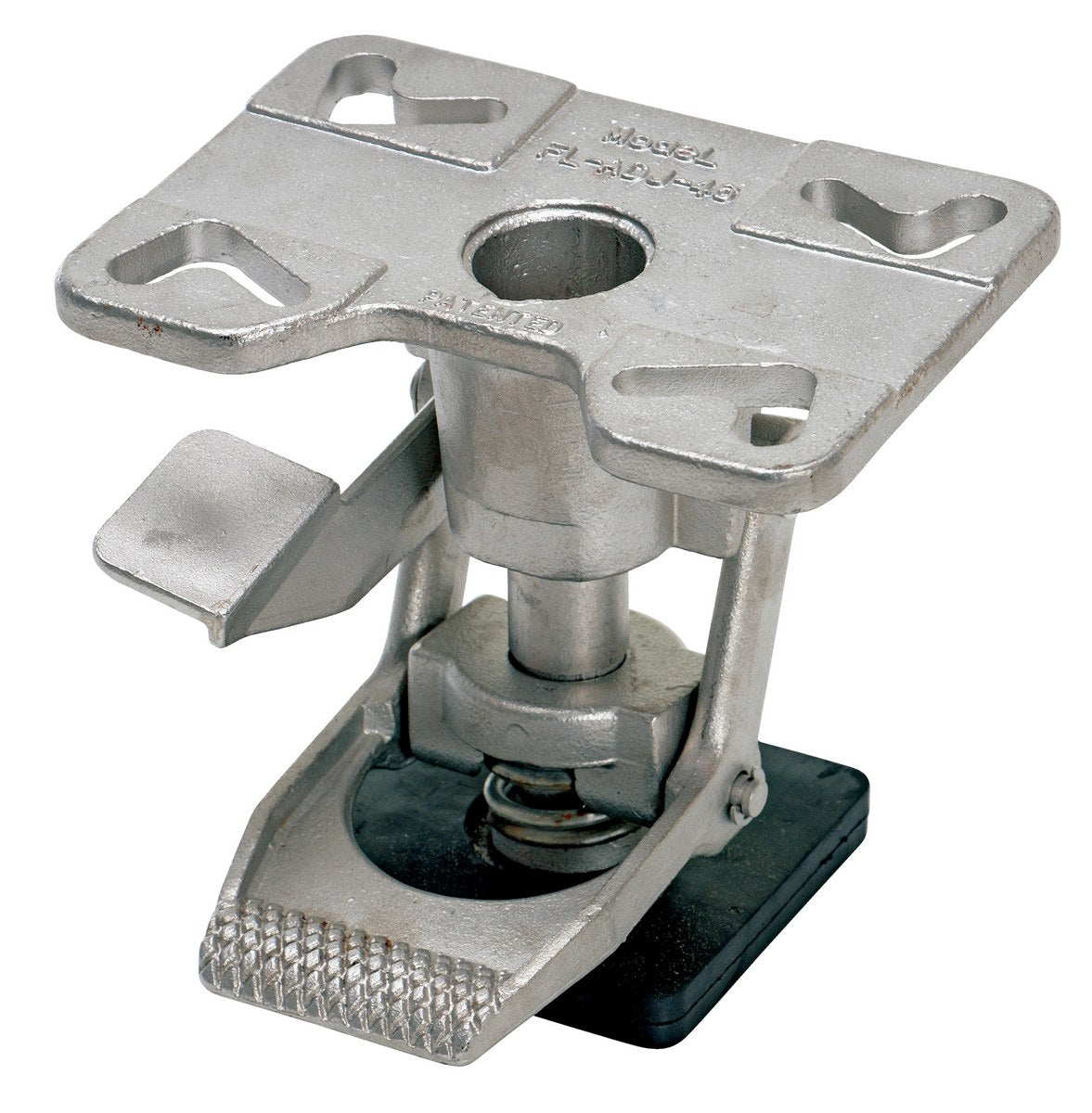

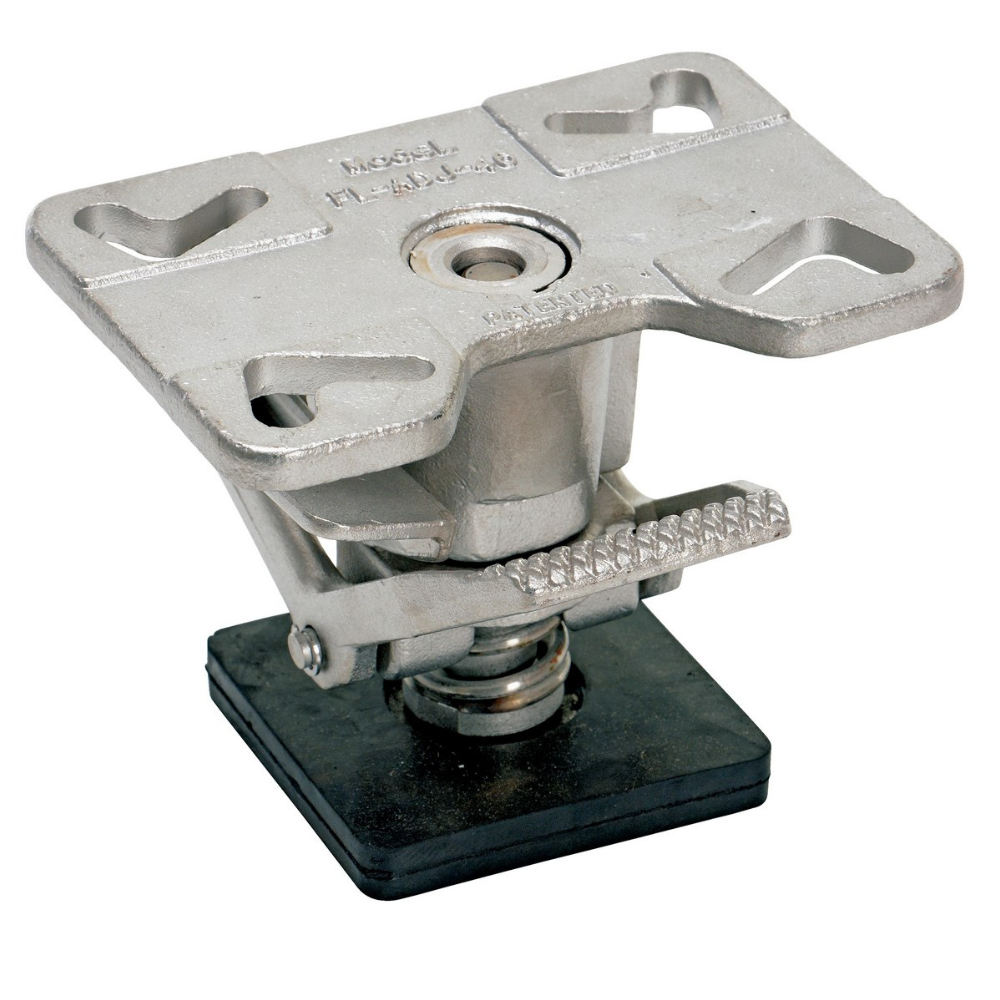

The Vestil FL-ADJ-46-SS is a stainless steel adjustable floor lock designed for platform trucks, fixture dollies, or other castered equipment. It features a height-adjustable foot pad that works on carts with varying caster heights. This design ensures uniform locking and safer unlocking force, enhancing ergonomics and maintaining proper function as springs and pads wear over time. The bottom pad includes suction cups for extra grip and stability.
  • Model Number: FL-ADJ-46-SS
  • Extended Height: 6-1/4 to 8"
  • Retracted Height: 5-1/2 to 7-1/4"
  • Used with Caster Size: 4 to 6"
  • Top Plate Width / Length: 4-1/2" × 6-1/2"
  • Mounting Bolt Diameter: 3/8"
  • Mounting Plate Thickness: 3/8"
  • Assembled Dimensions (W × D × H): 5.625" × 6.5" × 8"
  • Assembled Weight: 7 lb
  • Material: 304 Stainless Steel

Manual (PDF)
Warranty (PDF)

Manufacturer Warranty: 90 Days (Limited – Parts)
