Home » Single Socket Tee Square - EFSQ03G - Easyfit
Easyfit

Single Socket Tee Square - EFSQ03G - Easyfit

SKU: EFSQ03G-25
$10.30
Size
Estimated Lead Time:3 to 5 Days

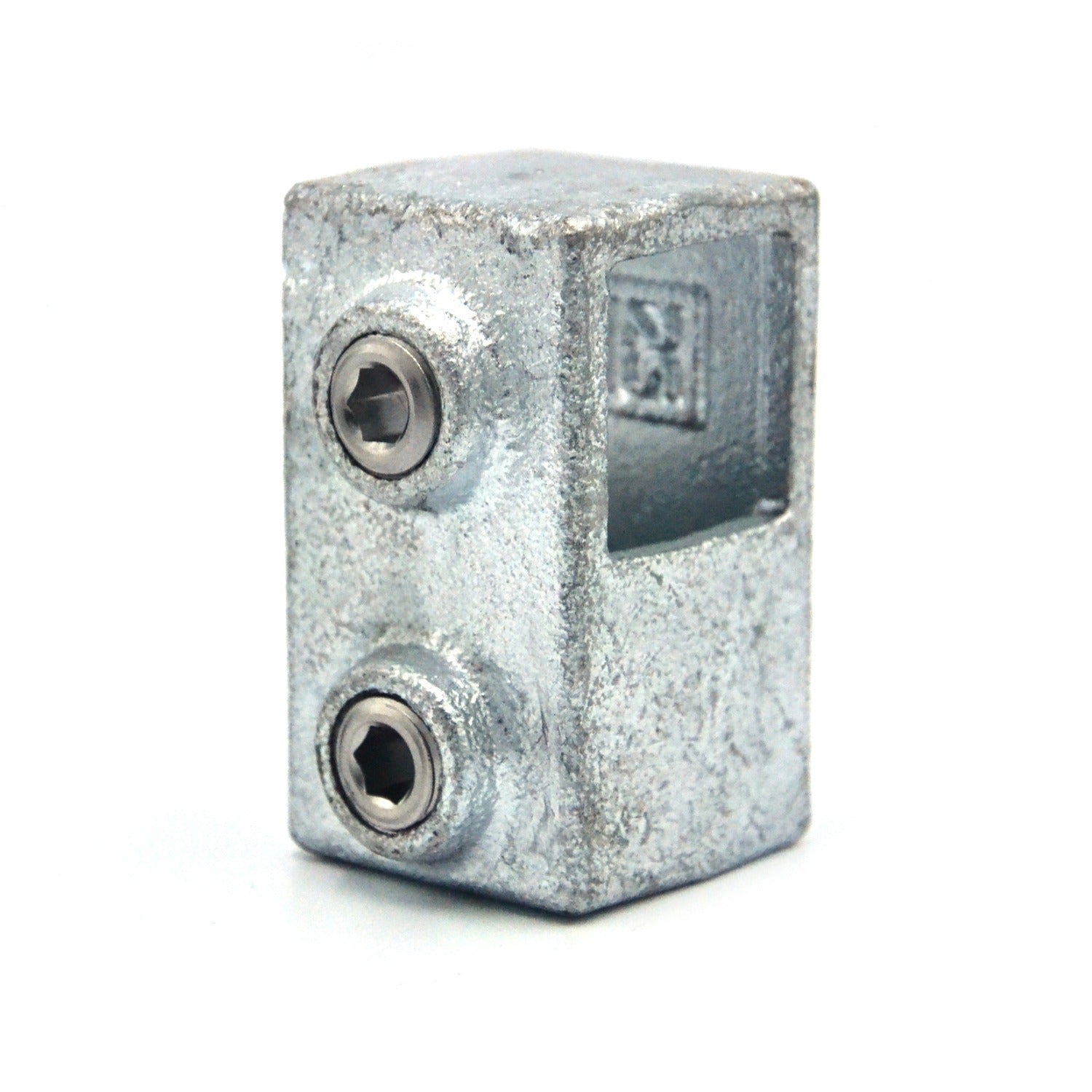

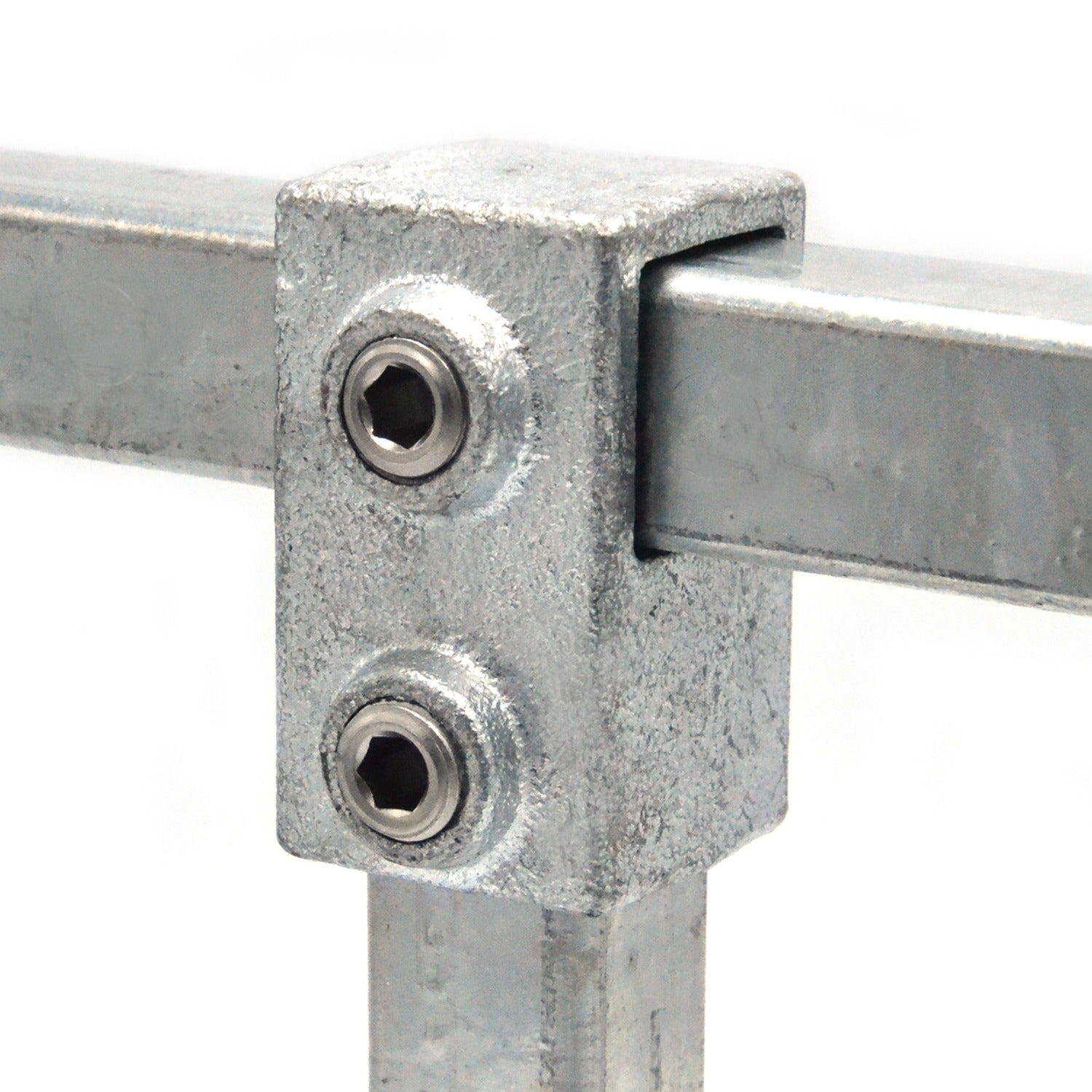

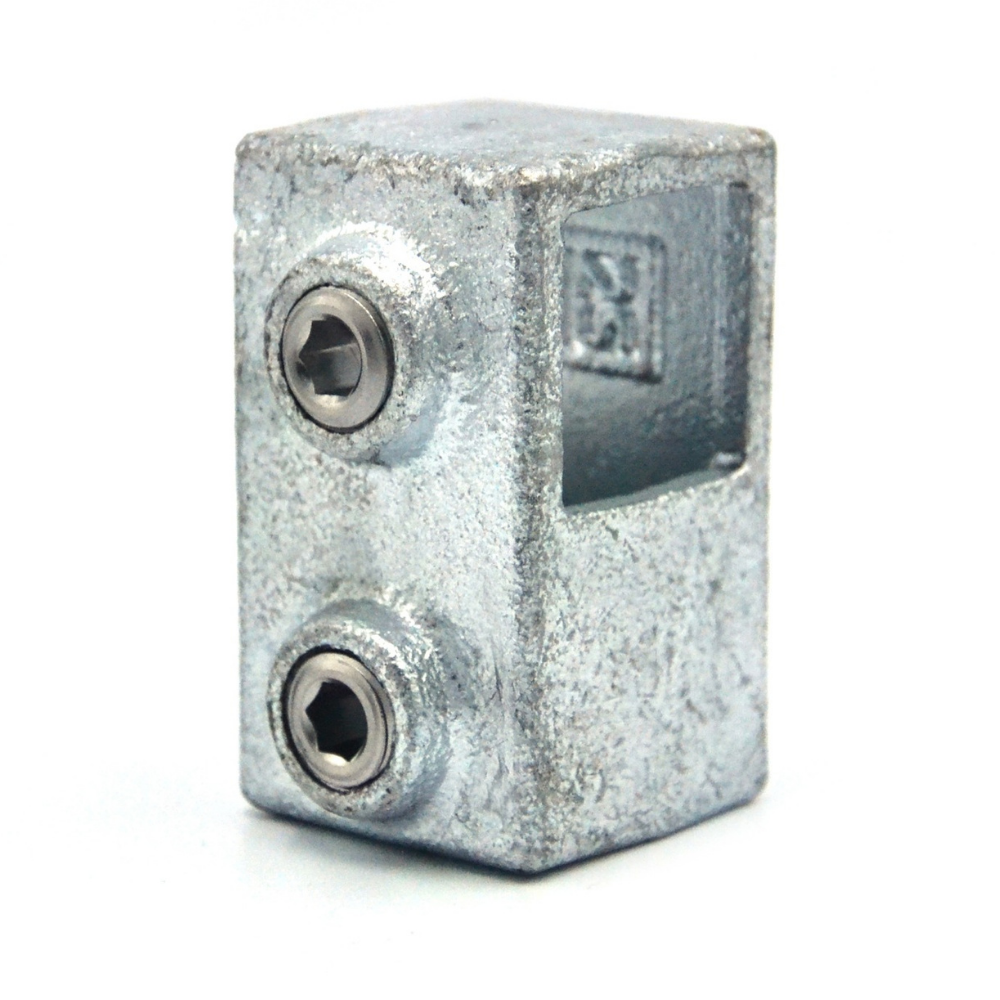

The Easyfit Single Socket Tee – Square fitting creates a 90-degree connection between two square tubes. One tube can pass completely through the fitting for horizontal alignment, while the socket secures a perpendicular vertical tube. This makes it ideal for framing, support structures, or modular assemblies using square tubing.

Constructed from galvanized cast iron and equipped with steel set screws, the fitting is designed for easy installation with just an allen wrench—no welding required. It is compatible with 25 mm or 40 mm steel galvanized square tubing of 2 mm wall thickness, making it suitable for both indoor and outdoor use.
  • Forms 90-degree connection between square tubes
  • Horizontal tube passes through for adjustable alignment
  • Vertical socket secures upright tube
  • Only requires an allen wrench for installation
  • Indoor and outdoor use
  • No welding needed
  • Compatible with 25 mm or 40 mm square galvanized tube (2 mm wall)
  • Includes steel set screws for secure connection
  • Galvanized cast iron for durability and corrosion resistance
