Side Outlet Elbow Square - EFSQ20G - Easyfit

SKU: EFSQ20G-25
$19.40
Size
Estimated Lead Time:3 to 5 Days

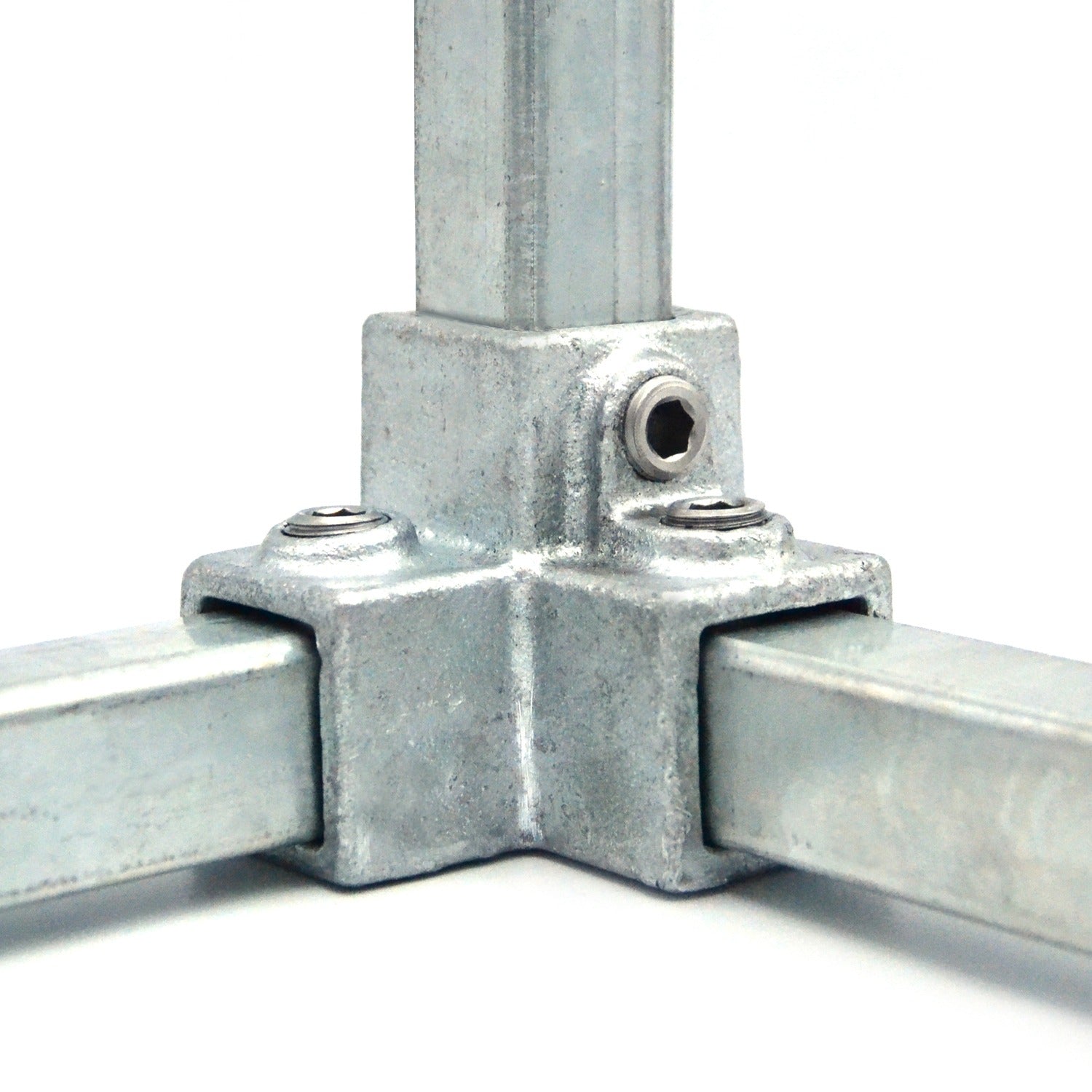

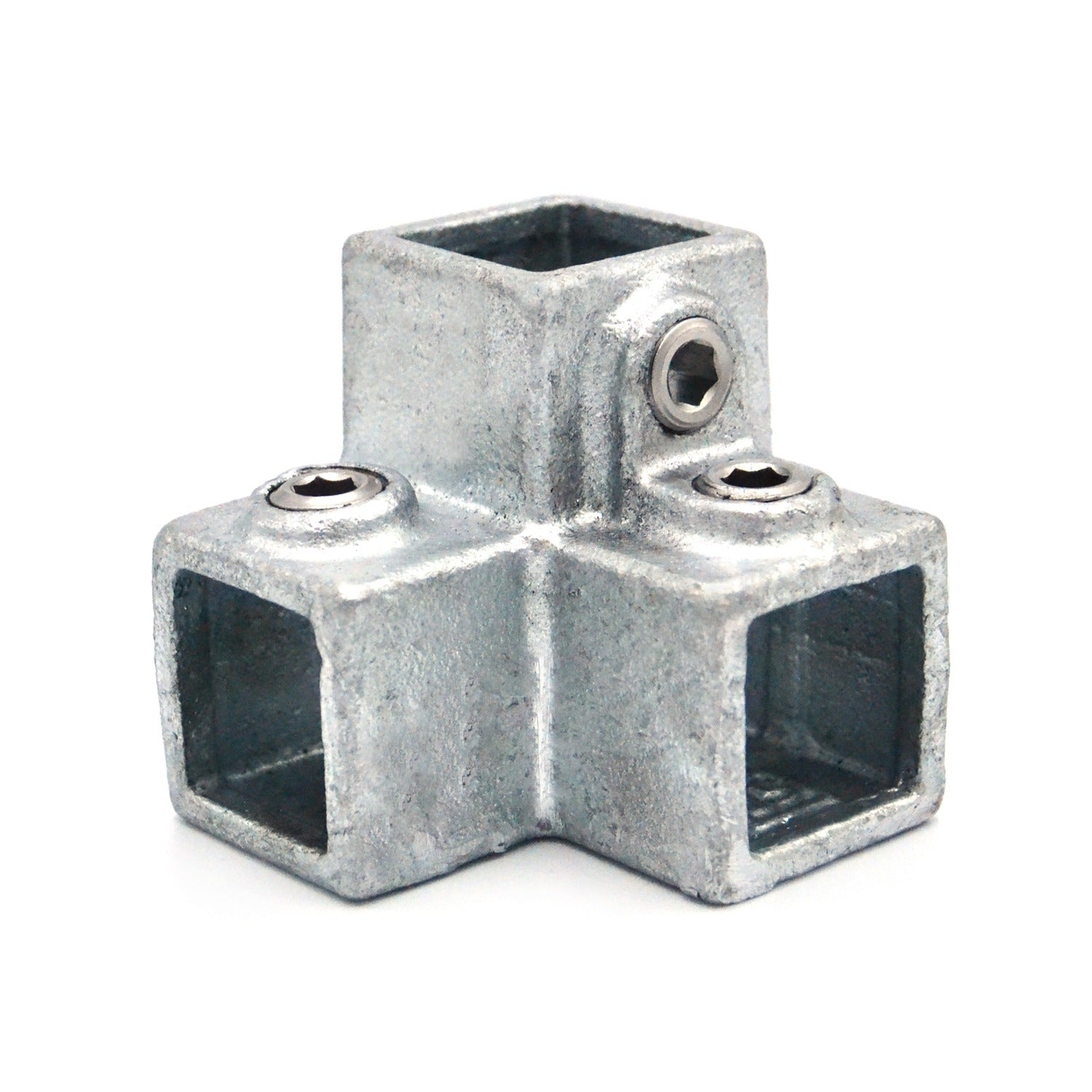

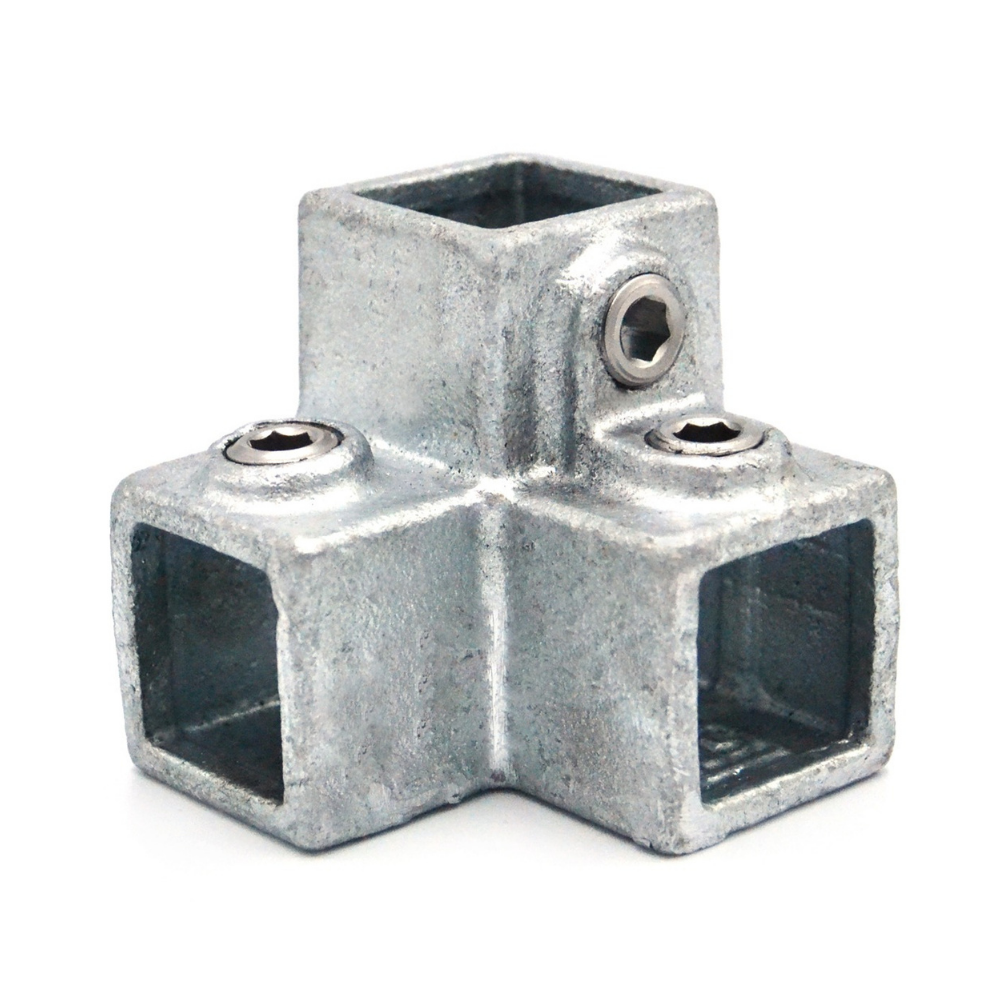

The Easyfit Side Outlet Elbow – Square (EFSQ20G) is a three-socket corner fitting designed to connect two top rails at a 90-degree angle to a vertical post. Commonly used in square-tube guardrails, handrails, and safety railing systems, it’s also ideal for forming box-like corners in square pipe-based structures.

Compatible with 25 mm or 40 mm galvanized square tubing of 2 mm wall thickness, the fitting installs quickly with a standard allen wrench and includes steel set screws for a secure connection.
  • Creates 90° corner joint with three square tube connections
  • Ideal for guardrails, handrails, and structural frameworks
  • Only requires an allen wrench for installation
  • Indoor and outdoor use
  • No welding needed
  • Compatible with 25 mm or 40 mm square galvanized tube (2 mm wall)
  • Includes steel set screws for secure connection
  • Galvanized cast iron for durability and corrosion resistance
