Home » RUH82 Series Single Stage Acetylene Regulator, 2 to 15 PSIG Delivery Pressure, CGA 510 Connection - Uniweld
Uniweld

RUH82 Series Single Stage Acetylene Regulator, 2 to 15 PSIG Delivery Pressure, CGA 510 Connection - Uniweld

SKU: 867-RUH8211G
$131.81
Estimated Lead Time:Typically Ships in 1 to 2 days

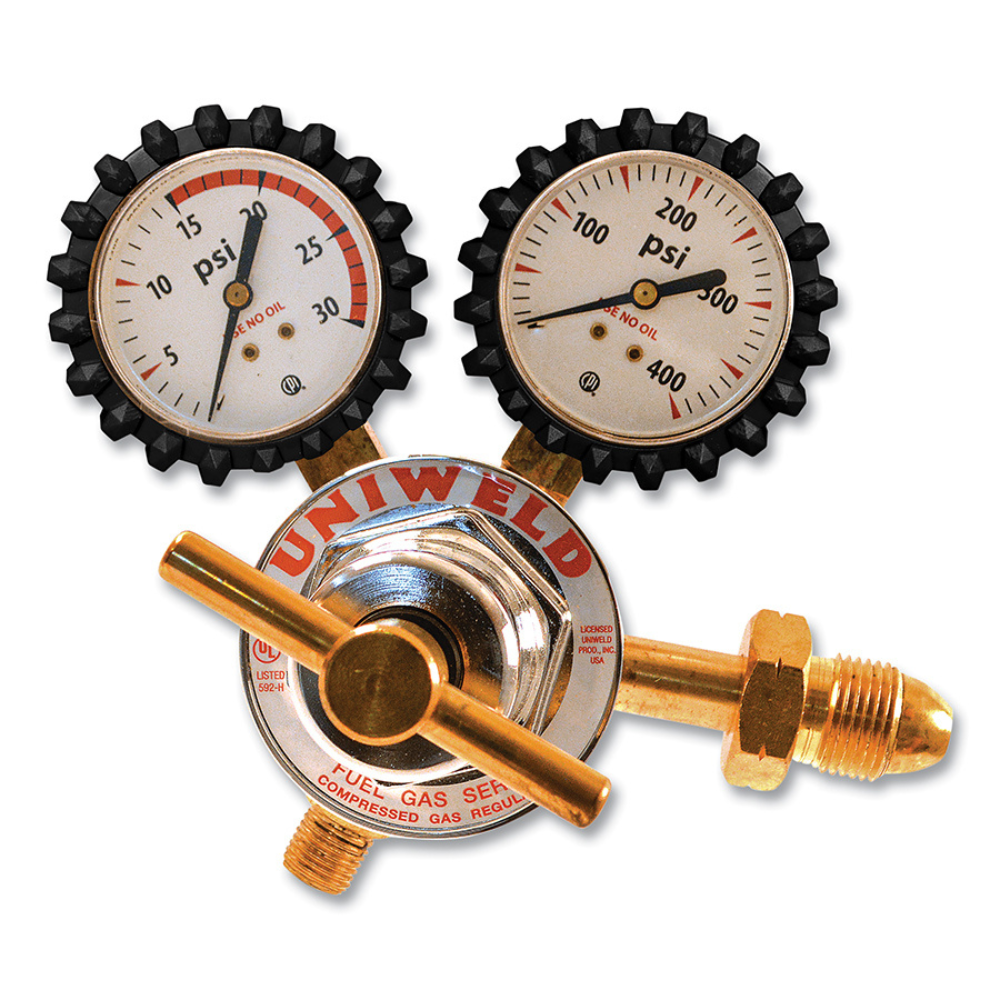

The Uniweld RUH82 Series Single Stage Acetylene Regulator is designed for cutting and welding applications requiring reliable gas pressure control. Constructed with a machined brass body and polished chrome bonnet, it is built to withstand demanding shop and field conditions.

This regulator features easy-to-read 2 in single-scale gauges, a 2 in tri-layer reinforced neoprene diaphragm, and a heavy-duty mechanical stem-type seat and nozzle assembly. A Delrin bushing provides smooth flow adjustment, while porous metal and fine mesh filtration help protect internal components from contaminants.

The regulator includes protective rubber gauge boots and a pressure relief device for low-pressure gauge protection.
  • Brand: Uniweld
  • Series: RUH82
  • Style: Medium-Heavy Duty Single Stage Regulator
  • Gas Type: Acetylene
  • Application: Cutting
  • Application: Welding
  • Inlet Connection: CGA 510
  • Outlet Connection: B (LH) 9/16 in-18 (M)
  • Inlet Pressure Max: 3000 PSIG
  • Outlet Pressure Range: 2 to 15 PSIG
  • Maximum Flow Capacity: 6300 SCFH
  • Gauge Size: 2 in
  • Diaphragm Size: 2 in
  • Diaphragm Material: Neoprene
  • Body Material: Brass
  • Filter Material: Porous Metal
  • Filter Material: Fine Mesh
  • Handle Type: T-Handle
  • Includes: Protective Rubber Gauge Boots
  • Made in the USA
