Rotating Bolt-On D-Ring Anchor with Bolt & Nut, 10k – 7393BS – FallTech

SKU: 7393BS
Regular price $85.60
Estimated Lead Time:3 to 5 days

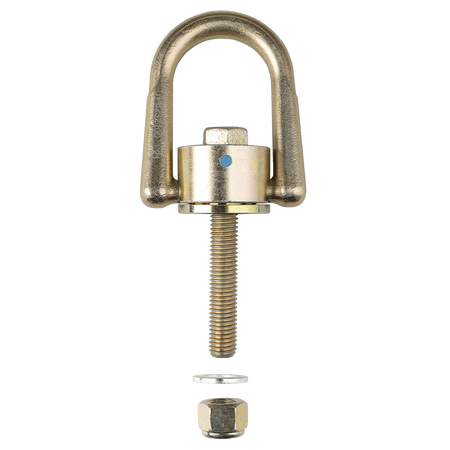

The FallTech 7393BS Rotating Bolt-On D-Ring Anchor delivers secure, flexible anchorage with a full 360° rotation and 180° pivoting action, ensuring optimal alignment with worker movement. This heavy-duty anchor includes a Grade 8 installation bolt and nut for secure mounting to properly rated structures. Built from plated alloy steel, the D-ring offers rugged durability and supports a 10,000 lb static strength, making it suitable for demanding fall protection applications.
Rated for both ANSI and OSHA user capacities, the anchor is ideal for permanent or semi-permanent installation at worksites requiring reliable tie-off points. The 7393BS meets ANSI Z359.18-2017 and OSHA 1926.502/1910.66 standards.

  • Product Code: 7393BS
  • Material: Plated alloy steel
  • Rotation/Pivot: 360° rotation, 180° pivot
  • Static Strength: 10,000 lb
  • Includes: Grade 8 bolt and nut
  • User Capacity (ANSI): 130–310 lb
  • User Capacity (OSHA): 130–425 lb
  • Compliance: ANSI Z359.18-2017; OSHA 1926.502 & 1910.66
  • Weight: 1.6 lbs each
