Home » Reusable D-Ring Plate Anchor for Wood – 7493B1 – FallTech
Falltech

Reusable D-Ring Plate Anchor for Wood – 7493B1 – FallTech

SKU: 7493B1
$54.80
Estimated Lead Time:1 to 2 Days

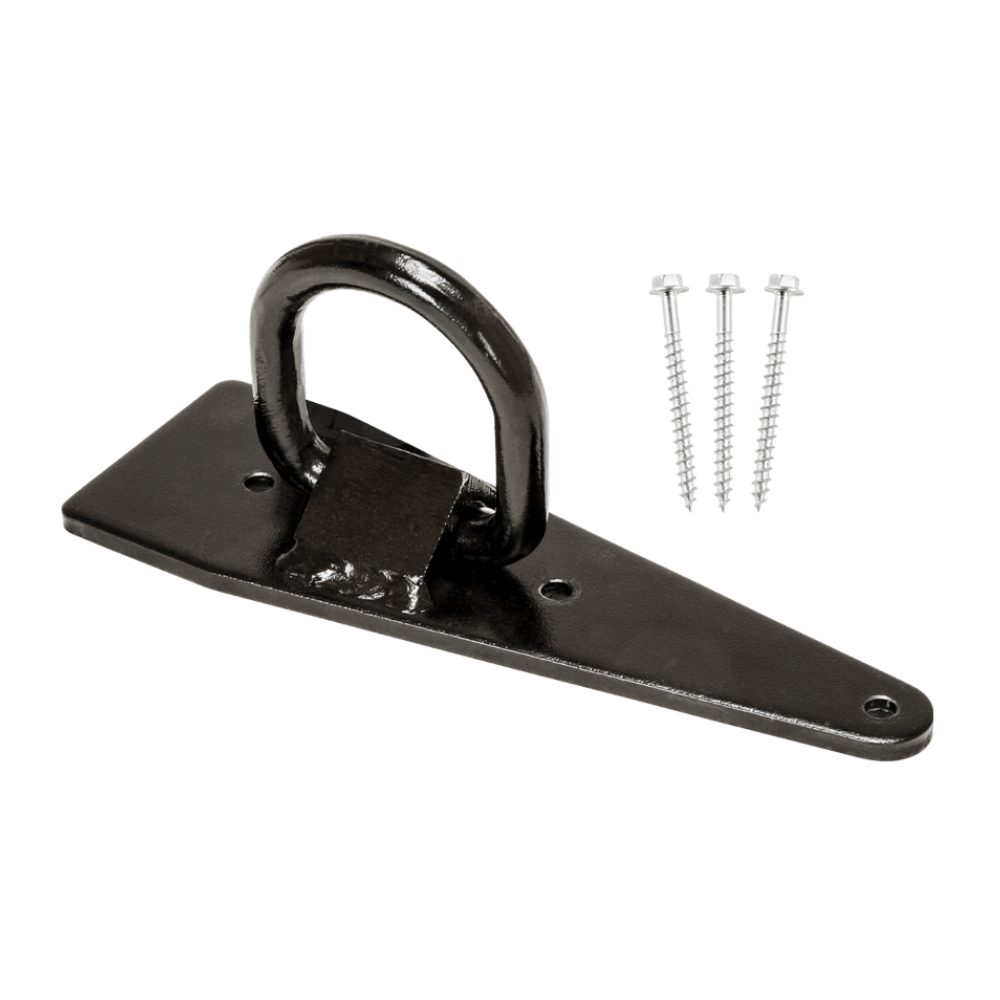

The FallTech 7493B1 Reusable D-Ring Plate Anchor provides a strong, temporary anchorage solution for wood structures during roofing, framing, and construction work. Built with a durable 9" × 3" powder-coated carbon steel anchoring plate and a 2-1/4" alloy steel D-ring, this anchor is engineered to withstand demanding jobsite conditions. It includes 3" Grade 5 lag screws for secure ridge or field installation. Designed for repeated use, the anchor supports workers up to 425 lb under OSHA regulations and meets all applicable safety standards.
  • Product Code: 7493B1
  • Plates: Powder-coated carbon steel
  • D-ring: Coated alloy steel; 5,000 lb min static strength
  • Static Strength: 5,000 lb min
  • User Capacity: ANSI 130–310 lb / OSHA 130–425 lb
  • Compliance: OSHA 1926.502 & 1910.66
  • Weight: 2.5 lbs

User Manual (PDF)
