Railing Base Flange - EF12G - Easyfit

SKU: EF12G-25
$15.10
Size
Estimated Lead Time:3 to 5 Days

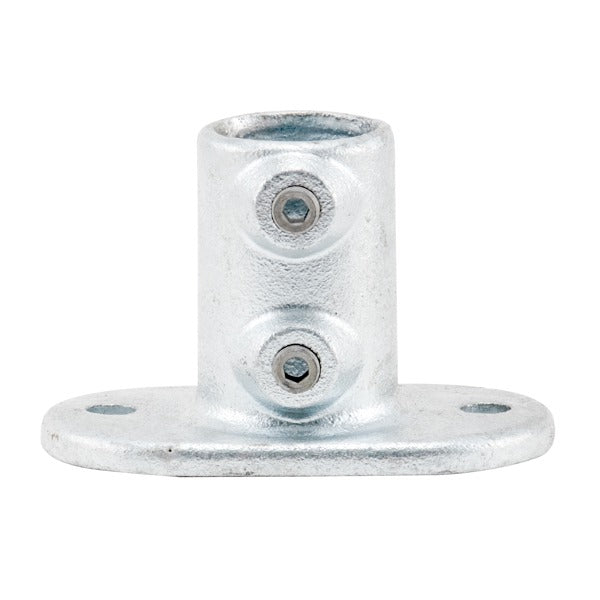

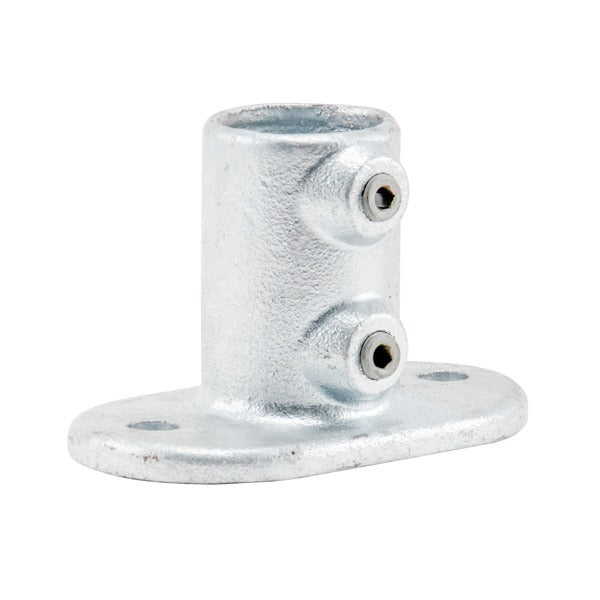

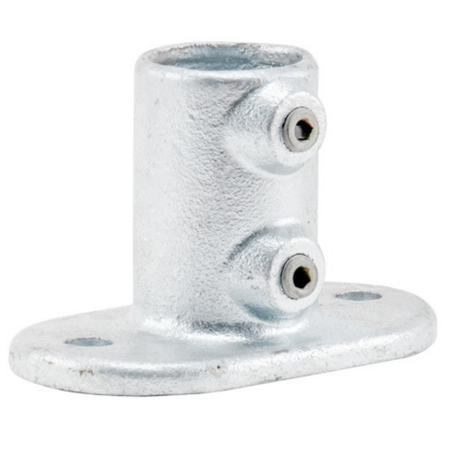

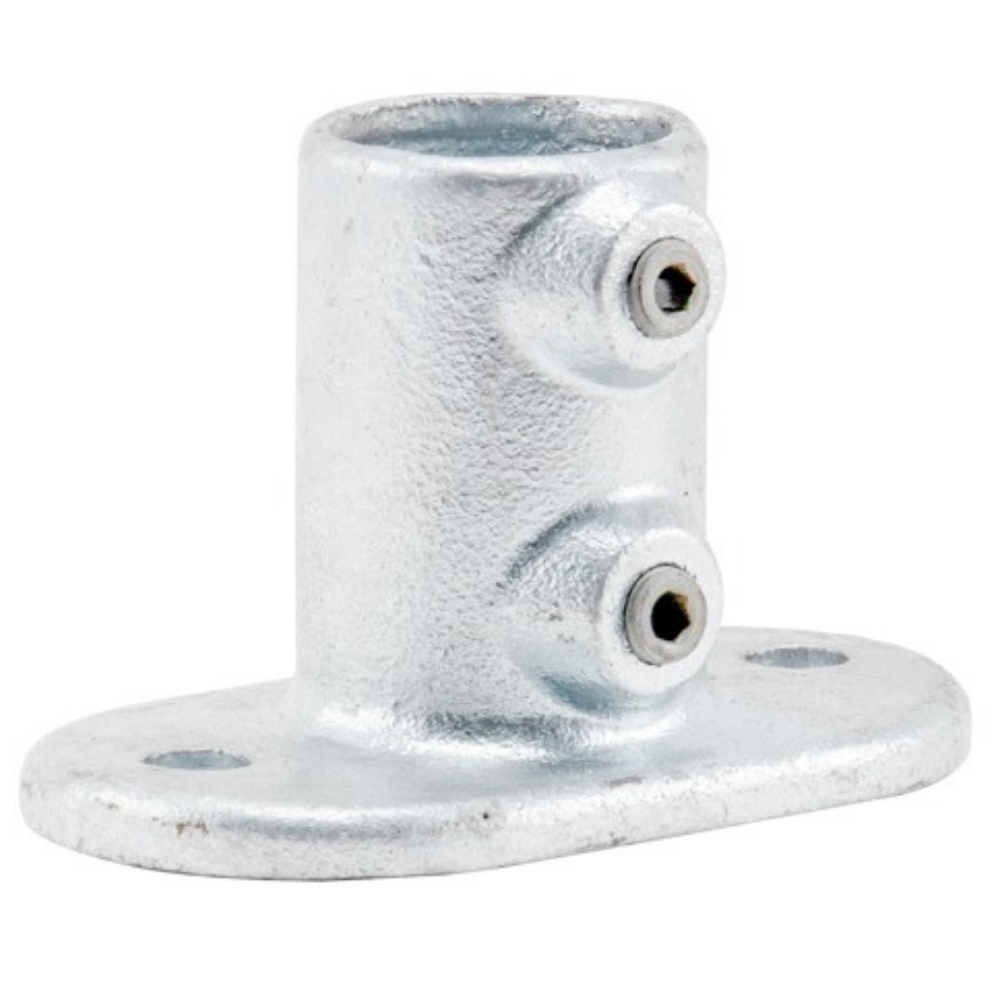

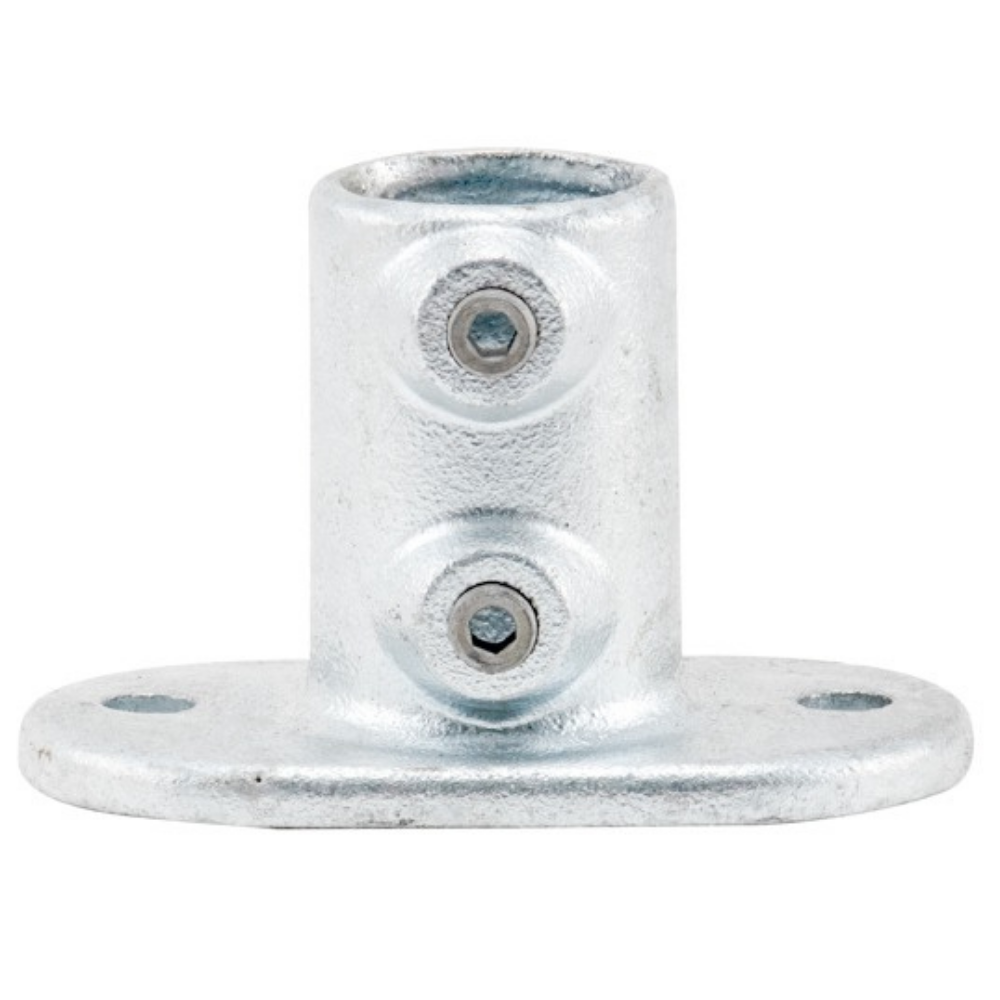

The Easyfit Railing Base Flange (EF12G) is designed to securely anchor vertical posts to solid surfaces such as concrete, wood, or steel. With two 1/2" mounting holes and two steel set screws, this fitting provides a stable base for handrails, guardrails, and other pipe-based structural systems.

Made from galvanized cast iron and hot-dip galvanized to BS EN ISO 1461 standards, the EF12G offers long-lasting durability and corrosion resistance for indoor and outdoor installations. It installs easily without welding and is compatible with Easyfit’s structural tubing.
  • Provides secure post-to-surface connection
  • Ideal for mounting handrails, guardrails, and pipe structures
  • Two 1/2" fixing holes for anchoring to concrete, wood, or steel
  • Hot dip galvanized for corrosion resistance
  • Indoor and outdoor use
  • No welding required
  • Includes two set screws for secure fit
  • Mounting hardware size: 2 @ 1/2" diameter
  • Compatible with Easyfit structural tubing
