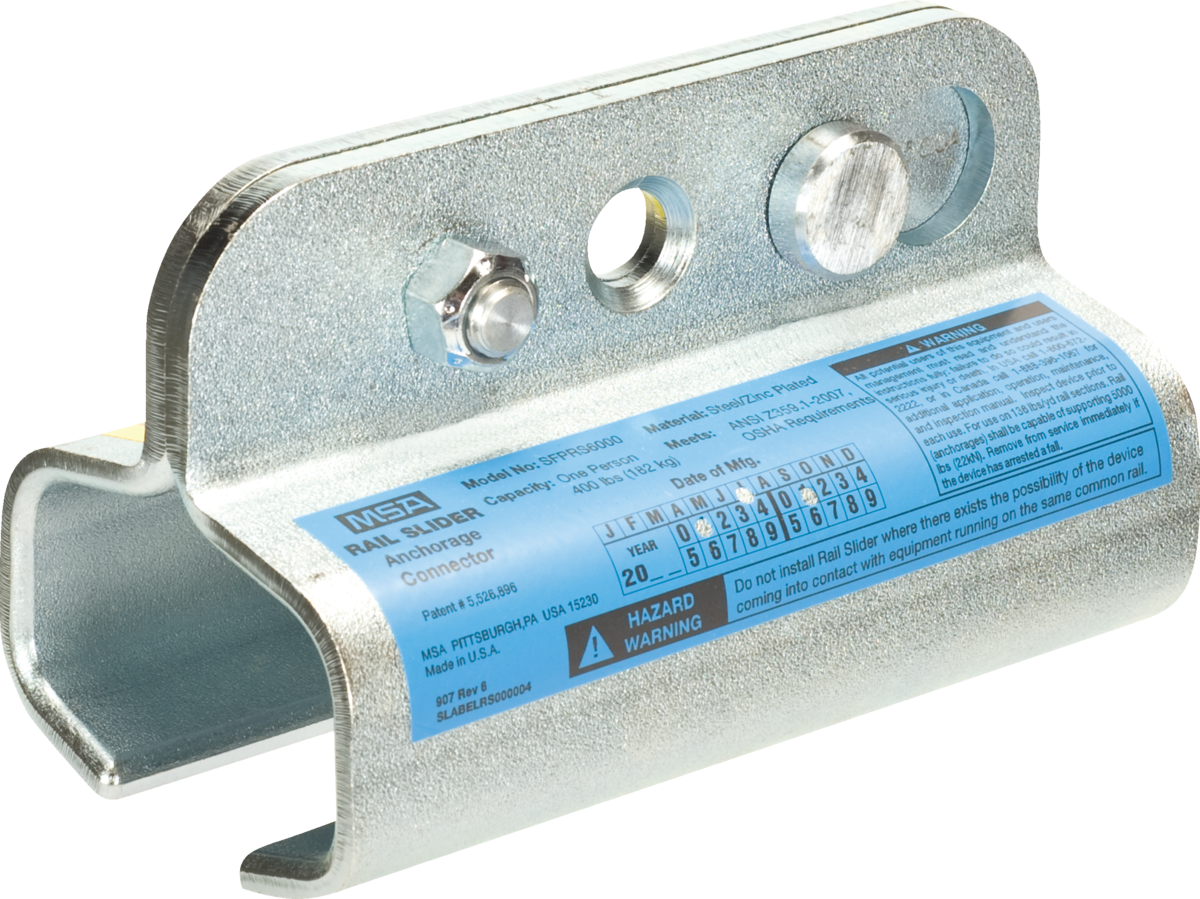

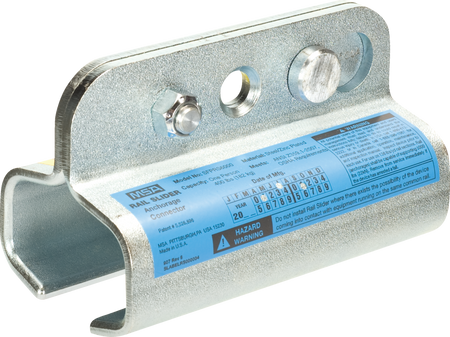

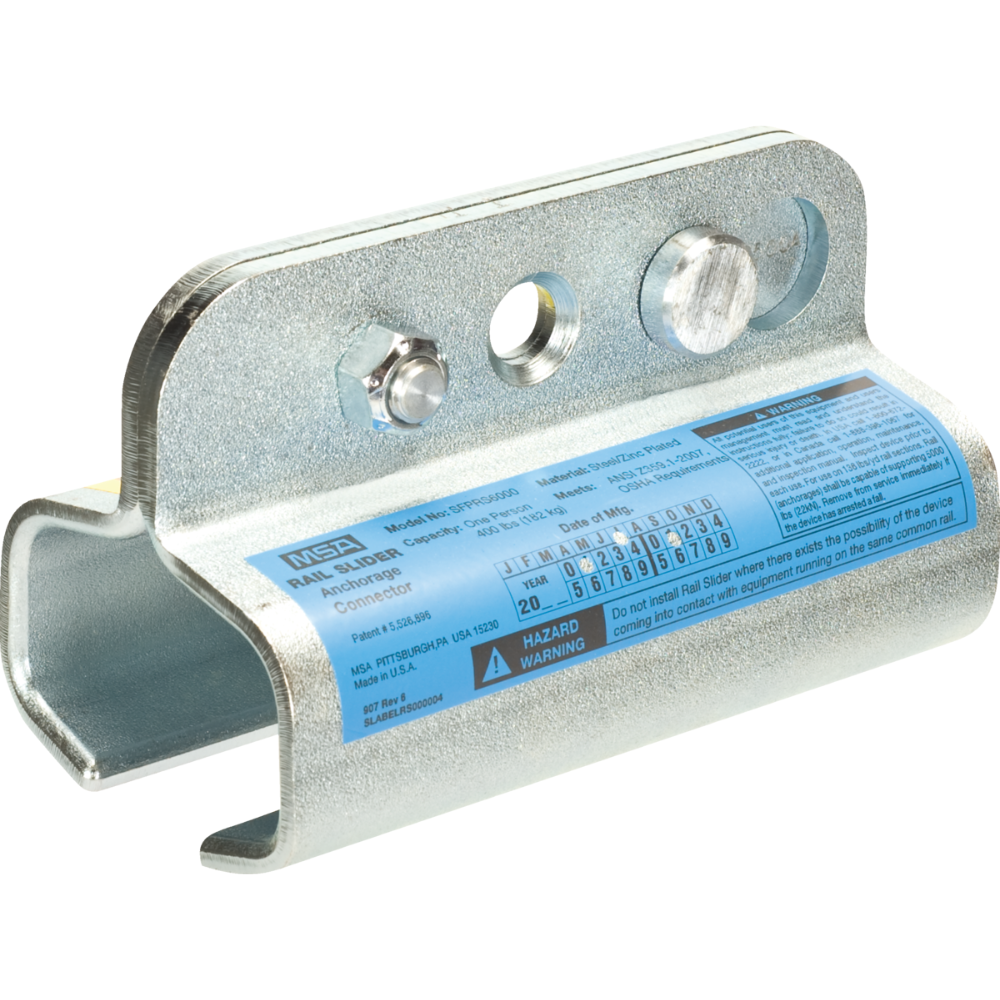

Rail-Slider Anchorage Connector - MSA

SKU: SFPRS6000
$238.88
Estimated Lead Time:1 to 3 Days

This device is easily and quickly installed anywhere along an approved anchorage (rail). The Rail Slider™ Anchorage Connector will move along the rail, pulled by the worker's lanyard/harness. No unhooking and re-hooking of the lanyard is required when changing work locations. The rail slider consists of a pair of rail profile plates, which interlock via a set of receiving bolts. A lanyard is attached to an approved carabiner securing the profile plates to the crown of the rail.


    • Connects directly to railway rails - for 80-136# Rail
    • Fall protection during horizontal movement on railway bridges
    • Capacity: 400 lbs (182kg)
    • Weight: 6.0 lbs. (2.7 kg)
    • Materials of construction: SA516 Grade 70 Steel
    • When used as part of a personal fall arrest system, fall arrest forces must not exceed 1,800 lbf (8 kN).
    • Free fall distance (limit) must not exceed 6.0 ft (1.8 m) in accordance OSHA, ANSI Z359.1 and ANSI A10.32-2004.

    User Manual (pdf)
