Rail Bracket - Square - EFSQ16G - Easyfit

SKU: EFSQ16G-25
$8.50
Size
Estimated Lead Time:3 to 5 Days

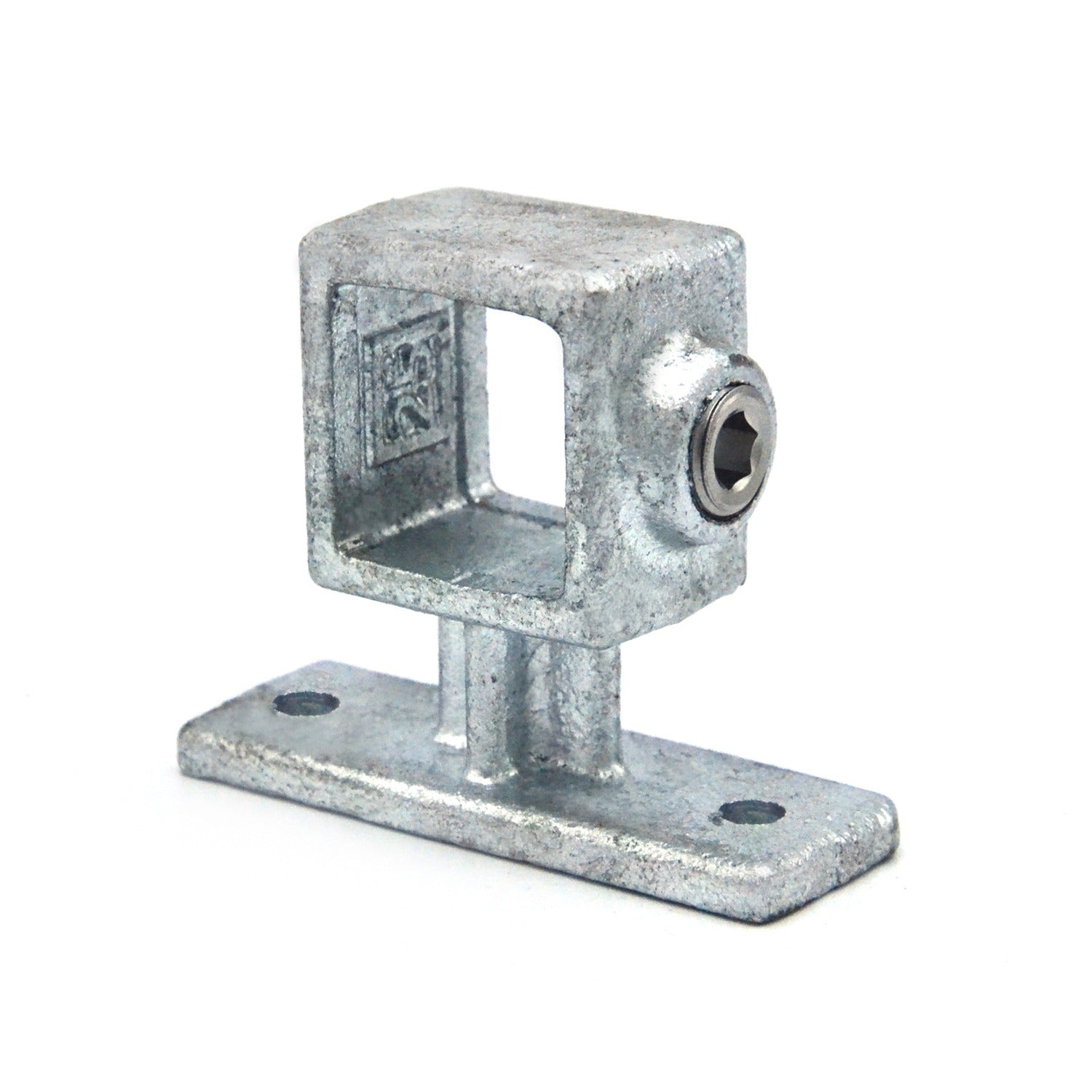

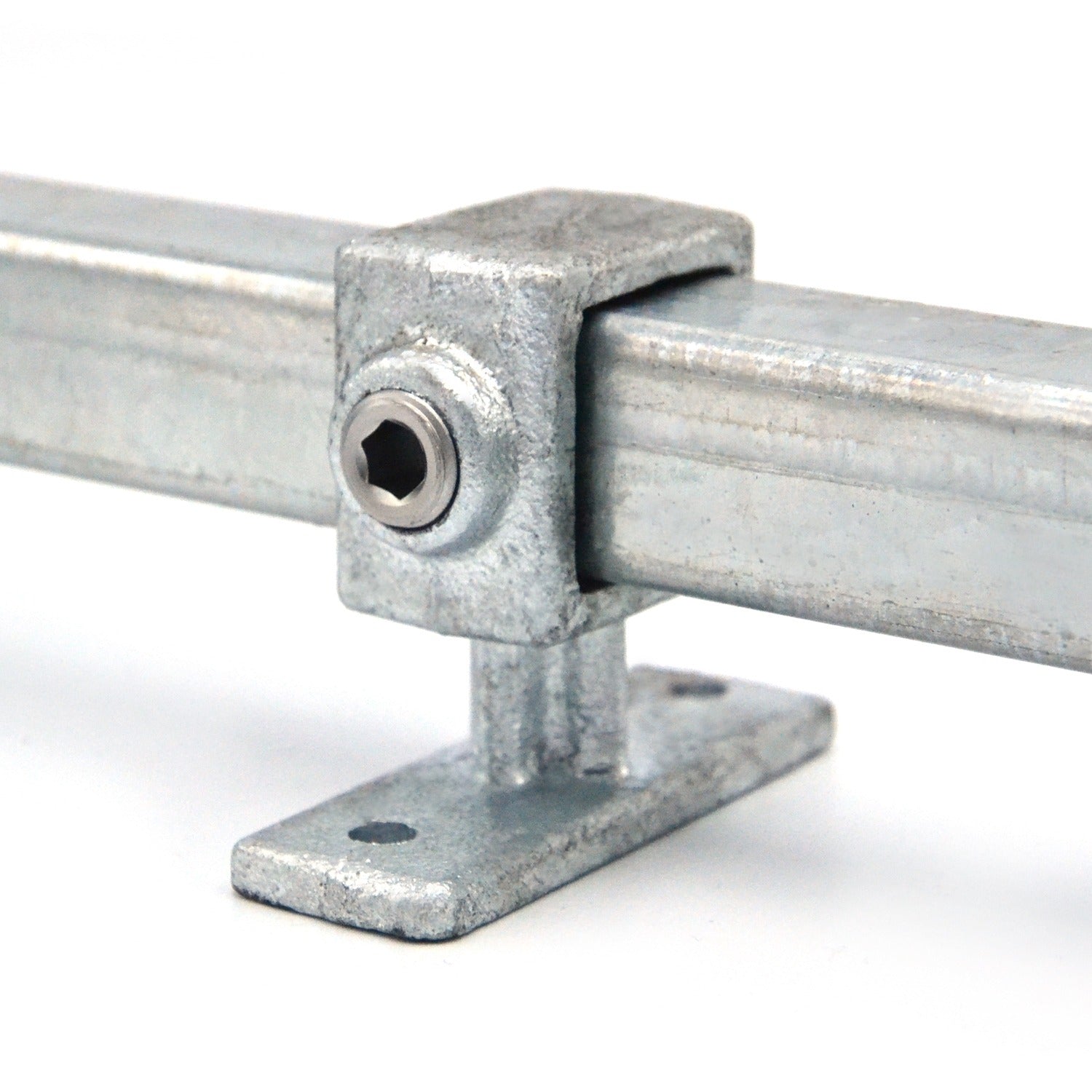

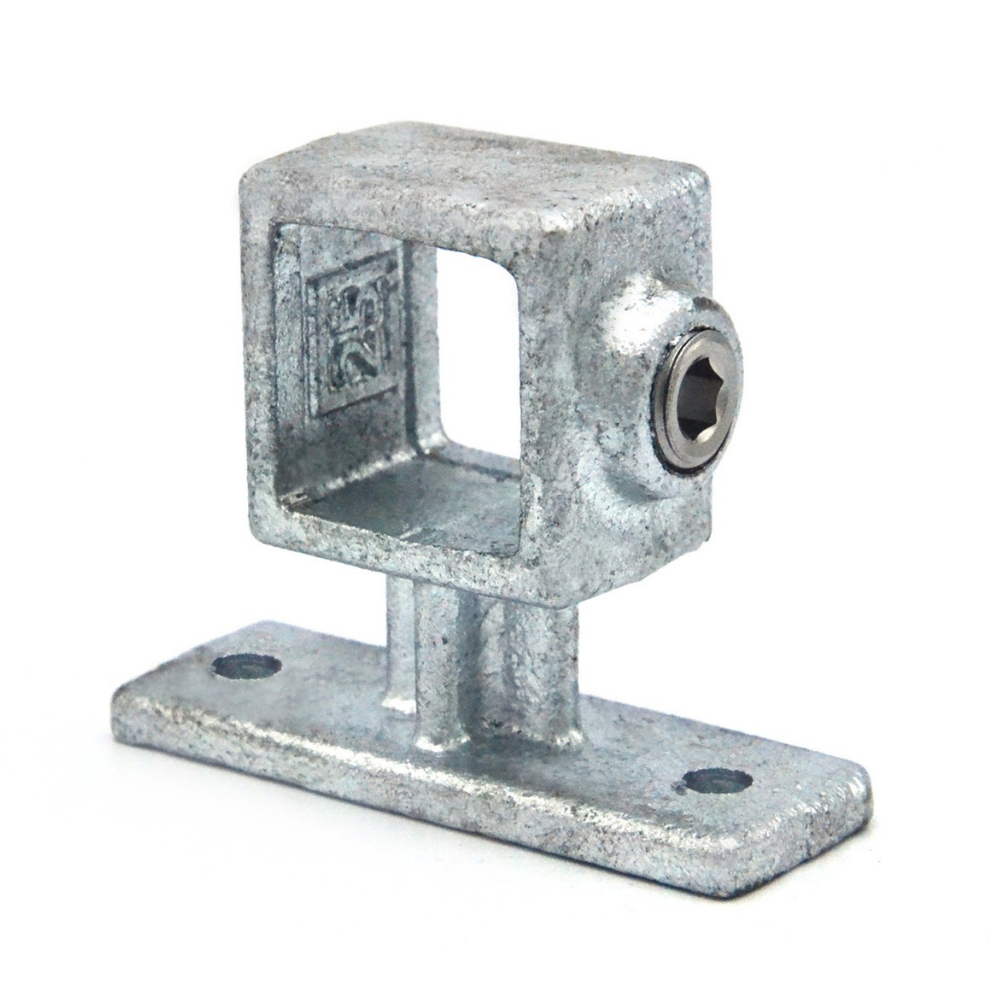

The Easyfit Rail Bracket – Square (EFSQ16G) is designed to secure square tubing to a wall or the top of a surface, making it ideal for terminating handrails or supporting lower rails in structural systems. This fitting does not allow tubing to pass through, ensuring a clean, closed-end finish.

It mounts using two 3/8" diameter fasteners and is compatible with 25 mm or 40 mm galvanized square tubing with a 2 mm wall thickness. Installation is simple using a standard allen wrench—no welding required.
  • Mounts square tubing to wall or top surface
  • Used to terminate or support lower or mid rails
  • Pipes do not pass through the fitting
  • Mounting hardware size: 2 @ 3/8" diameter
  • Only requires an allen wrench for installation
  • Indoor and outdoor use
  • No welding needed
  • Compatible with 25 mm or 40 mm square galvanized tube (2 mm wall)
  • Includes steel set screws for secure connection
  • Galvanized cast iron for durability and corrosion resistance
