Rail Bracket - EF16G - Easyfit

SKU: EF16G-25
$11.00
Size
Estimated Lead Time:3 to 5 Days

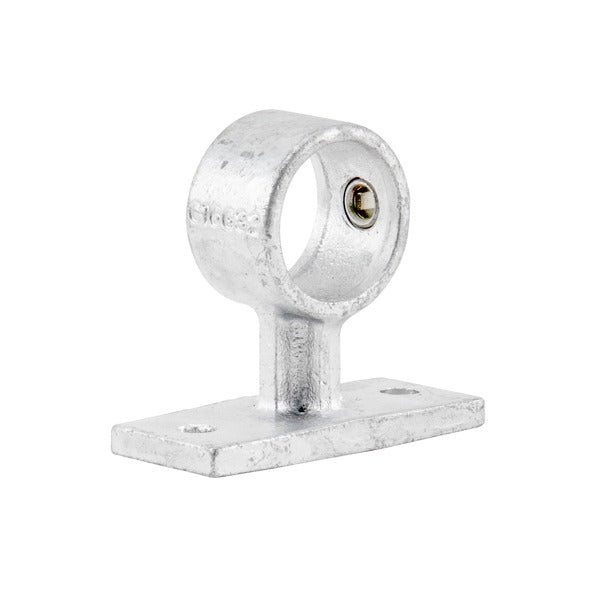

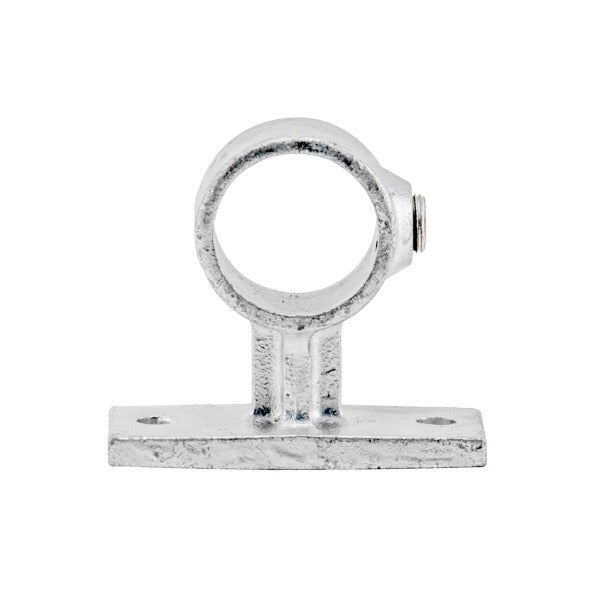

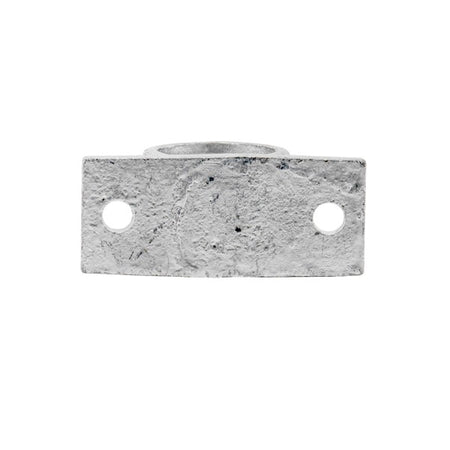

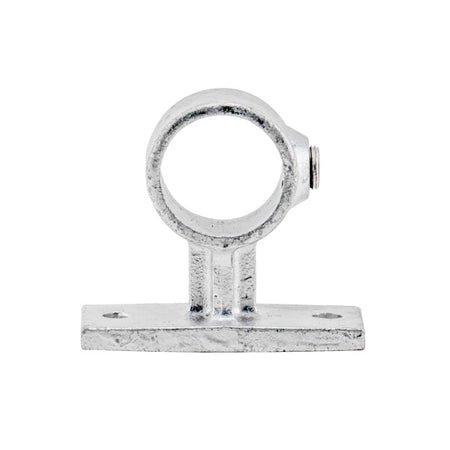

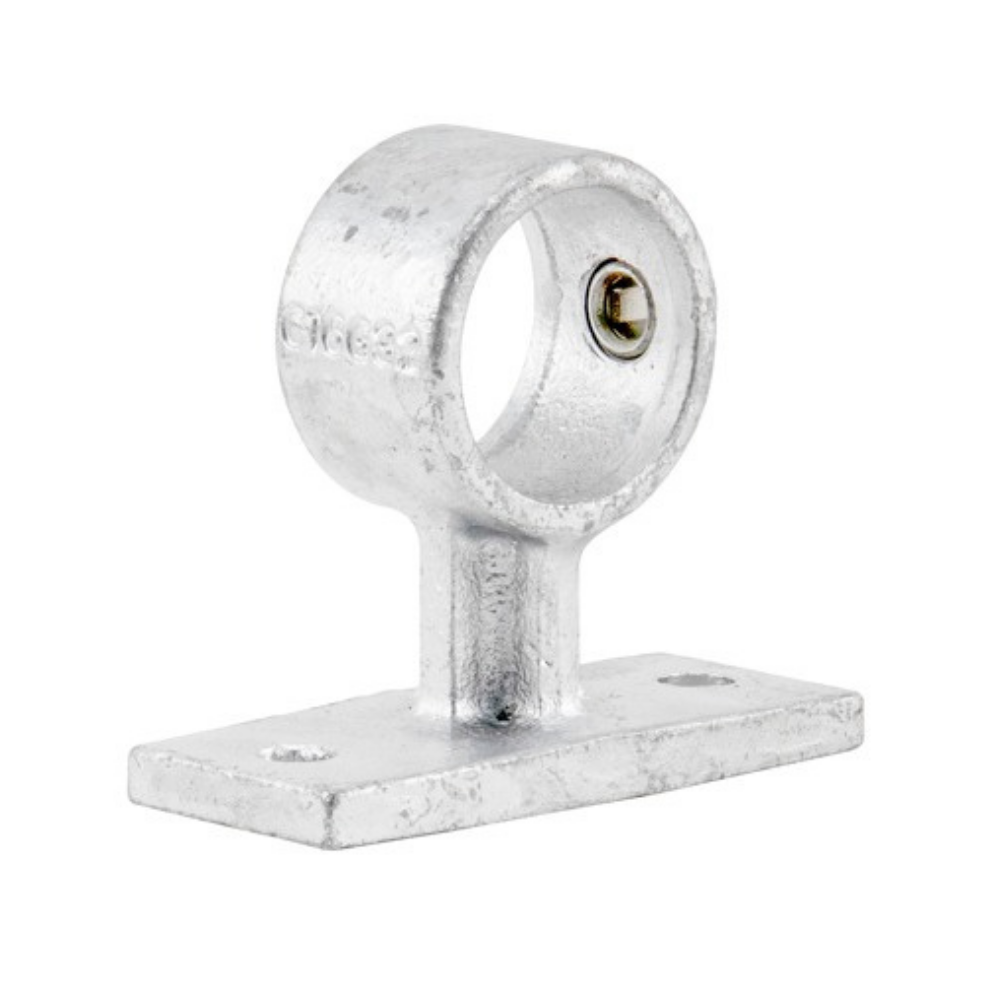

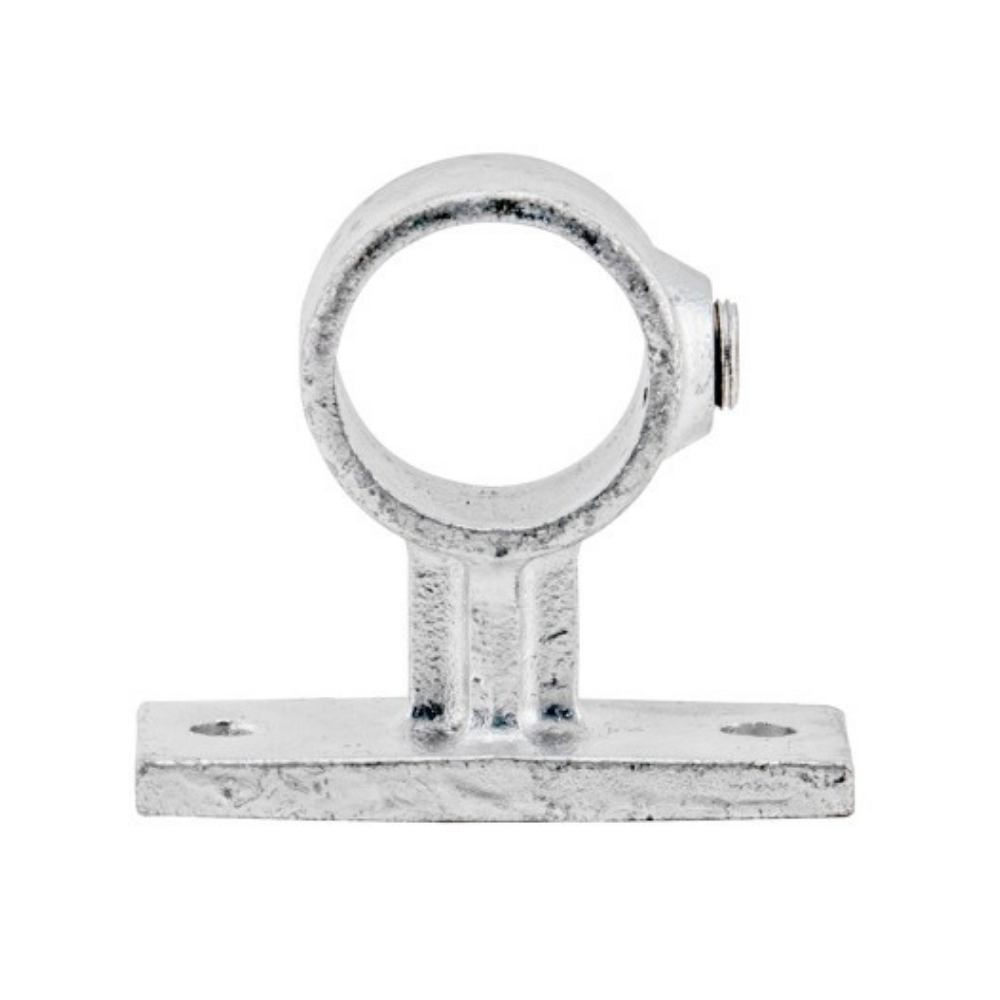

The Easyfit Rail Bracket (EF16G) is designed to secure a handrail pipe directly to a wall or the top surface of a wall, making it ideal for both horizontal and vertical mounting applications. This fitting provides a clean and stable attachment point but does not allow pipe to pass through or join inside the bracket.

Constructed from galvanized cast iron and hot-dip galvanized to BS EN ISO 1461 standards, the EF16G offers excellent corrosion resistance for long-term performance in indoor and outdoor environments. It installs easily using two 5/16" diameter mounting bolts—no welding required.
  • Secures handrail pipe to wall or wall top
  • Pipes cannot be joined inside the fitting
  • Mounting hardware size: 2 @ 5/16" diameter
  • Hot dip galvanized for corrosion resistance
  • Indoor and outdoor use
  • No welding required
  • Installs with standard hand tools
  • Compatible with Easyfit structural tubing
