Rail Anchor – 7495A – FallTech

SKU: 7495A
$182.80
Estimated Lead Time:1 to 2 Days

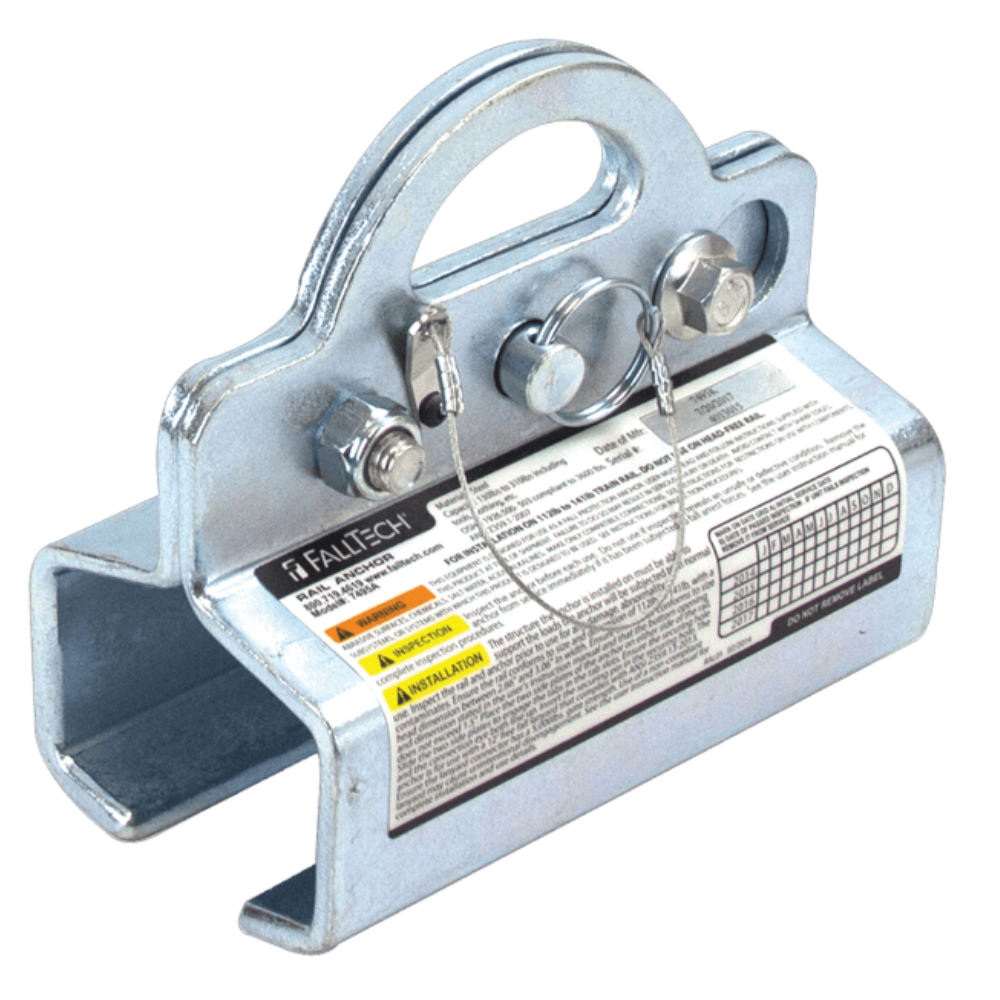

The FallTech 7495A Rail Anchor is engineered for temporary, reusable installation on existing train rails, providing a secure and mobile anchorage solution for workers operating on elevated rail systems and trestles. Designed to fit rail sizes from 112 lb to 141 lb (approximately 2-5/8" to 3"), the anchor features a robust interlocking twin-plate structure with a locking detent pin for confident attachment. This design allows user-trailing mobility along the rail while maintaining reliable fall protection. Built from plated carbon steel, the anchor meets OSHA safety requirements and supports users up to 425 lb under OSHA guidelines.
  • Product Code: 7495A
  • Construction: Plated carbon steel interlocking plates
  • Rail Compatibility: 112–141 lb rail (approx. 2-5/8"–3")
  • Static Strength: 5,000 lb min
  • User Capacity: ANSI 130–310 lb / OSHA 130–425 lb
  • Compliance: OSHA 1926.502 & 1910.66
  • Weight: 7 lbs
