Plastic Electric Drum Pump – 115V – 7.5 in. x 4.25 in. x 8 in. – EDP – Vestil

SKU: EDP
$1,027.50
Estimated Lead Time:1-3 Days

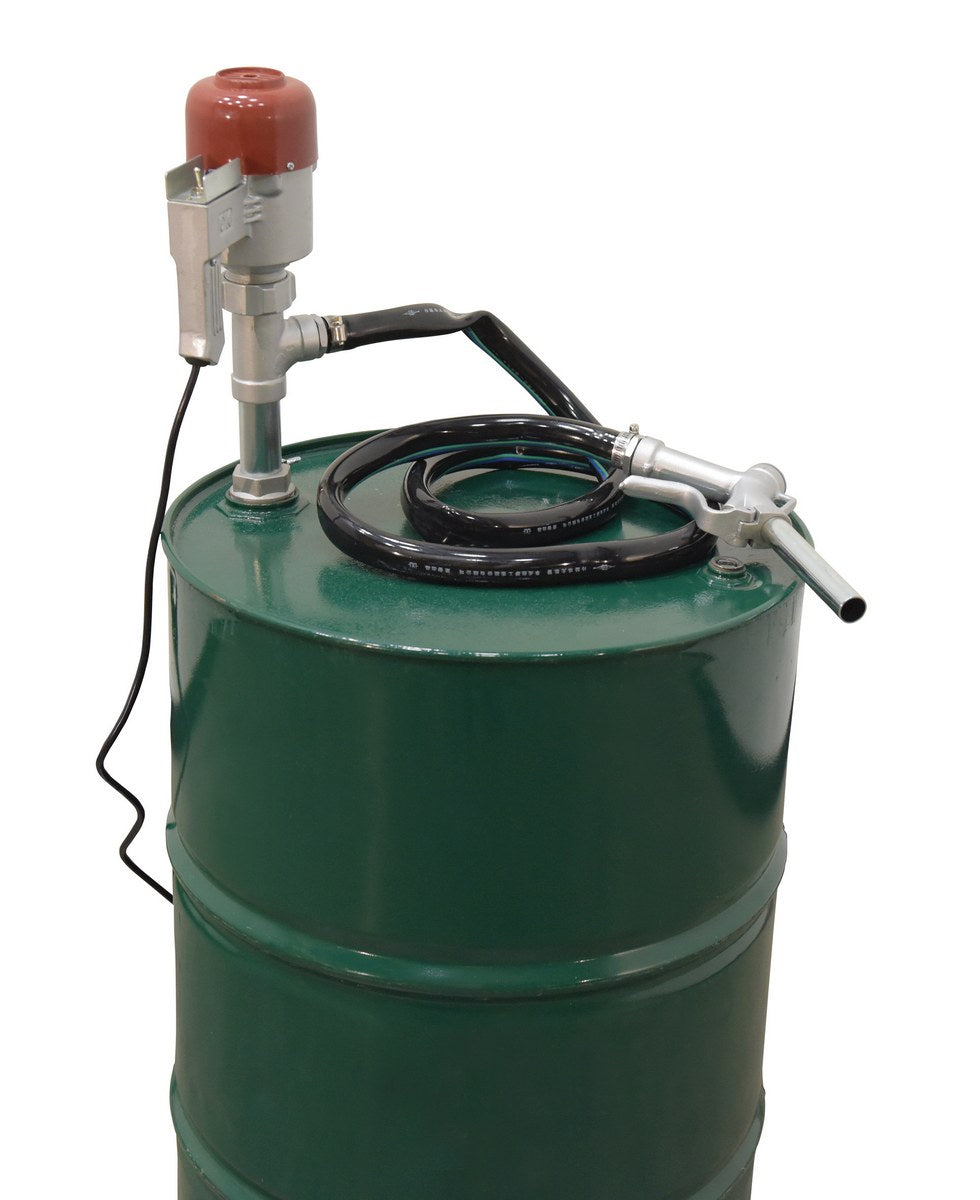

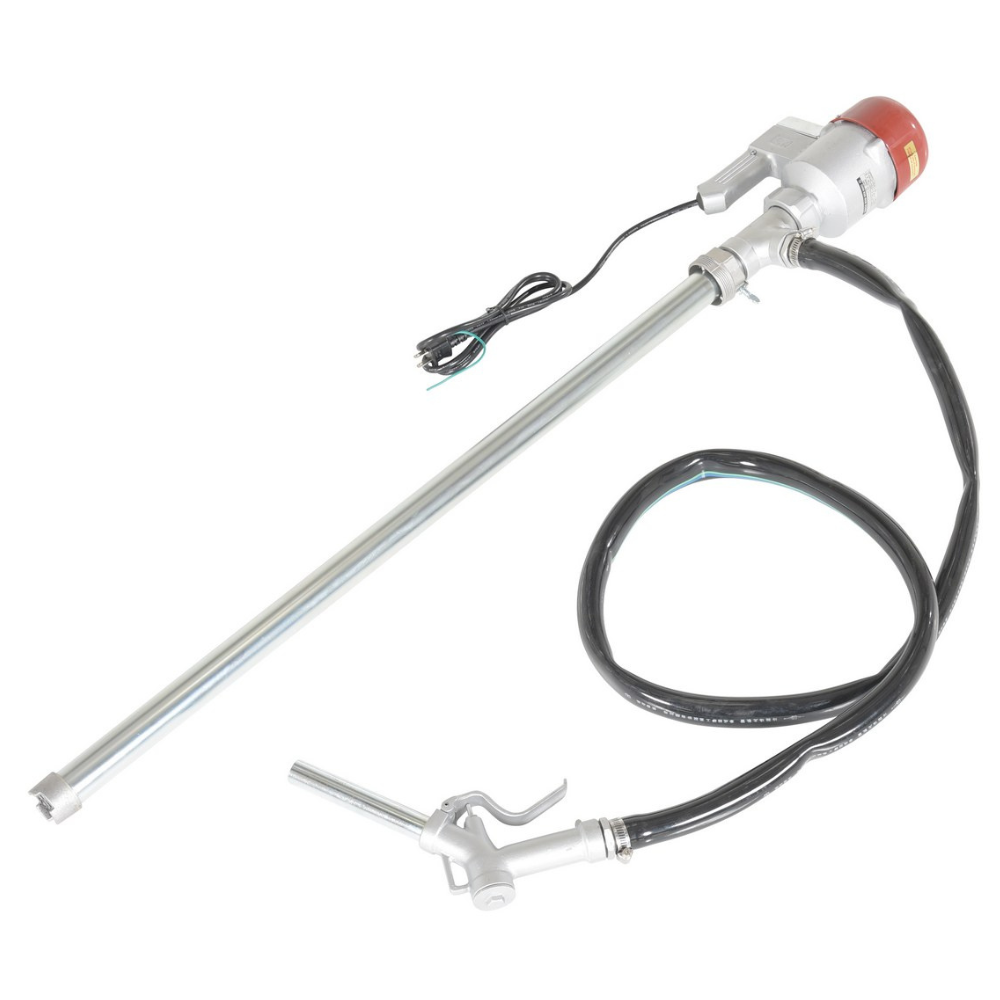

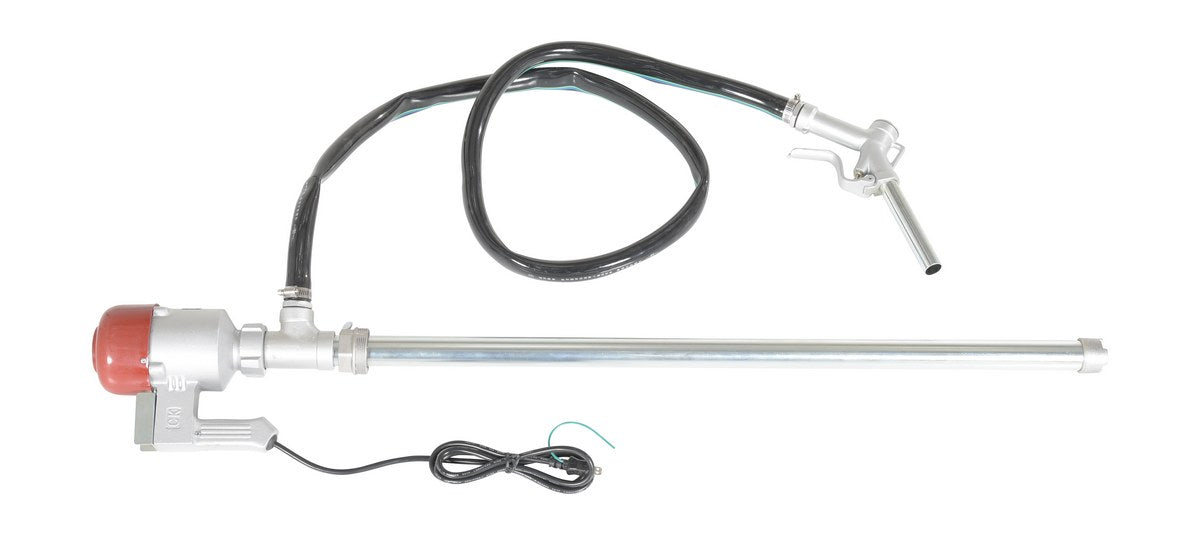

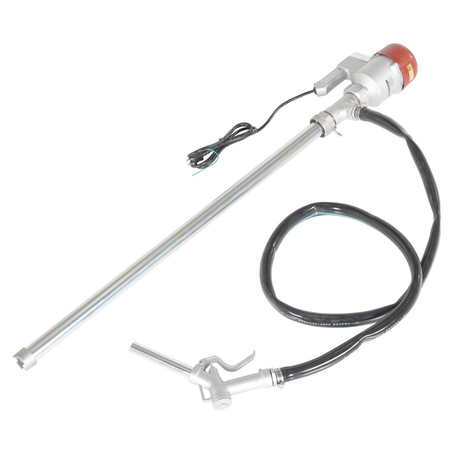

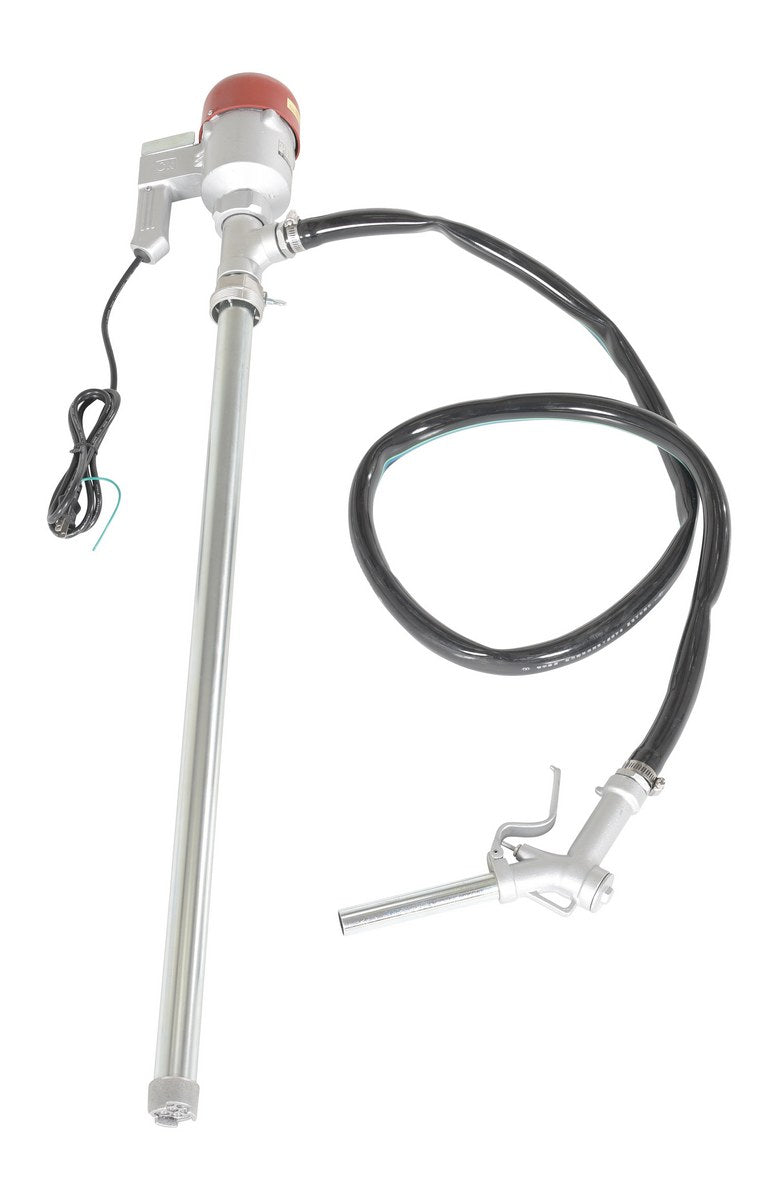

The Vestil Model EDP Electric Drum Pump is designed to reduce the time and effort required to dispense or transfer liquids. With a continuous run rating and durable construction, it offers efficient fluid movement for a wide range of drum handling applications. Its stainless steel pipe and drive shaft ensure compatibility with acid and base chemicals, while its compact size and efficient motor make it a reliable solution for industrial use.
  • Model Number: EDP
  • Pump Body Material: Plastic / Stainless Steel
  • Motor Type: AC 115 Volt, Single Phase, 1/4 HP
  • Pump Speed: 10,000 RPM
  • Bung Size: 2 in. (NPT fittings: 2 in. & 1-1/2 in.)
  • Delivery Volume: 22.75 GPM
  • Maximum Viscosity: 400 CPS (≈ 1950 SSU)
  • Hose Length: 2 m (78.7 in.) oil-proof hose included
  • Immersion Tube: Stainless steel, 3/16 in. construction
  • Drive Shaft: Stainless steel, 3/16 in. construction
  • Mounting Type: Hook over the edge

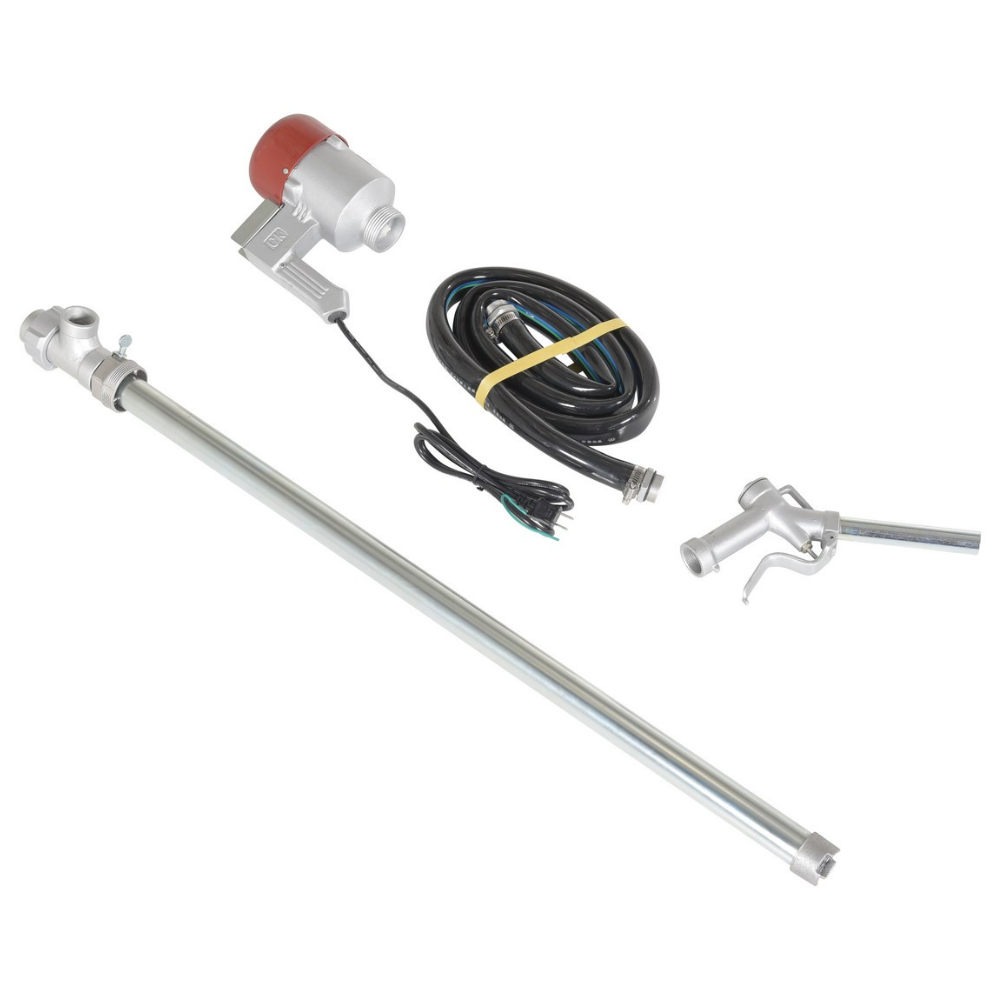

  • Features: Self-priming, includes hose & gun, ribbed grip handle
  • Compatible Drum Size: 15 – 55 gallon drums
  • Overall Dimensions: 7.5 in. L x 4.25 in. W x 8 in. H
  • Weight: 18 lbs

Warranty (PDF)

Manufacturer Warranty: 30 Days
