Personnel Winch for Tripods and Davits – FallTech

SKU: 7297S
$776.00
Length
Estimated Lead Time:1 to 2 Days

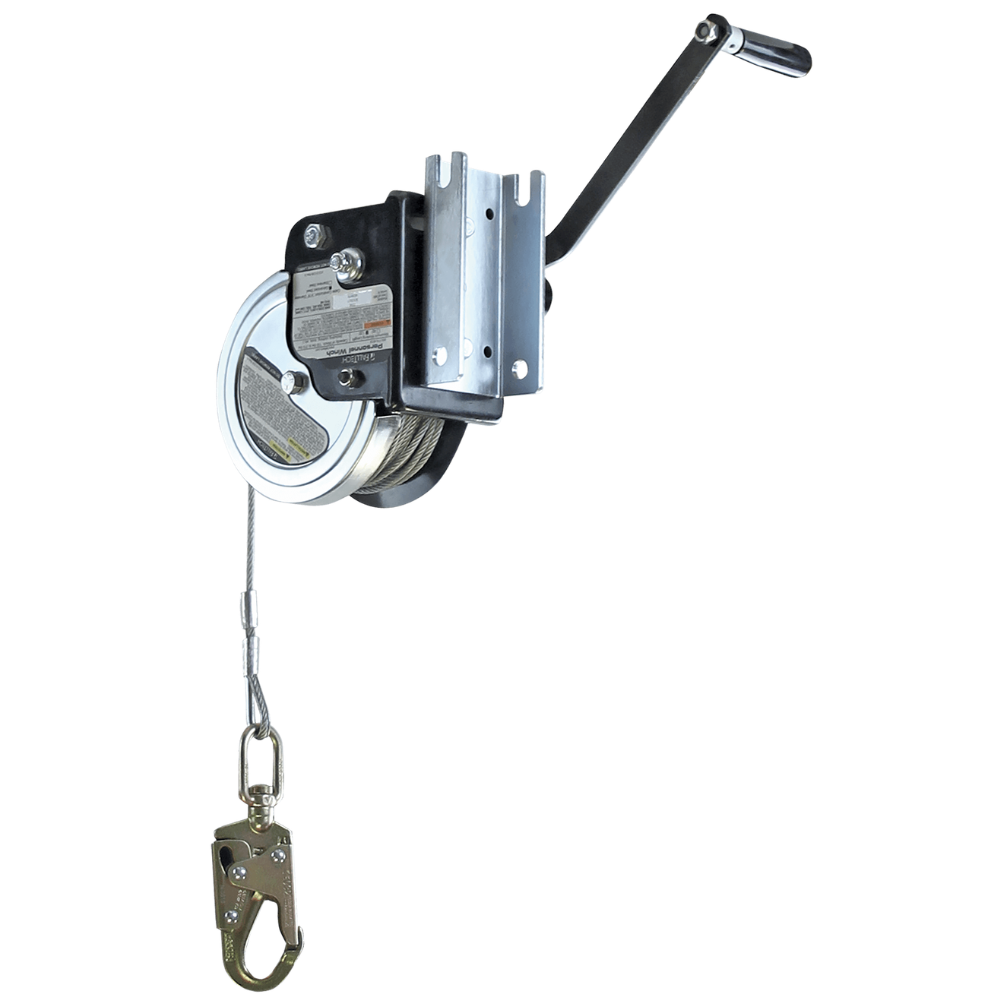

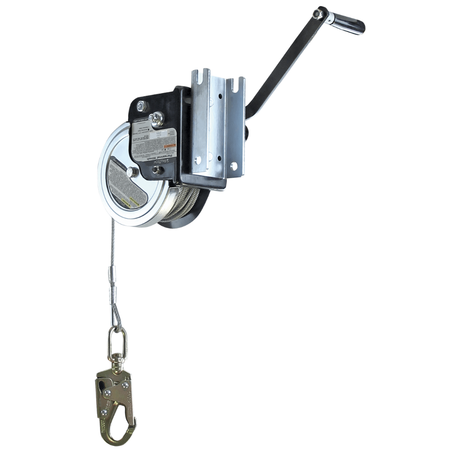

The FallTech® Personnel Winch is designed for safe entry and exit in confined space applications when used with compatible tripods and davits. This single-user mechanical winch features a 3/16" stainless steel cable lifeline with an alloy steel swivel snap hook for reliable connection and corrosion resistance.

A 5:1 gear ratio provides mechanical advantage with an average lifting speed of 12 feet per minute, while a secondary braking system adds an extra layer of safety in the event of primary brake failure. The winch includes a folding handle for compact storage, an integral mounting bracket for quick installation, and a 20" weather-resistant storage bag. This winch is intended for personnel use only and complies with applicable ANSI and OSHA standards.
  • Product Type: Personnel Winch for Tripods and Davits
  • Operation: Manual, single user
  • Cable: 3/16" stainless steel; 3,400 lb minimum static strength
  • Lifeline Connector: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Drive and Drum Gears: Plated alloy steel
  • Gear Ratio: 5:1
  • Average Lifting Speed: 12 ft per minute
  • Static Strength: 3,100 lb minimum
  • Handle Operation Force: 30 lb maximum
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 310 lb maximum
  • Compliance: ANSI Z359.4-2013, ANSI Z117.1-2009, OSHA 1926.502, 1910.146
