Patriot 50' 3-Way SRL w/ Retrieval – Frontline

SKU: RAG503W-US
$3,049.00
Estimated Lead Time:

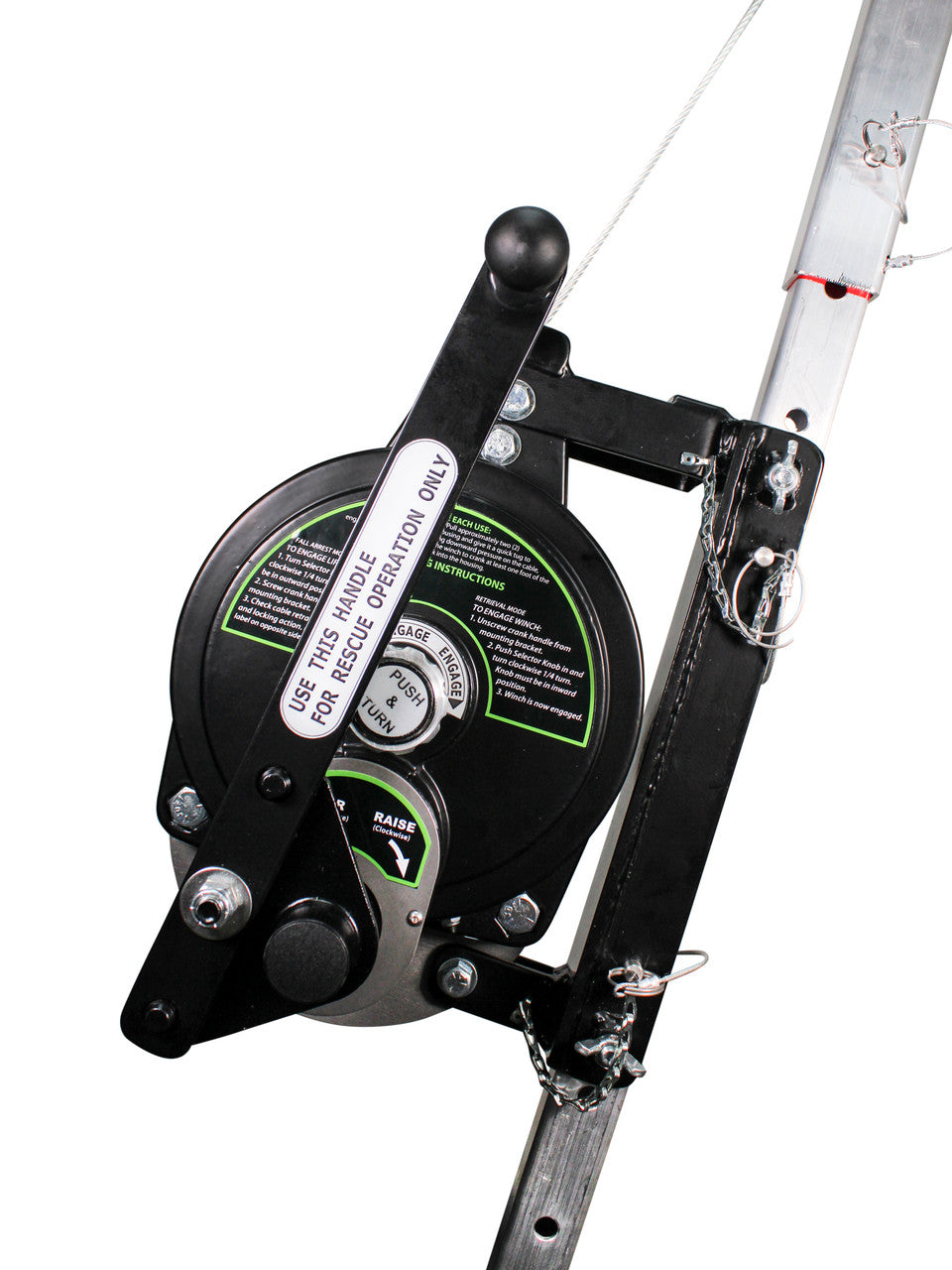

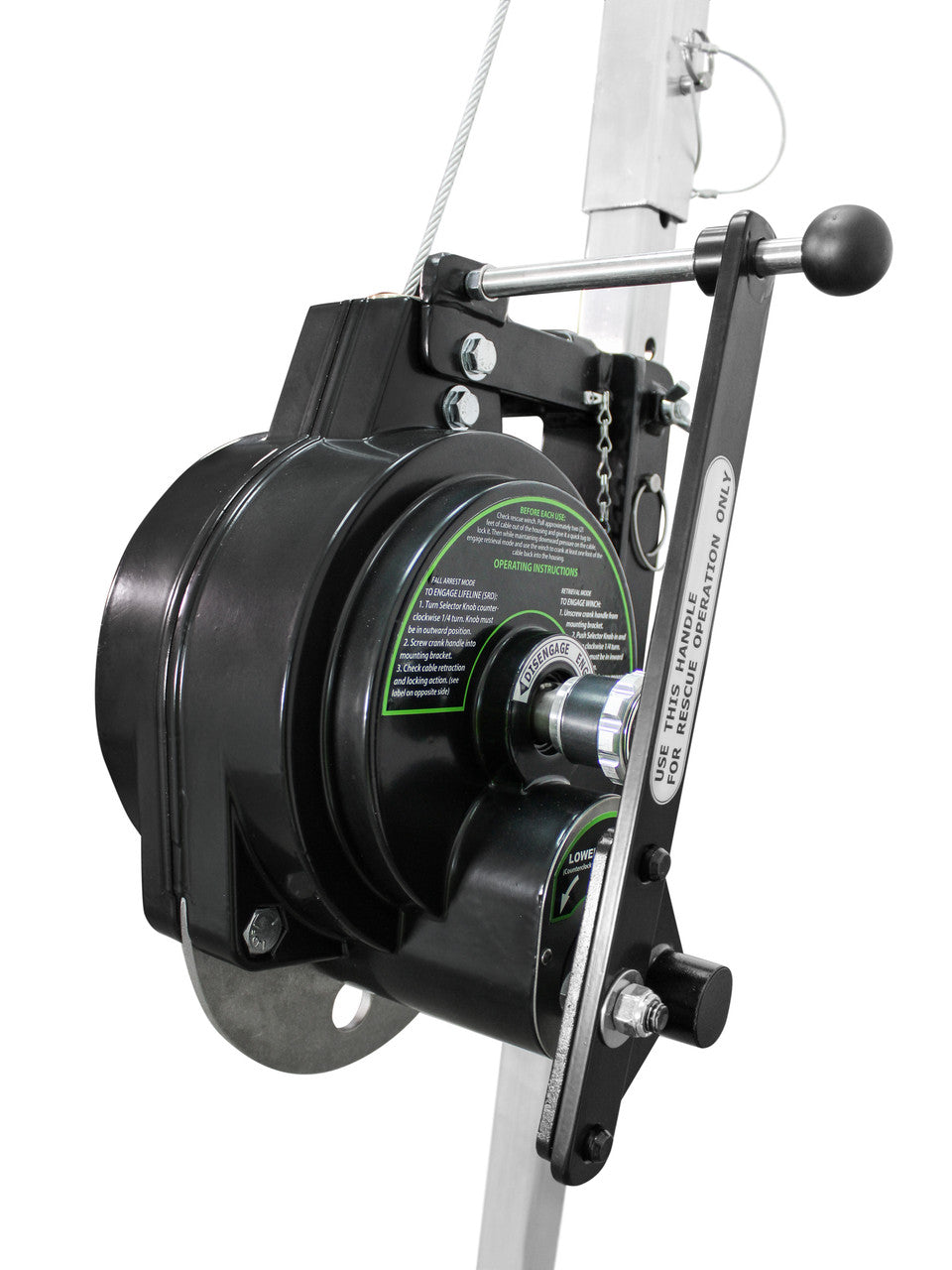

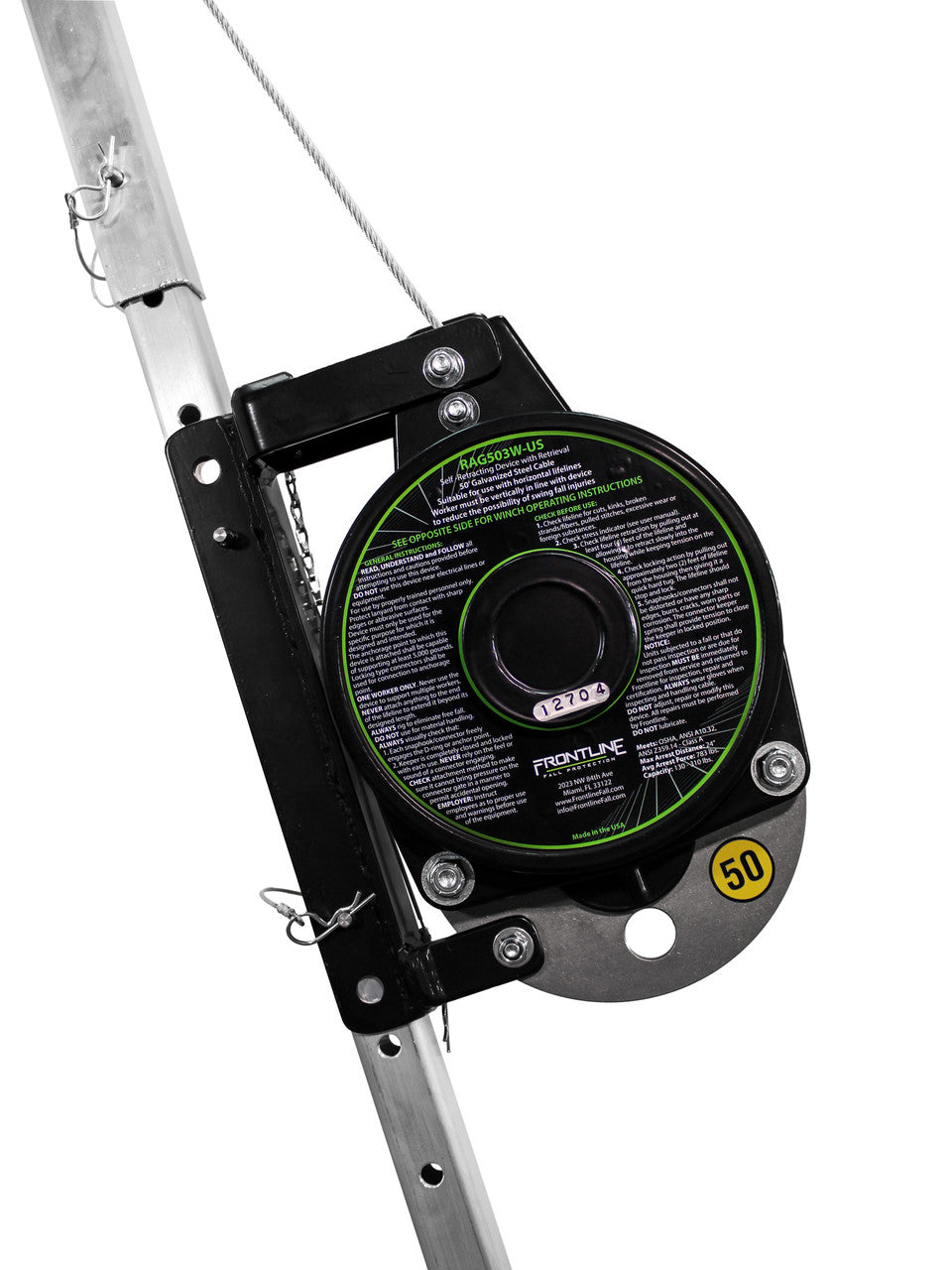

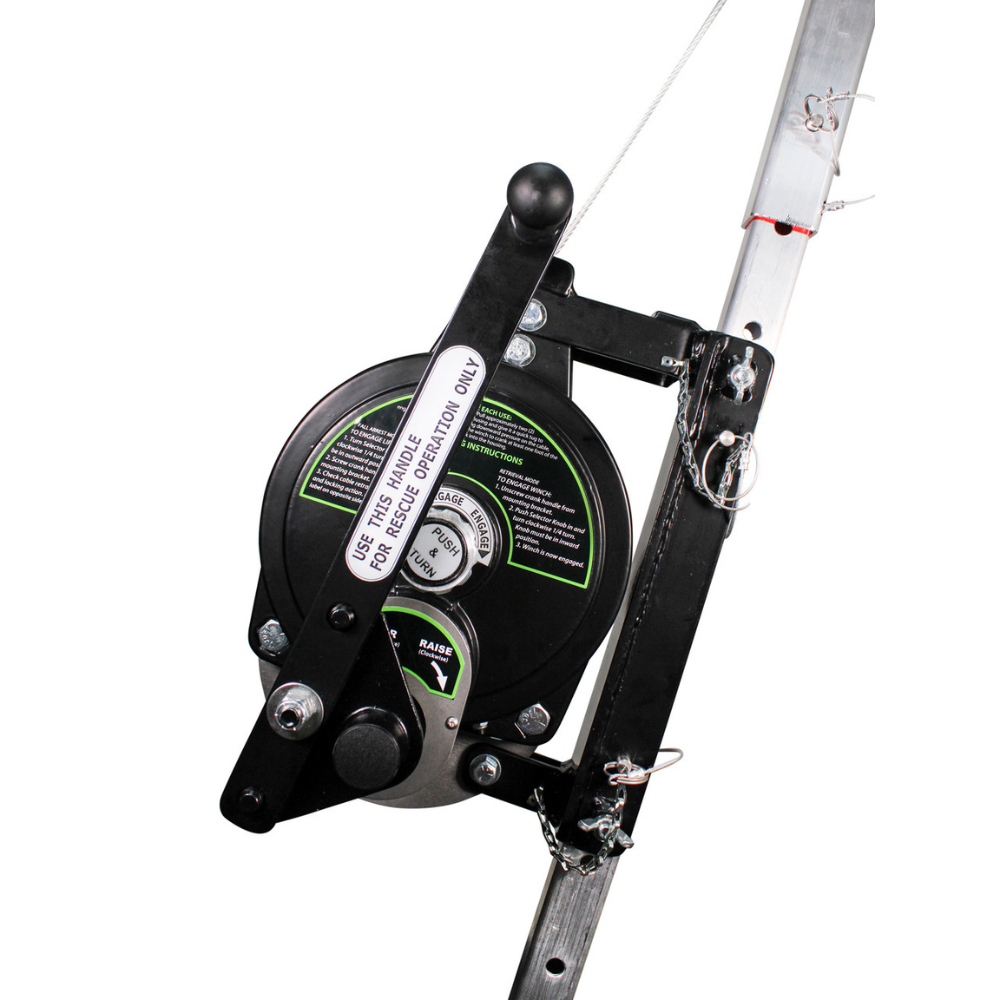

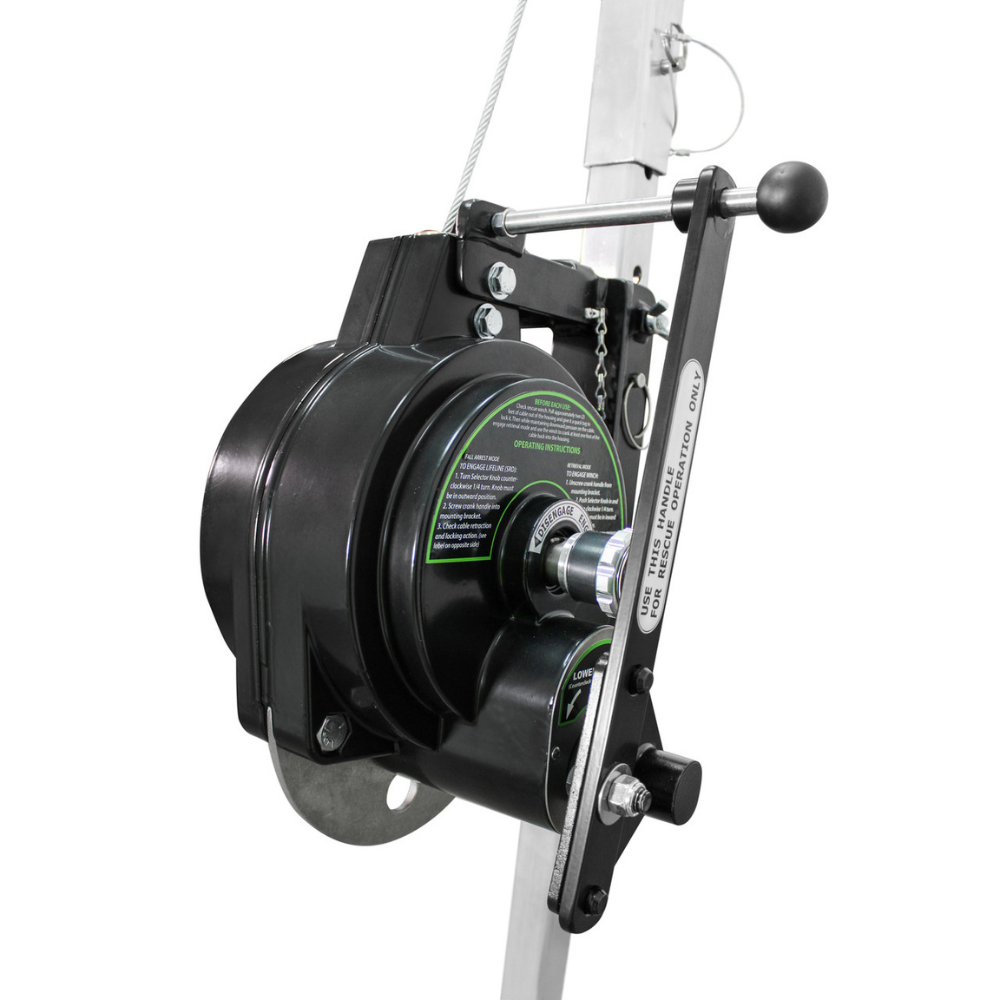

The Frontline RAG503W-US Patriot™ 3-Way Retrieval & SRL is a top-tier confined space solution proudly made in the USA. Designed for reliability in the most demanding environments, this system combines rescue, lifting, lowering, and fall arrest capabilities in a single rugged device—ideal for use with the Patriot™ Tripod, Davit, or Quadpod systems.

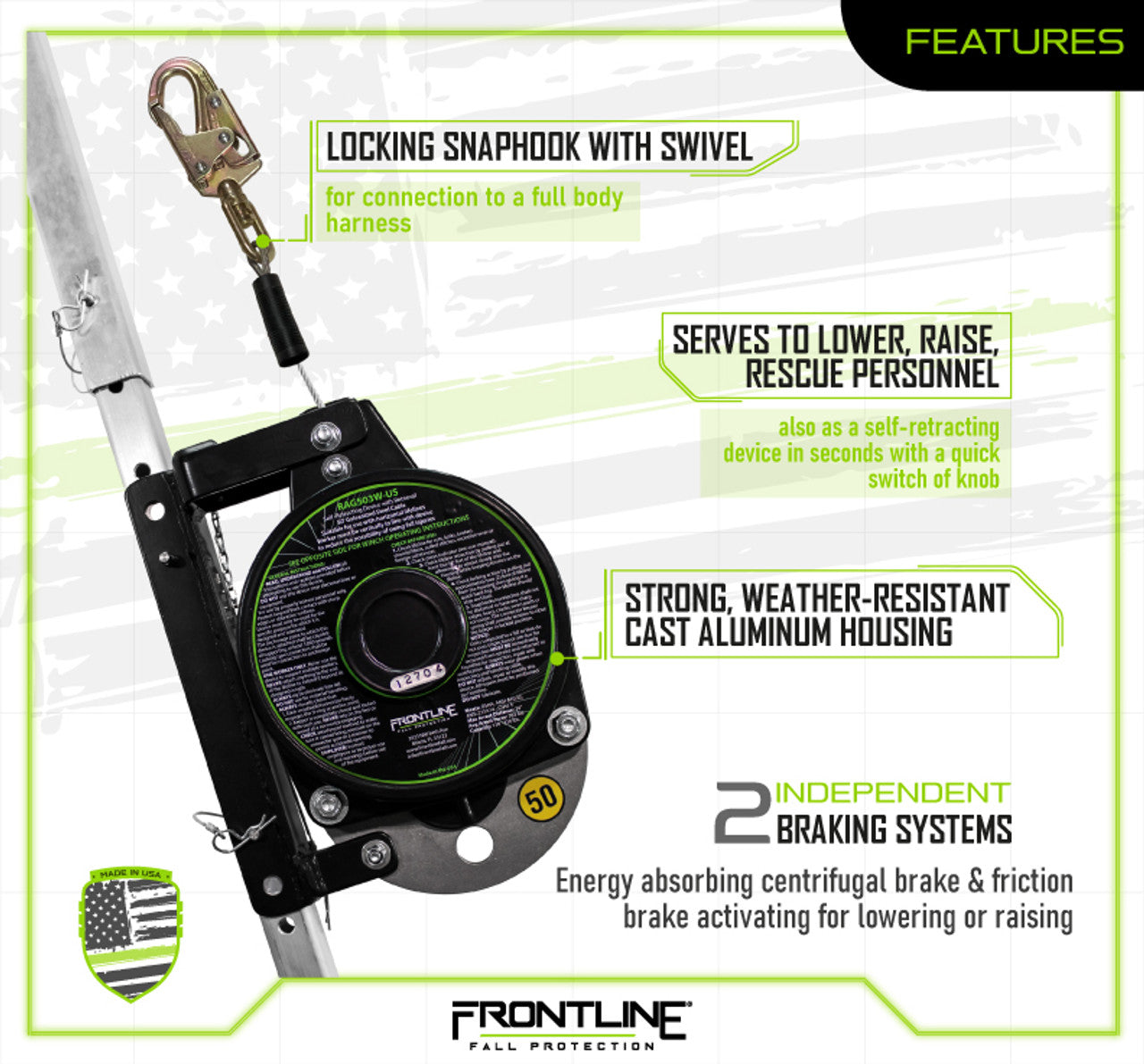

Built with a weather-resistant cast aluminum housing, the Patriot™ 3-Way features dual independent braking systems: a centrifugal energy-absorbing brake for soft fall arrest and a friction brake that holds position when movement stops. Switching between SRL and retrieval modes is fast and tool-free, thanks to a rubber-coated knob. The 50' galvanized steel cable includes a locking swivel snaphook with an integrated impact indicator for added safety.

Made with union craftsmanship in the USA, this device delivers unmatched quality, precision, and durability for confined space operations.
  • use: personnel/material lifting, lowering, rescue, SRL
  • lifeline length: 50'
  • maximum lifting load capacity: 350 lbs
  • dual braking system: centrifugal brake and friction brake

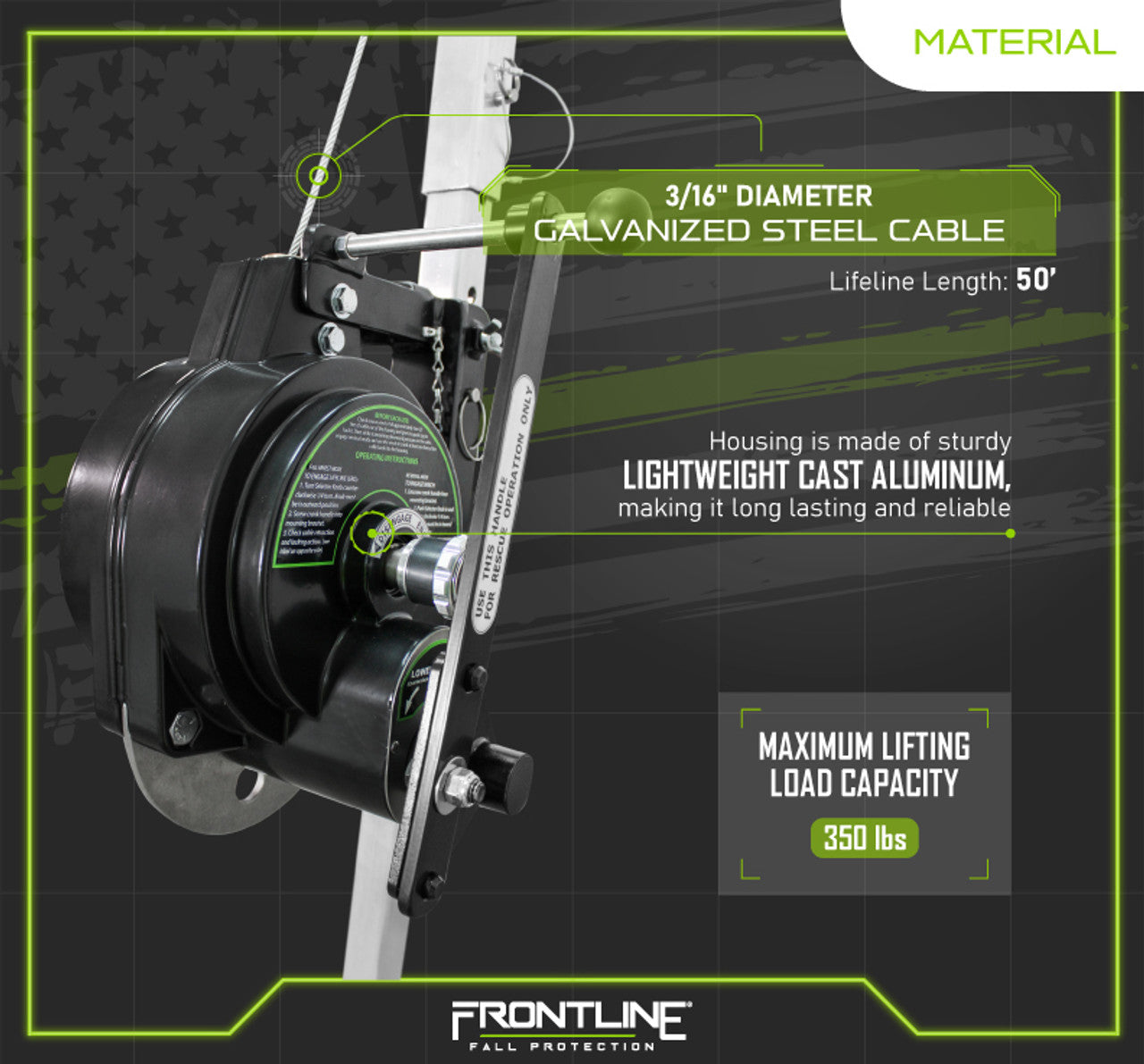

  • 3/16" galvanized steel cable
  • locking swivel snaphook with impact indicator
  • weather-resistant cast aluminum housing
  • quick switch knob for retrieval or SRL mode
  • proudly made in the USA

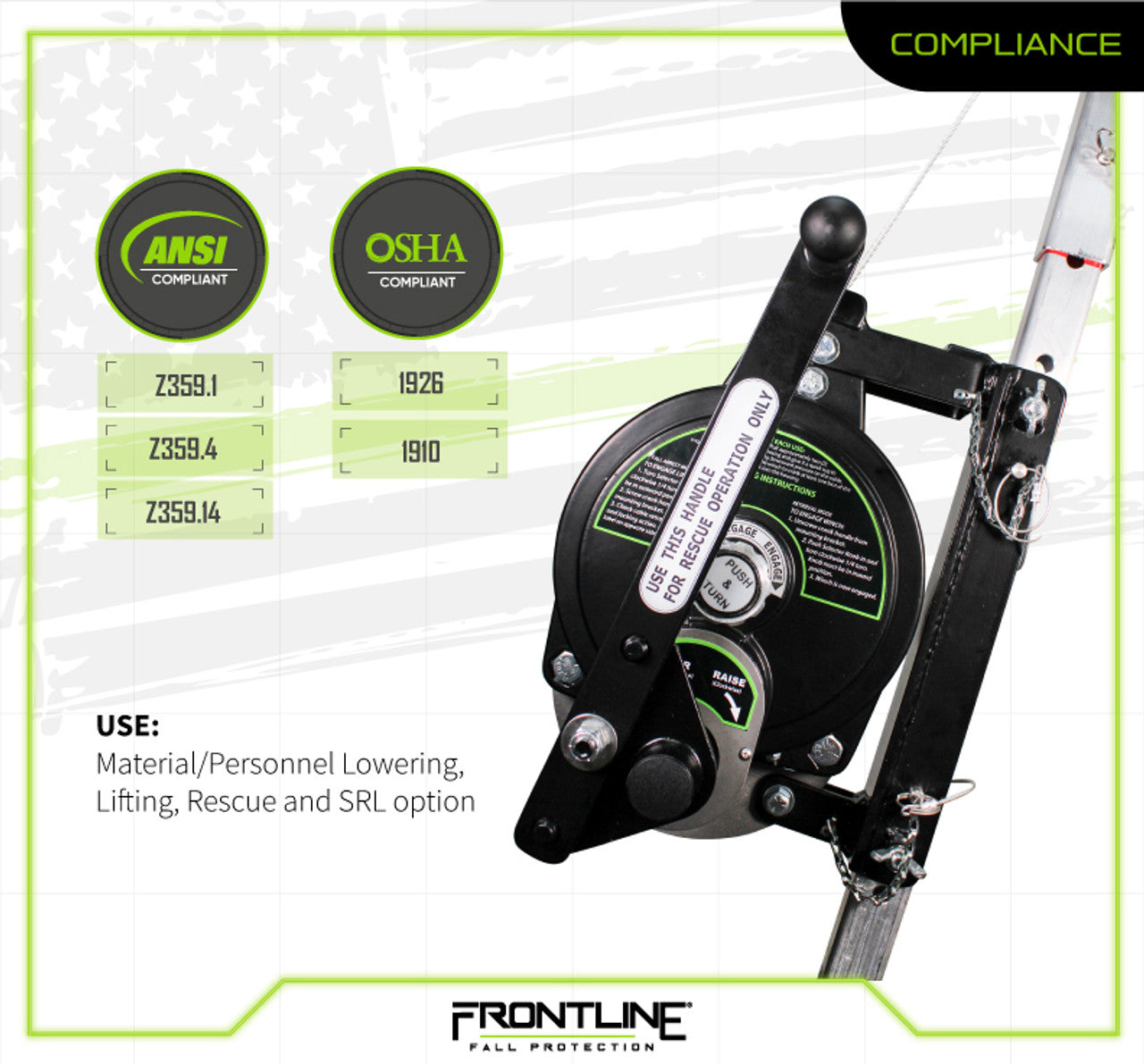

  • meets or exceeds OSHA, ANSI Z359.1, Z359.4, Z359.14
