Modular Ramp System - KBR1200 Model - Kattsafe

SKU: KBR1200.012
$5,395.38
Clear Height of Platform
Estimated Lead Time:3 to 5 Days

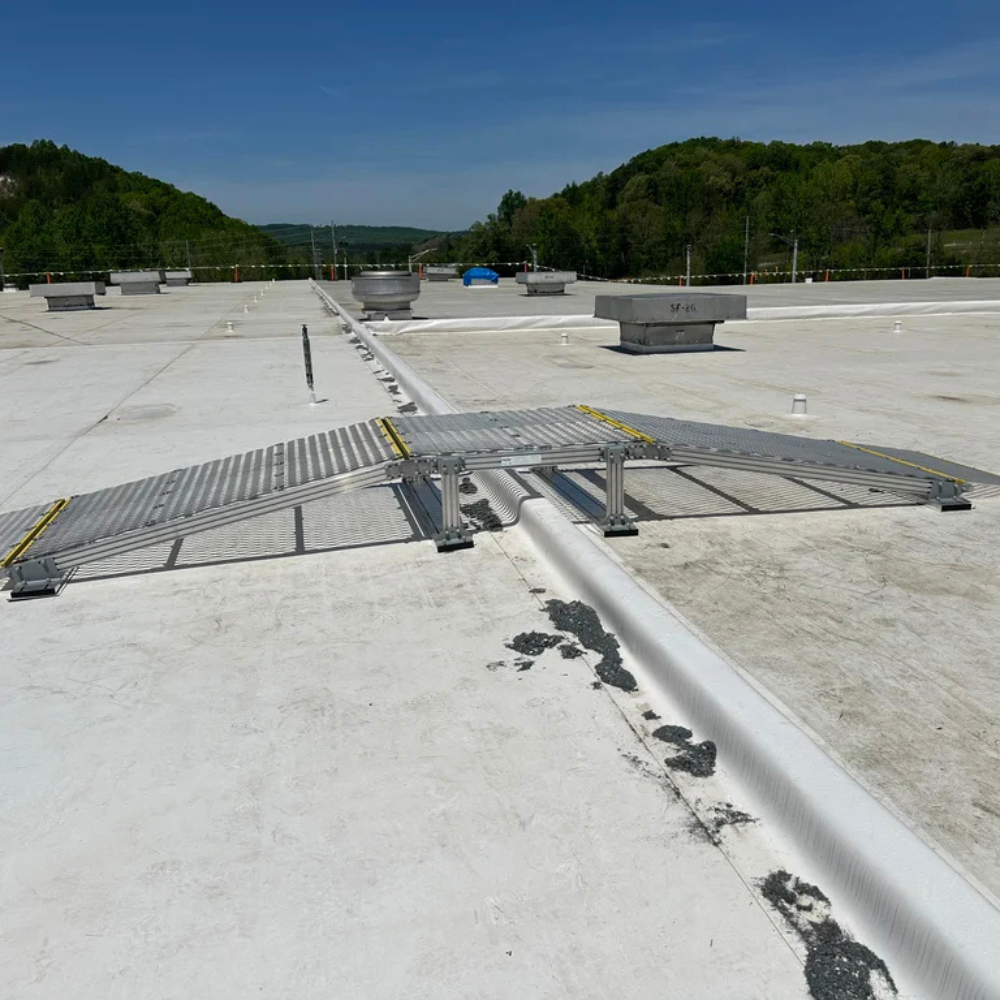

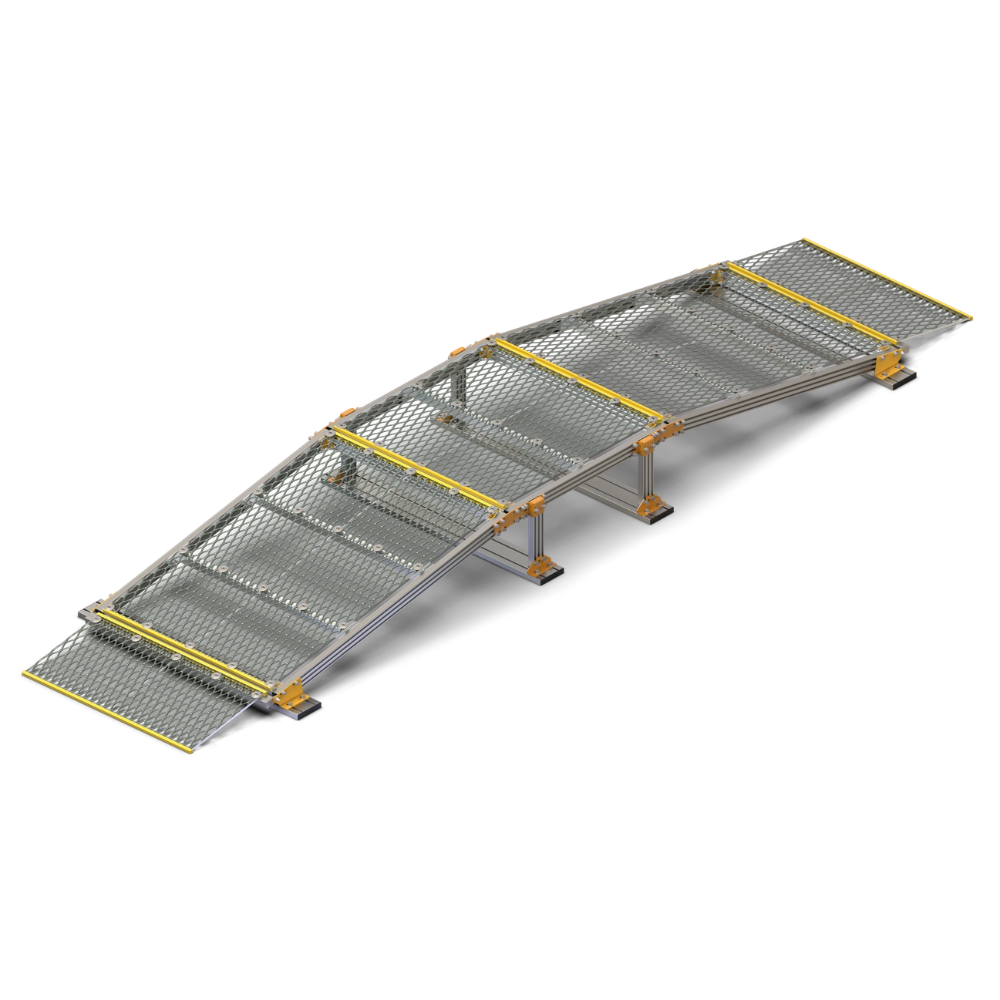

The KBR1200 Ramp System is made of high-strength aluminum with a non-penetrating base design. The rooftop ramps ensure maximum safety and minimum fuss during installation and use. With three different configurationsĀ to clear heights of up to 36 inches, the KBR1200 rooftop ramps will guarantee the highest level of access for your specific needs.Ā One of the key features of the KBR1200 Ramp System is its non-penetratingĀ base design. This means that during installation, there is no need toĀ penetrate the rooftop, ensuring its integrity and preventing any potentialĀ damage. Other mounting options are available as needed.

Kattsafe ladder systems are designed and manufactured to meet and exceedĀ requirements of OSHA standard 1910.23, 1910.28, and CAL-OSHA 3277 asĀ applicable.
  • 1000lb Working Load Limit
  • Surface: Aluminum walkway grating. 1/2in (13mm) thick mesh, Aluminum 6063-T4
  • Brackets: Mount to stringer with 3/8in (9.5mm) stainless steel Kattsafe T-bolts
  • Platform to ramp connections: 80mm extrusion, 10-degree angle bracket
  • Degree of Incline: 10 degrees +/- 1 degree
  • Framing and Post Supports: 3-1/8in x 1-1/2in Aluminum stringer grade 6005-T5
  • Platform Dimension: 48in wide x 48-1/16in long
  • Clearance Heights: 12in, 24in, 36in. Taller clear heights require a custom ramp
    system
  • Base Details: 7-1/8in x 1-1/4in Aluminum base grade 6005-T5

Data Sheet (pdf)

KBR1200.12 Drawing (pdf)

KBR1200.24 Drawing (pdf)

KBR1200.36 Drawing (pdf)

5 years from date of purchase subject to installation, use, and maintenance in accordance with manufacturerā€™s specifications and recommendations.
