Home » MFB 500 MaxX Fixed Beam – Tecnomagnete
Tecnomagnete

MFB 500 MaxX Fixed Beam – Tecnomagnete

SKU: MFB500
$1,754.00
Estimated Lead Time:Typically ships in 1 to 2 days

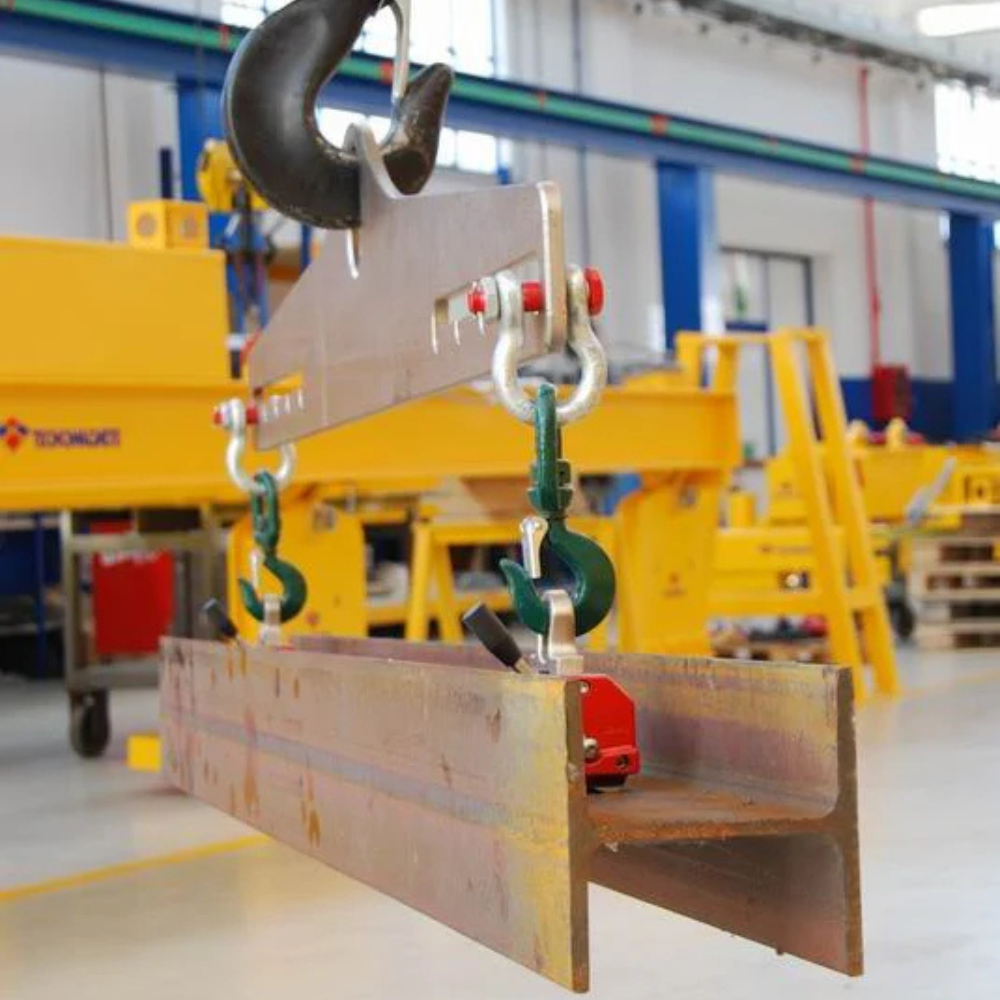

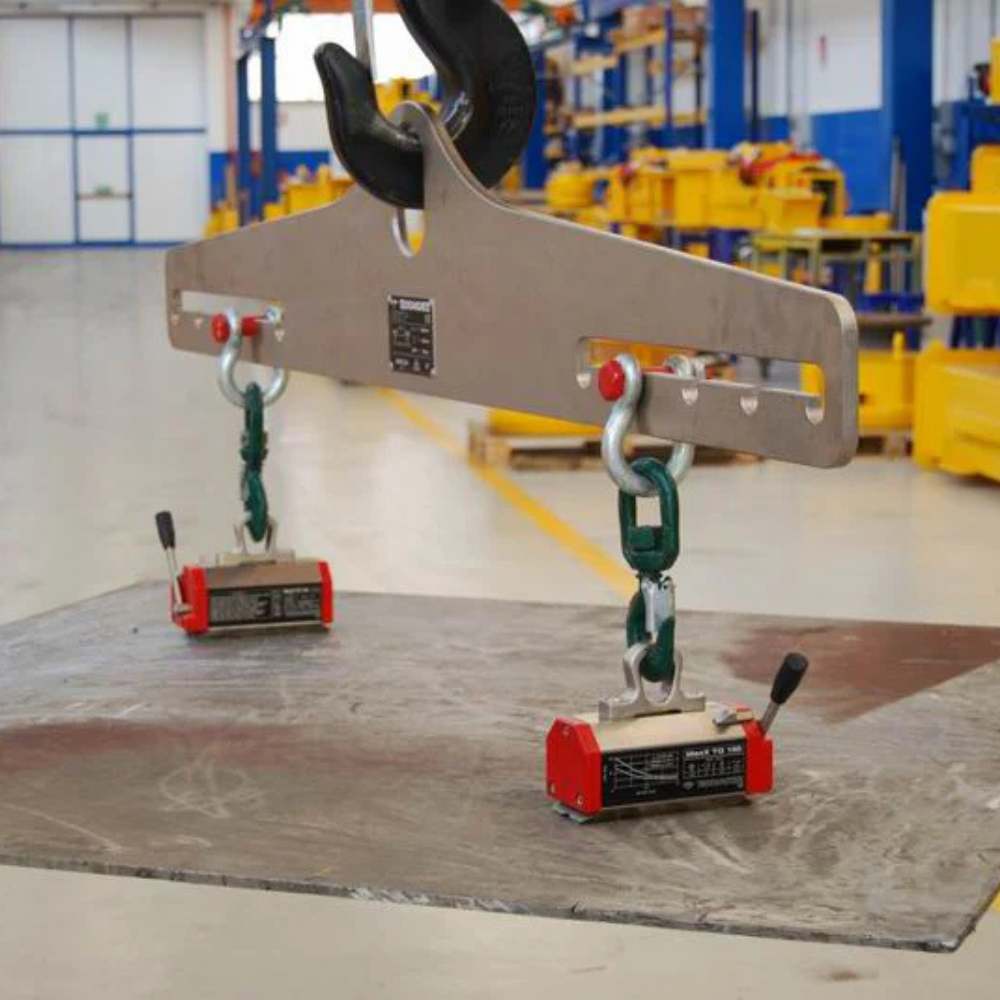

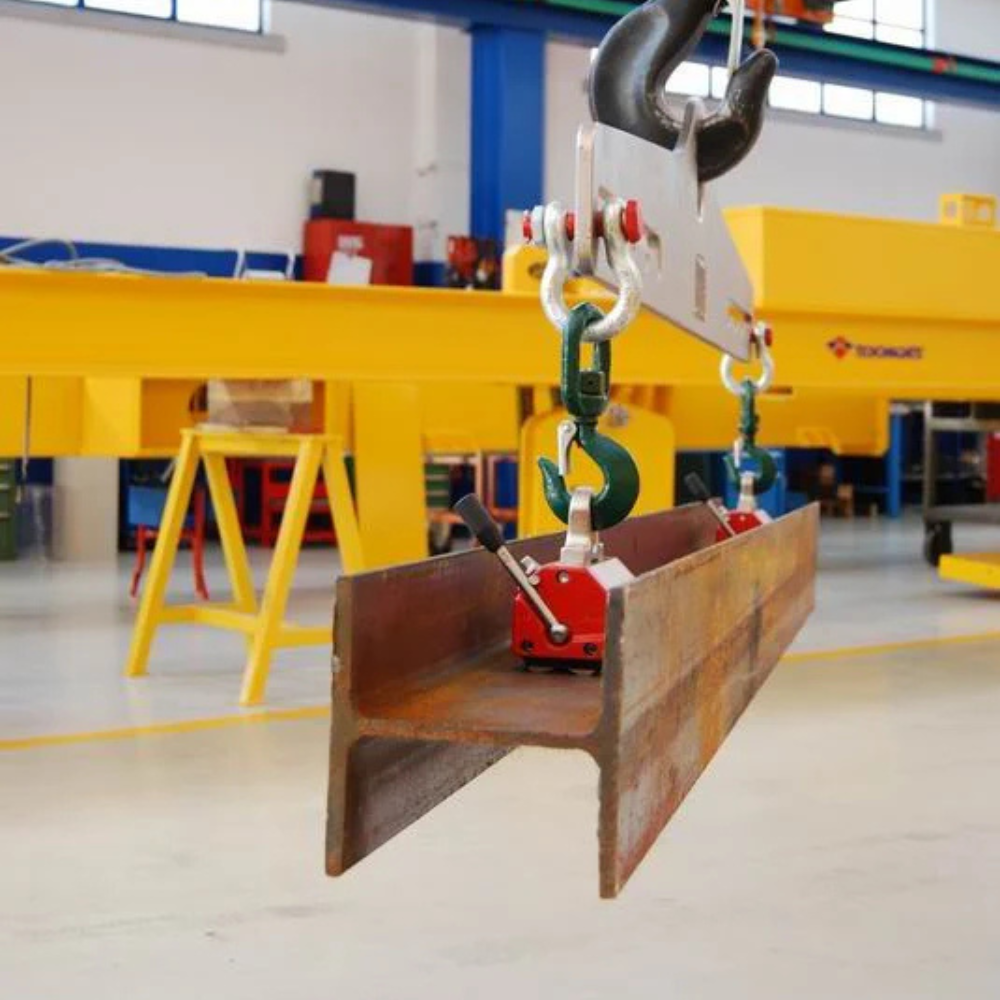

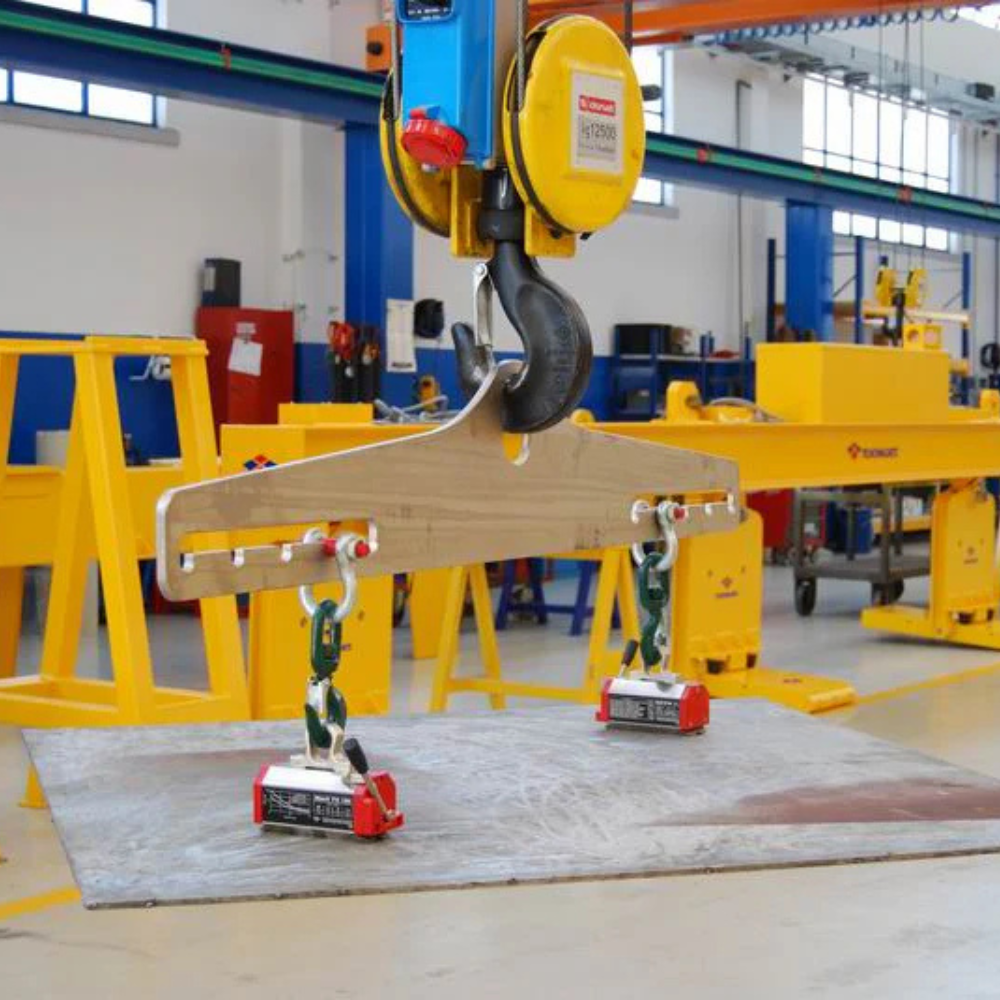

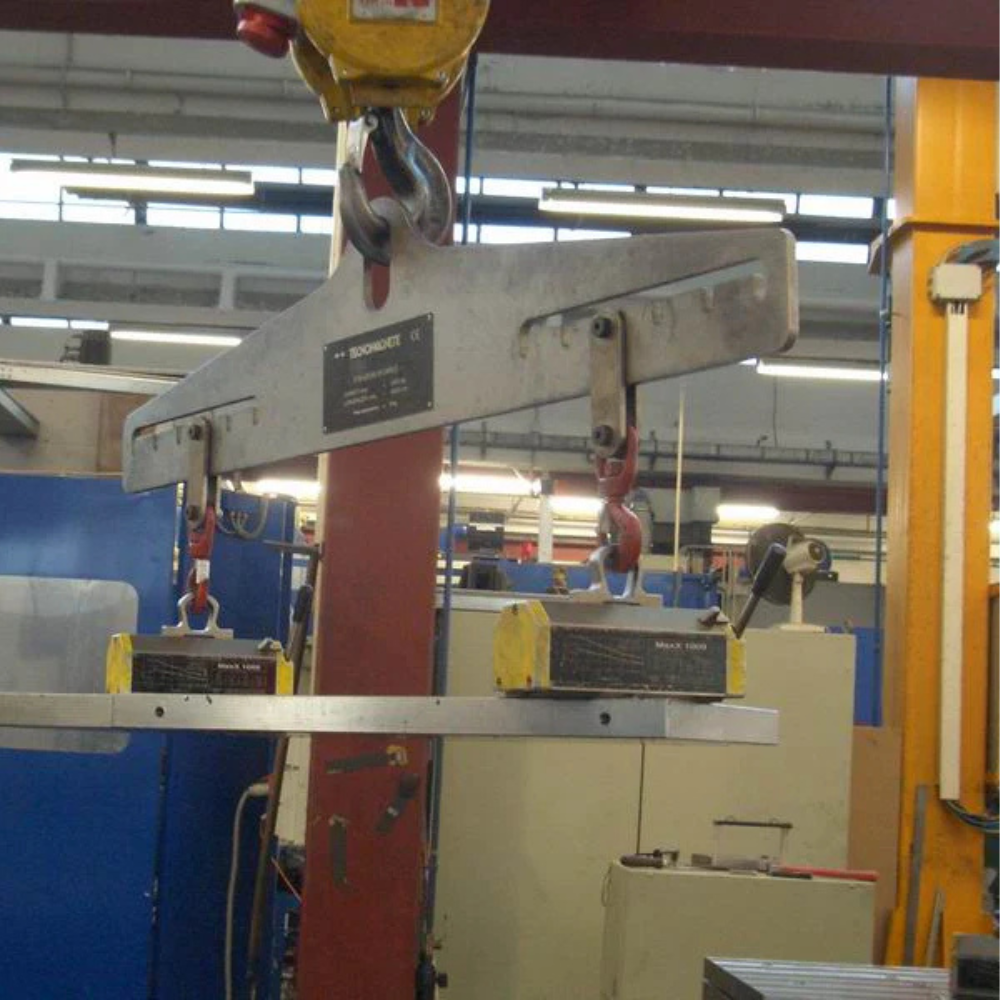

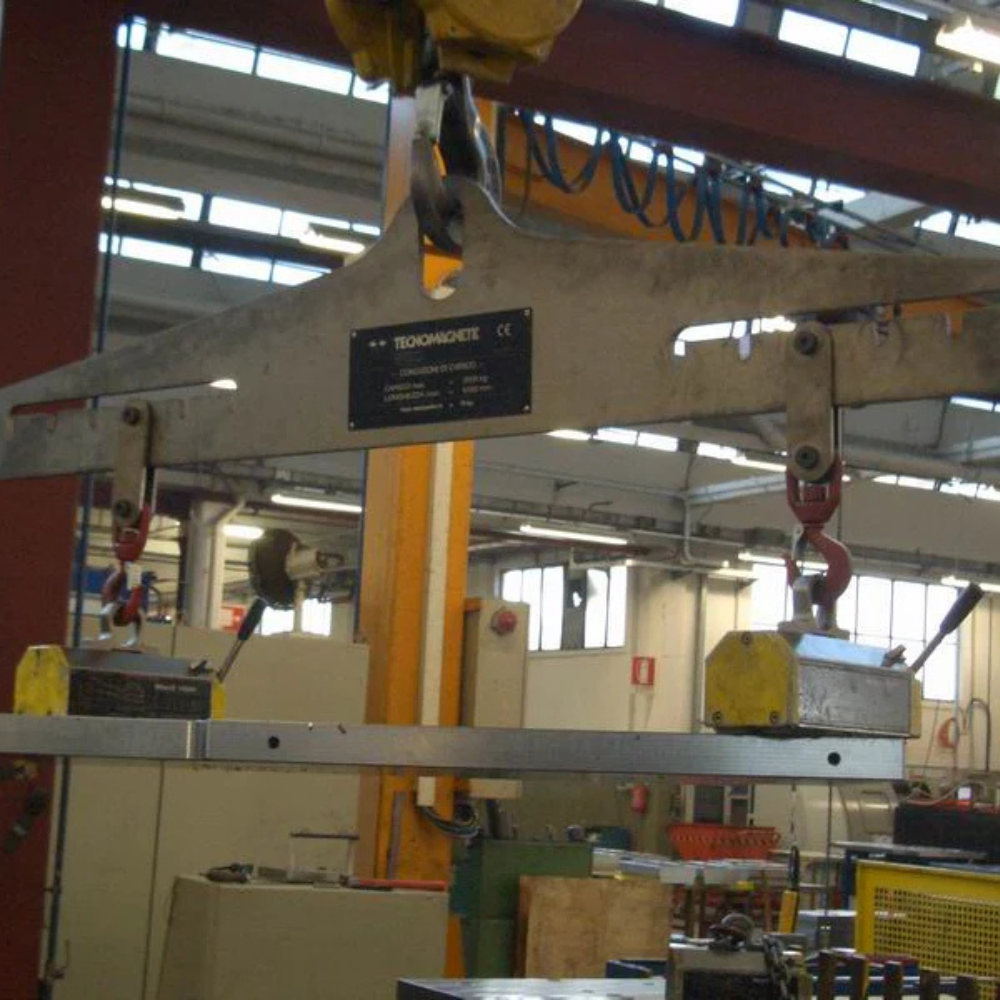

The Tecnomagnete MFB 500 MaxX Fixed Beam is engineered for the horizontal handling of large steel loads by securely coupling compatible MaxX magnetic lifters into a stable lifting system. Designed for improved load distribution and controlled handling, the MFB system enables efficient movement of oversized workpieces in industrial material handling applications.

The beam includes two lifting hooks with five predefined positioning slots, allowing the spacing between hooks to be adjusted quickly for different load sizes and lifting requirements. Compatible with a range of MaxX and MaxX TG magnetic lifter models, the MFB500 provides flexible lifting configurations while maintaining safe and reliable operation.

Designed for horizontal movement of large loads, the MFB500 fits compatible MaxX models and supports the handling of both flat and round materials with improved stability and positioning control.
  • Brand: Tecnomagnete
  • A dimension: 66.14 in
  • B dimension: 11.81 in
  • C dimension: 5.12 in
  • D dimension: 0.59 in
  • Weight: 81.57 lb
  • Flat load capacity: 1100 lb
  • Round load capacity: 600 lb
  • Lifter weight: 81 lb

Compatibility & Capacity

  • Compatible models: 2 MaxX 250
  • Max length: 118.11 in
  • Max width: 59.06 in
  • Max flat load (WLL): 880 lb
  • Max round load (WLL): 440 lb

Compatible models: 2 MaxX 300

  • Max length: 118.11 in
  • Max width: 59.06 in
  • Max flat load (WLL): 1100 lb
  • Max round load (WLL): 550 lb

Compatible models: 2 MaxX TG150

  • Max length: 118.11 in
  • Max width: 59.06 in
  • Max flat load (WLL): 440 lb
  • Max round load (WLL): 220 lb

Compatible models: 2 MaxX TG300

  • Max length: 118.11 in
  • Max width: 59.06 in
  • Max flat load (WLL): 1100 lb
  • Max round load (WLL): 550 lb

Product Brochure (PDF)

5 Year Manufacturer Warranty
