Ironworkers Bolt-on D-Ring Anchor, 13/16" Hole (20-Pack) – 7439A20 – FallTech

SKU: 7439A20
$1,095.20
Estimated Lead Time:1 to 2 Days

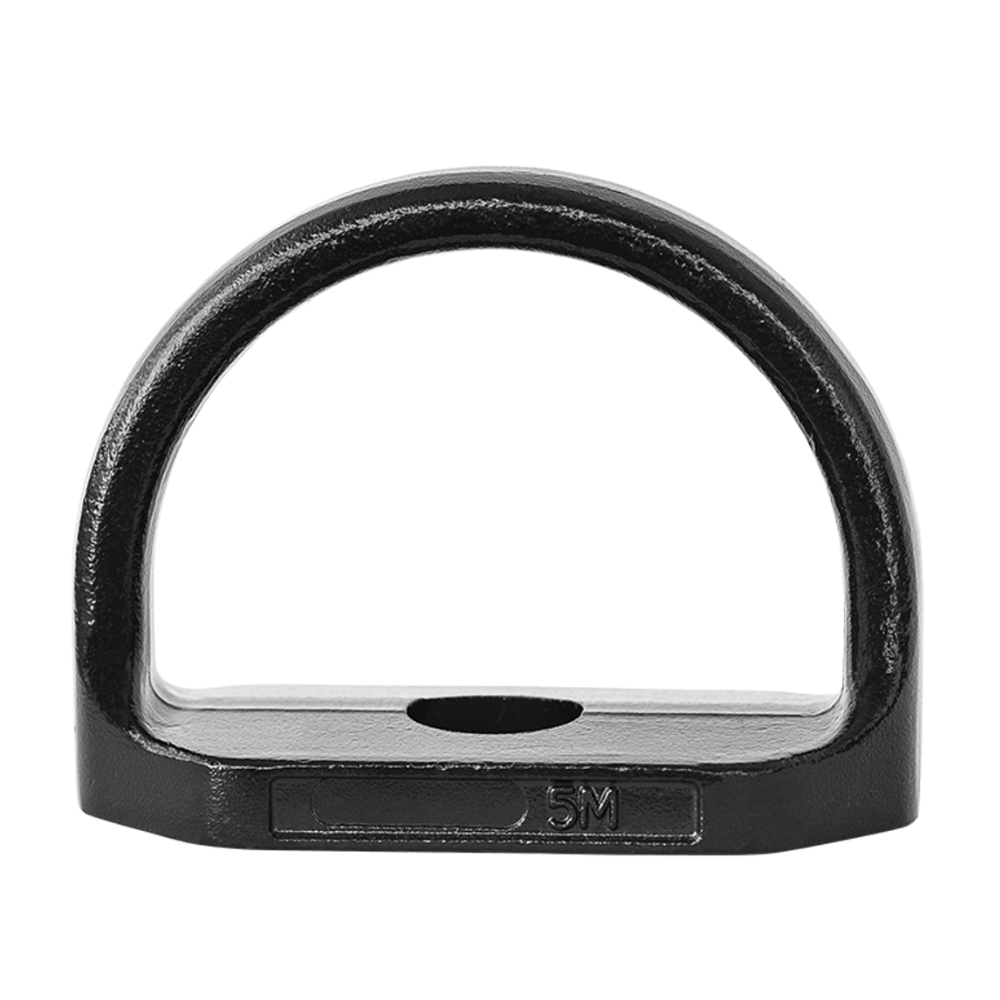

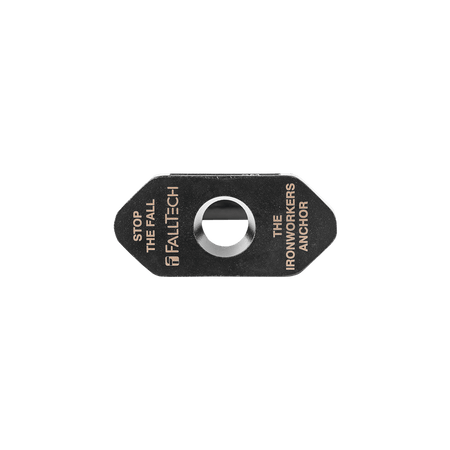

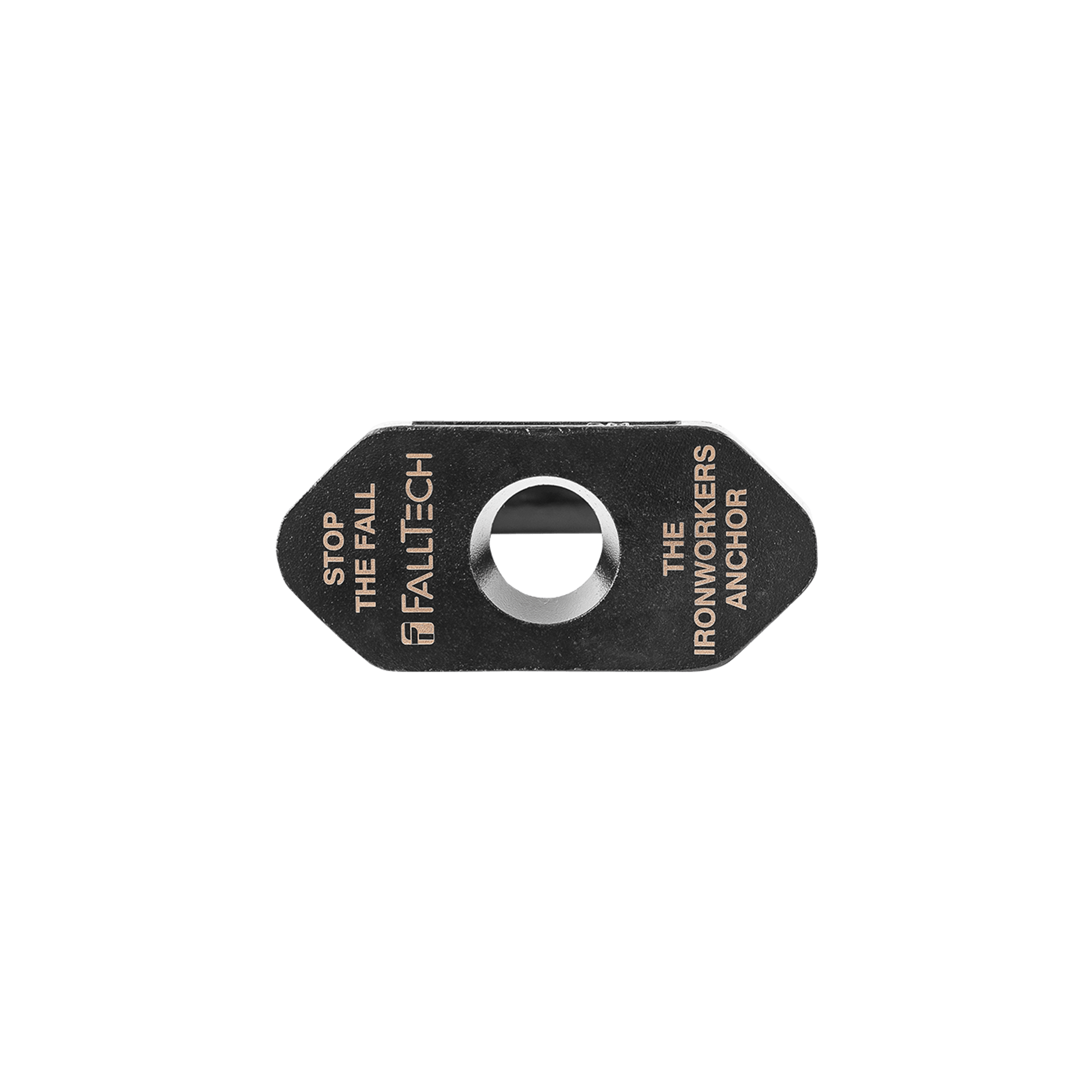

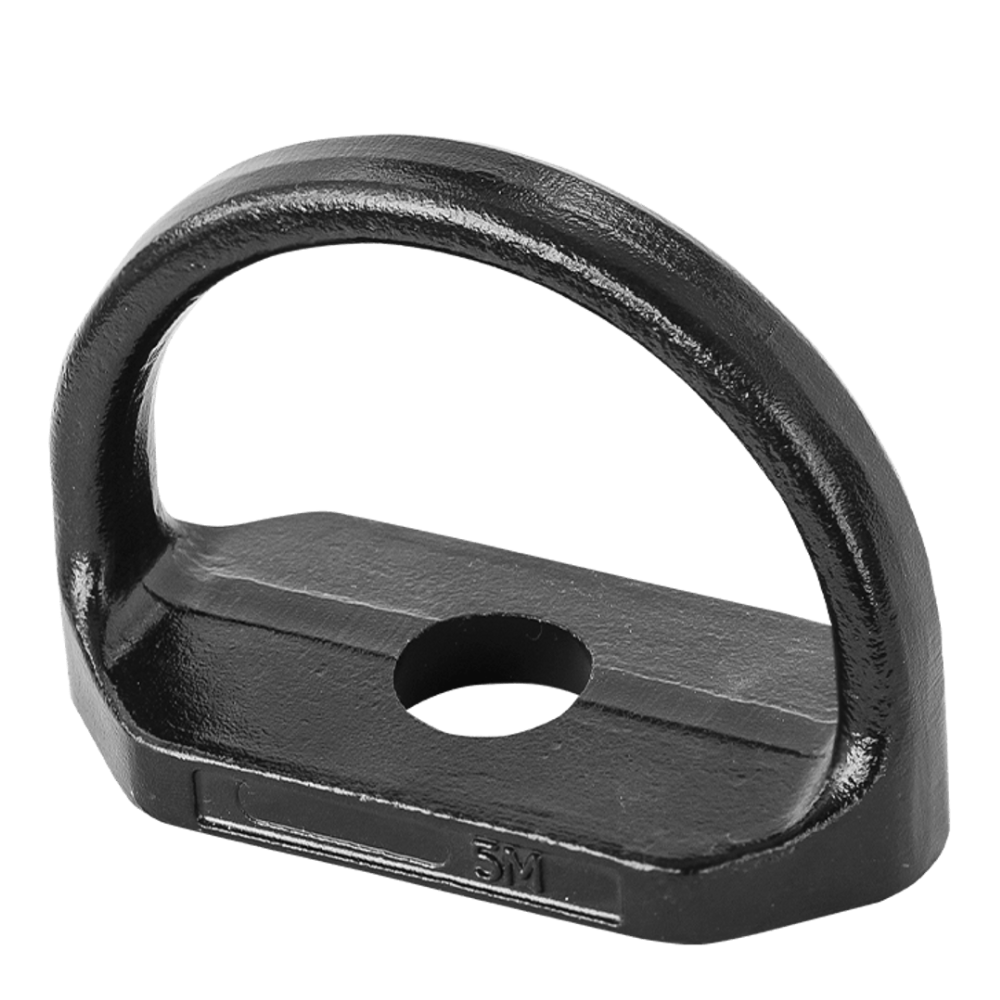

The FallTech 7439A20 Ironworkers Bolt-on D-Ring Anchor is a heavy-duty forged anchorage connector designed for both temporary and permanent installation on steel structures. Its large 2-1/4" x 3-1/4" internal opening provides ample space for easy attachment of hooks and carabiners. The 13/16" countersunk bolt hole supports secure mounting with user-supplied fasteners. Built from plated alloy steel, each anchor delivers a minimum 5,000 lb static strength and meets ANSI Z359.18-2017 requirements.
  • Product Code: 7439A20
  • Anchor Material: Plated alloy steel
  • D-Ring Opening: 2-1/4" x 3-1/4"
  • Bolt Hole: 13/16" countersunk
  • Static Strength: 5,000 lb min
  • User Capacity (ANSI): 130–310 lb
  • User Capacity (OSHA): 130–425 lb
  • Compliance: ANSI Z359.18-2017; OSHA 1926.502 & 1910.140
  • Weight: 29 lbs

User Manual (PDF)
