Horizontal Side Flange - EF14G - Easyfit

SKU: EF14G-25
$30.10
Size
Estimated Lead Time:3 to 5 Days

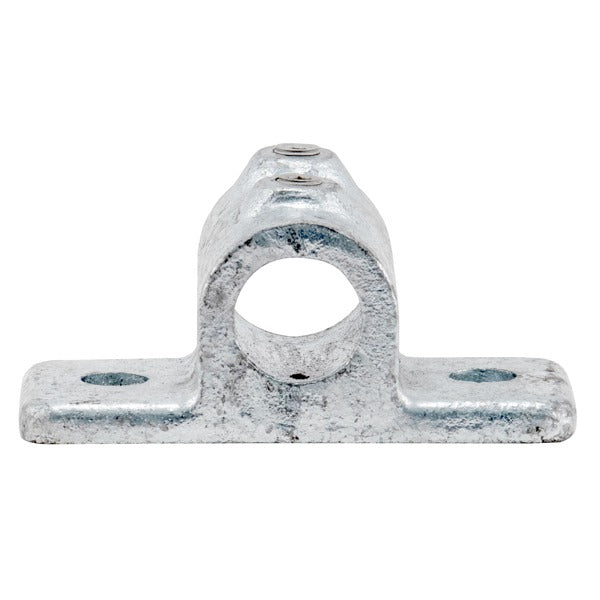

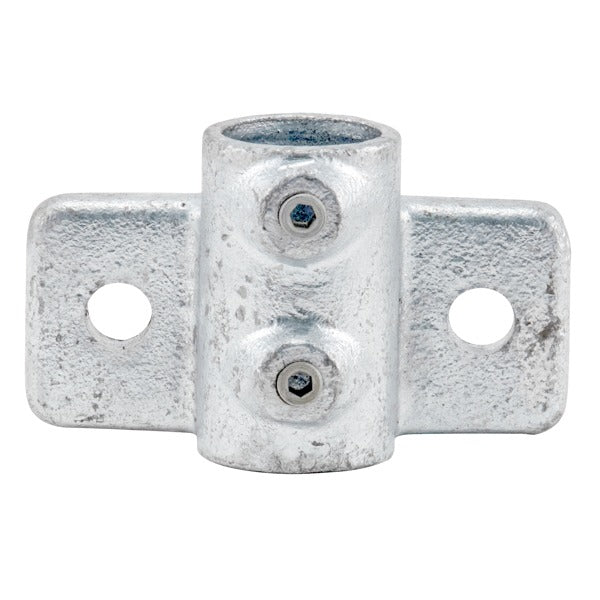

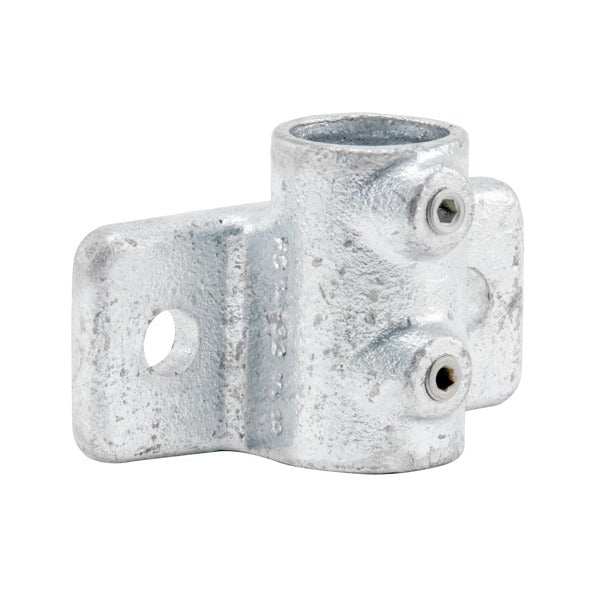

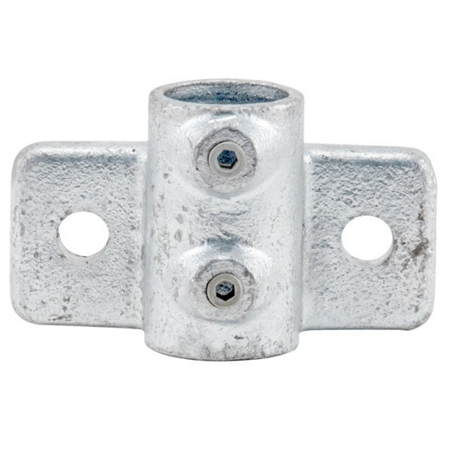

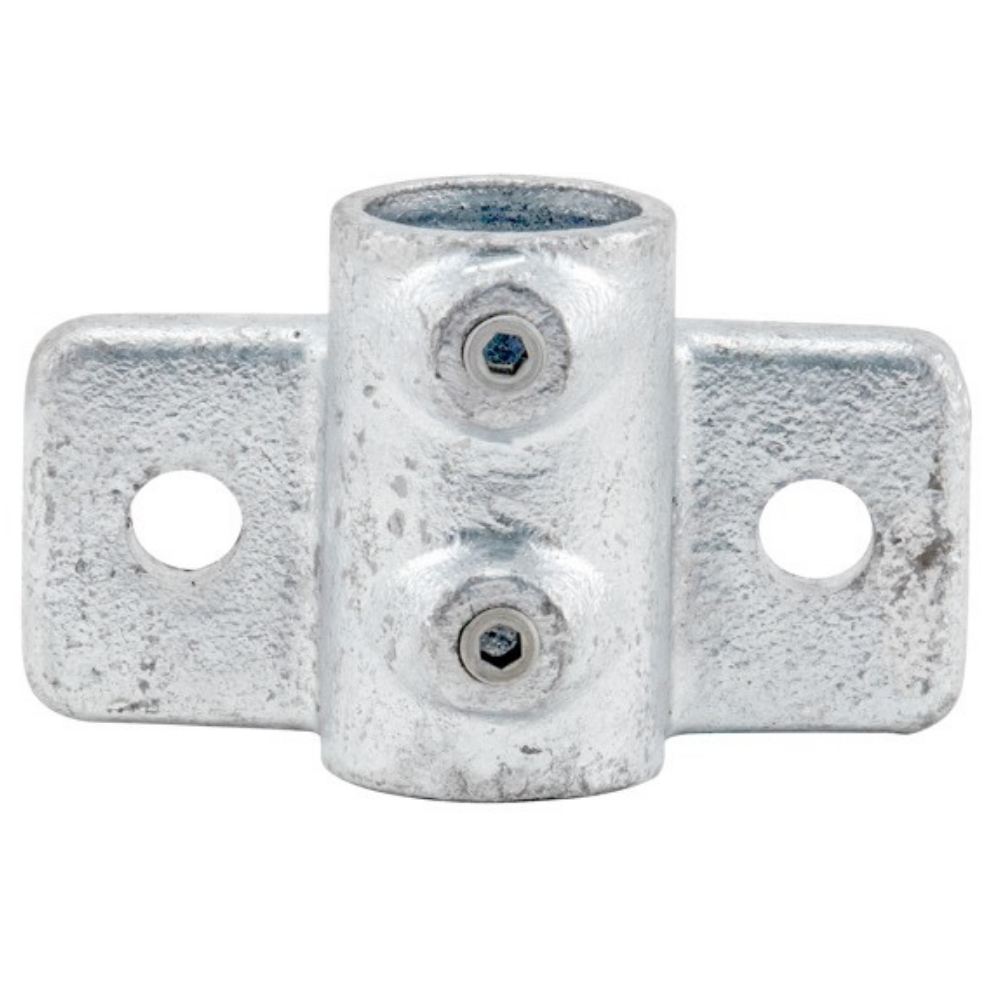

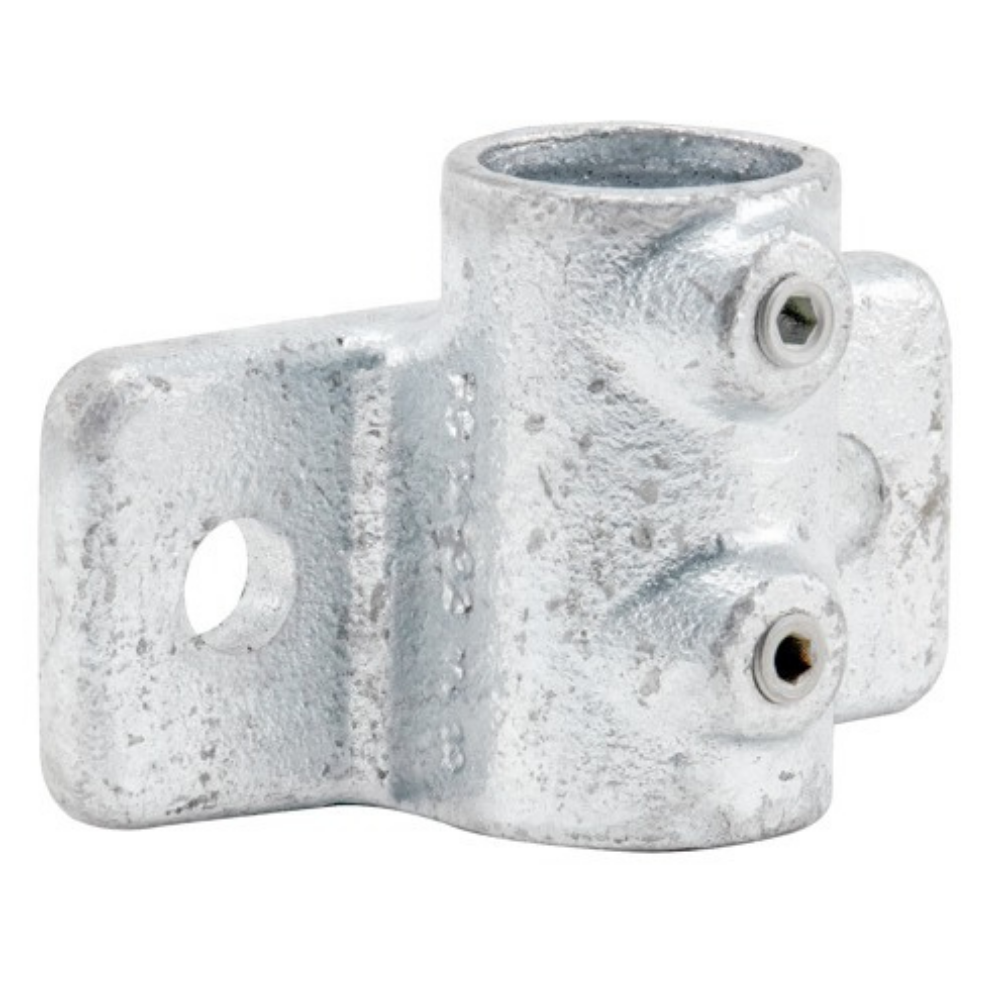

The Easyfit Horizontal Side Flange (EF14G) is designed for side-mounting vertical posts to structural beams or walls when a surface-mounted base is not practical. This fitting secures the post in place without allowing it to pass through, making it ideal for applications where clearance or aesthetics are a concern.

Constructed from galvanized cast iron and hot-dip galvanized to BS EN ISO 1461 standards, the EF14G delivers strong corrosion resistance and long-term durability in both indoor and outdoor environments. It installs easily with two 11/16" diameter anchors and a standard hand tool—no welding needed.
  • Side-mounts vertical posts to structural beams or walls
  • Upright terminates at flange (does not pass through)
  • Ideal for limited clearance or side-mounted rail applications
  • Mounting hardware size: 2 @ 11/16" diameter
  • Hot dip galvanized for corrosion resistance
  • Indoor and outdoor use
  • No welding required
  • Installs with standard hand tools
  • Compatible with Easyfit structural tubing
