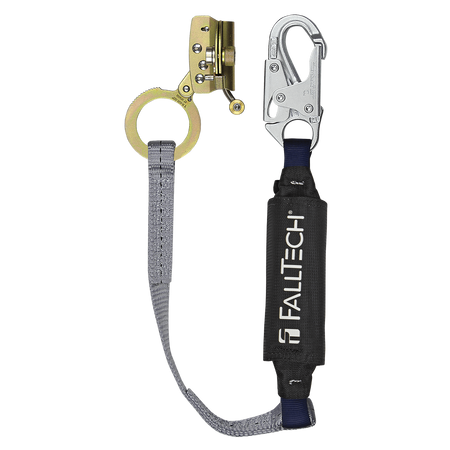

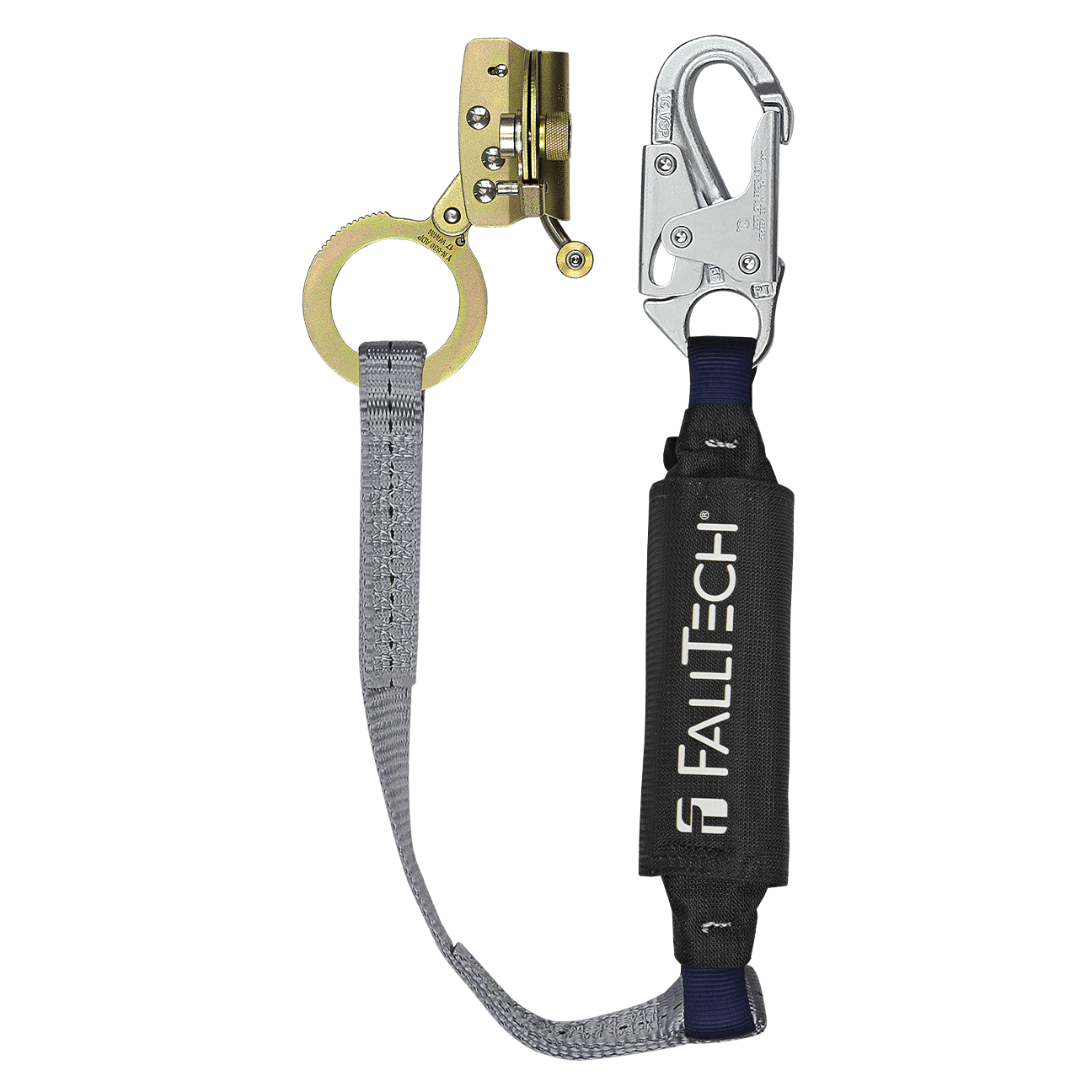

Hinged Trailing Fall Arrester with ViewPack Lanyard – 8388 – FallTech

SKU: 8388
$154.00
Estimated Lead Time:1 to 2 Days

The FallTech Hinged Trailing Fall Arrester with Anti-Panic and 3' ViewPack® Energy Absorbing Lanyard provides a high level of safety and mobility for vertical lifeline applications. The integrated anti-panic function delivers added protection by preventing improper operation during descent.

Its hinged design allows the user to install the arrester at any point along the lifeline, while the trailing mechanism smoothly follows the user during ascent and descent with minimal effort. The included energy absorber features FallTech’s patented ViewPack® cover with an inspection window for easy visual verification. Designed for use with 5/8" diameter synthetic rope lifelines, the system includes an alloy steel fall arrester for lifeline connection and a snap hook for harness attachment. The unit complies with ANSI Z359.15-2014 standards.
  • Product Type: Hinged Trailing Fall Arrester System
  • Compatible Lifeline: 5/8" synthetic rope
  • Webbing: Polyester; 5,000 lb minimum static strength
  • Energy Absorber: Polyester tear-away
  • Fall Arrester: 5/8" fall arrester/grab; plated alloy steel; 5,000 lb minimum strength
  • Connector: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Static Strength: 1,800 lb minimum
  • ANSI Lanyard Class: 6 ft free fall
  • Maximum Arrest Distance: 11 ft
  • Average Arrest Force: 900 lb
  • Maximum Arrest Force: 1,800 lb
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 310 lb maximum
  • Compliance: ANSI Z359.15-2014, CSA Z259.2.5-2017, OSHA 1926.502 and 1910.66
