Hinged Reusable Wood Roof Anchor – 7410 – FallTech

SKU: 7410
$36.80
Estimated Lead Time:1 to 2 Days

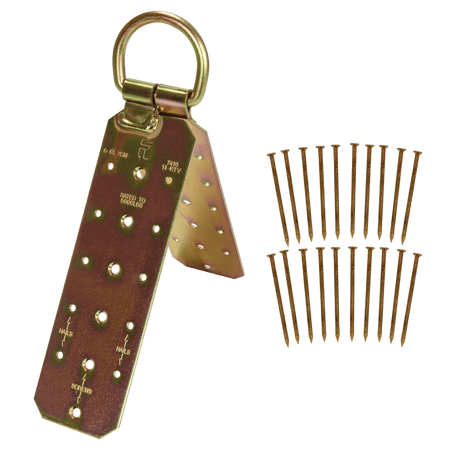

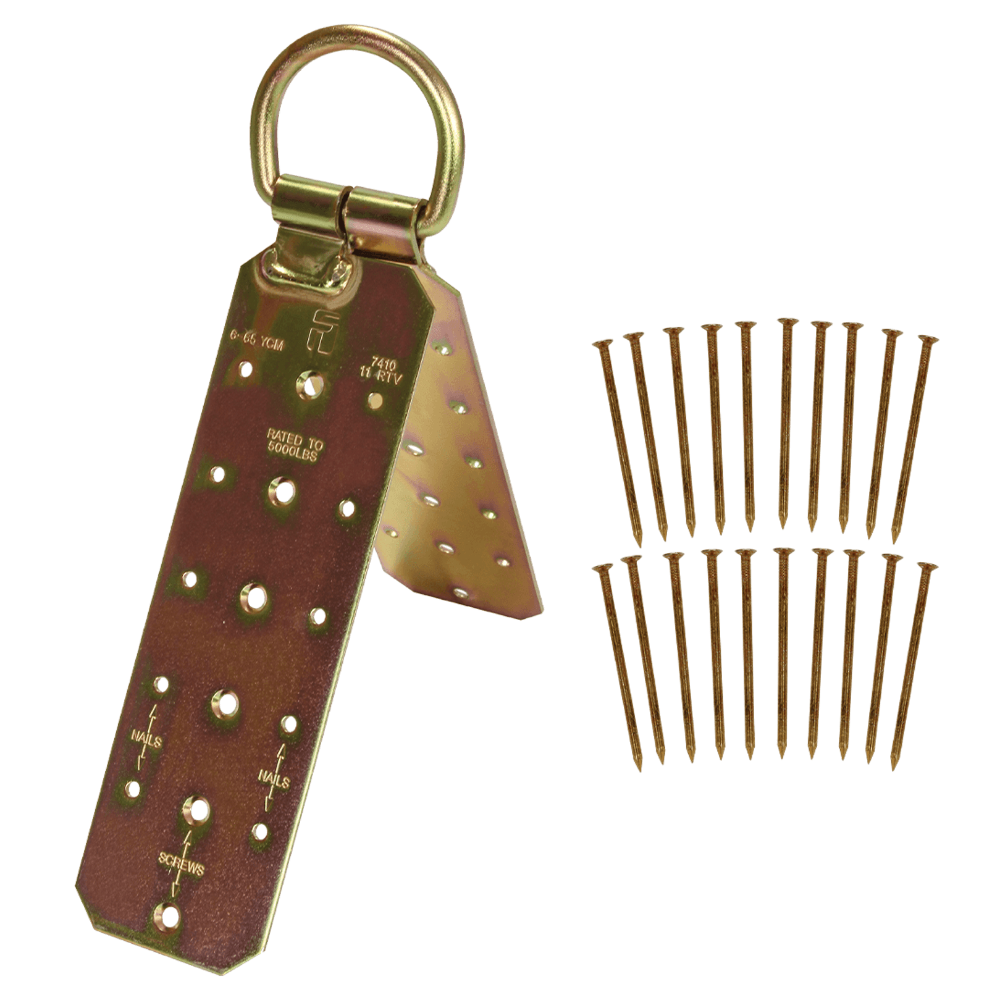

The FallTech 7410 Hinged Reusable Wood Roof Anchor is designed for temporary anchorage on wood-framed structures. Its hinged construction allows it to conform to flat or sloped roofs up to a 12/12 pitch. The anchor features 10-inch by 3-inch plates with a 2-1/4-inch connecting D-ring and includes 16D nails for installation at the ridge or in field locations.
  • Product Code: 7410
  • Plate Material: Plated alloy steel
  • D-Ring: Plated alloy steel; 5,000 lb minimum static strength
  • Roof Pitch Compatibility: Up to 12/12
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lbs
  • OSHA User Capacity: 130 to 425 lbs
  • Compliance: OSHA 1926.502 and 1910.66
  • Weight: 2.79 lbs each

User Manual (PDF)
