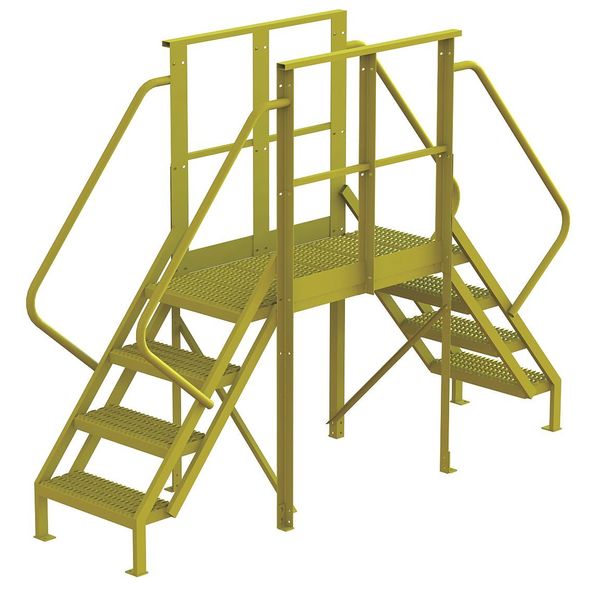

Ballymore Heavy Duty Industrial Crossovers provide safe walkways over a variety of obstacles such as conveyors, machines, and pipes.
- 800 lb. rated capacity.
- Stair sections have 10” step spacing with 9” of horizontal run per step.
- Stairway slope allows forward facing descent.
- Full rails, midrails and toeboards.
- Structural frame and rails are heavy 1-1/4” schedule 40 pipe.
- Each stair section has four legs with large, pre-drilled plates to bolt to the floor.
- Gray powder coat finish.
- Ships unassembled.
- Crossover Bridges meet applicable OSHA and ANSI standards.
* Lead Time: 1 to 3 Weeks
