Galvanized Combination Cylinder Storage Cabinet – 8 Horizontal & 9 Vertical Cylinder Capacity – CYL-T-COMBO – Vestil

SKU: CYL-T-COMBO
Regular price $1,708.53
Estimated Lead Time:6-8 Weeks

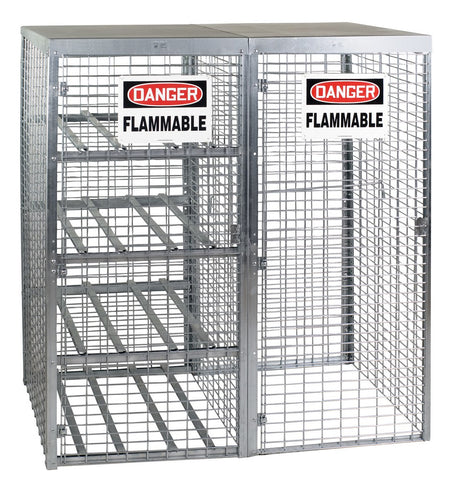

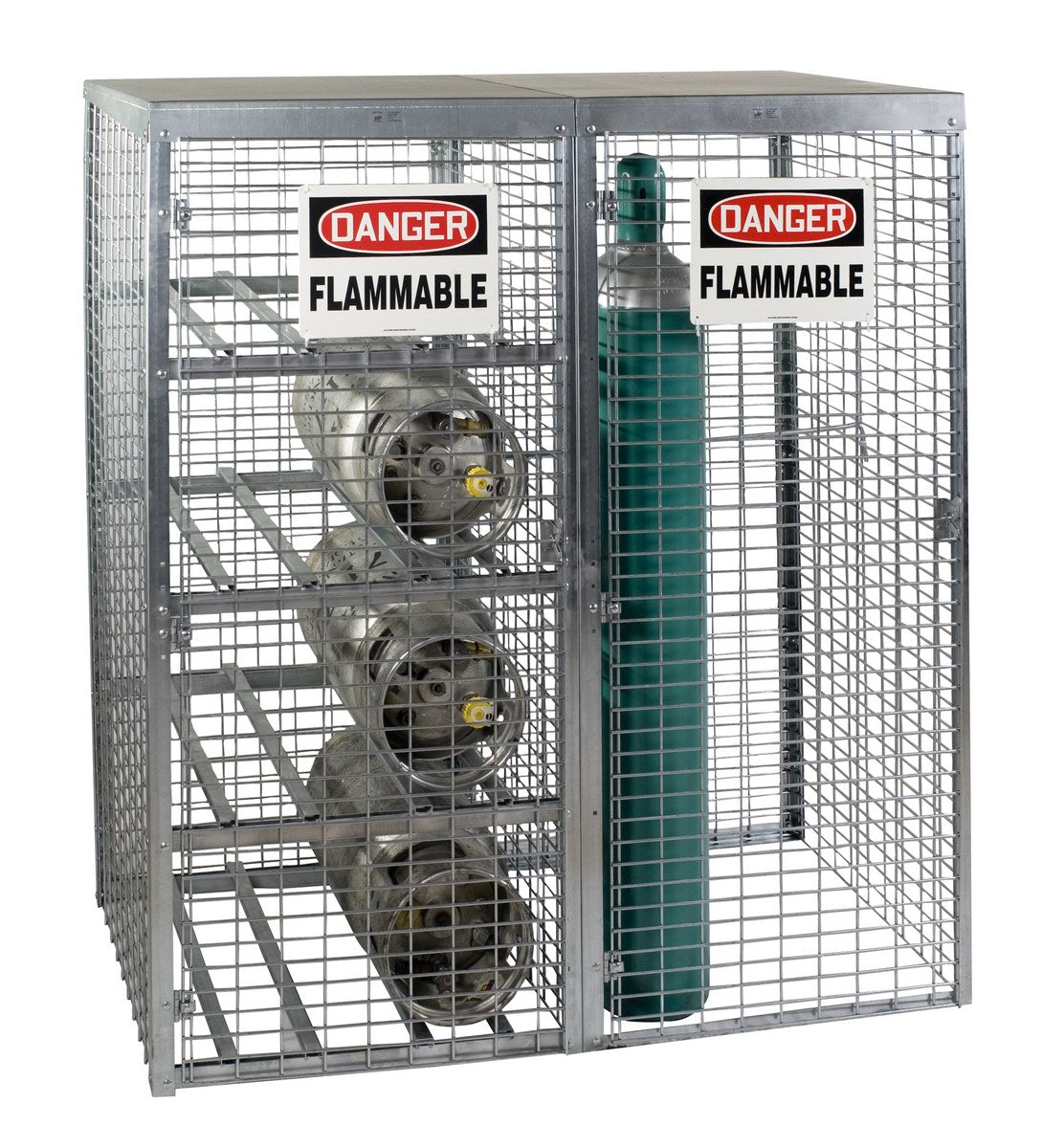

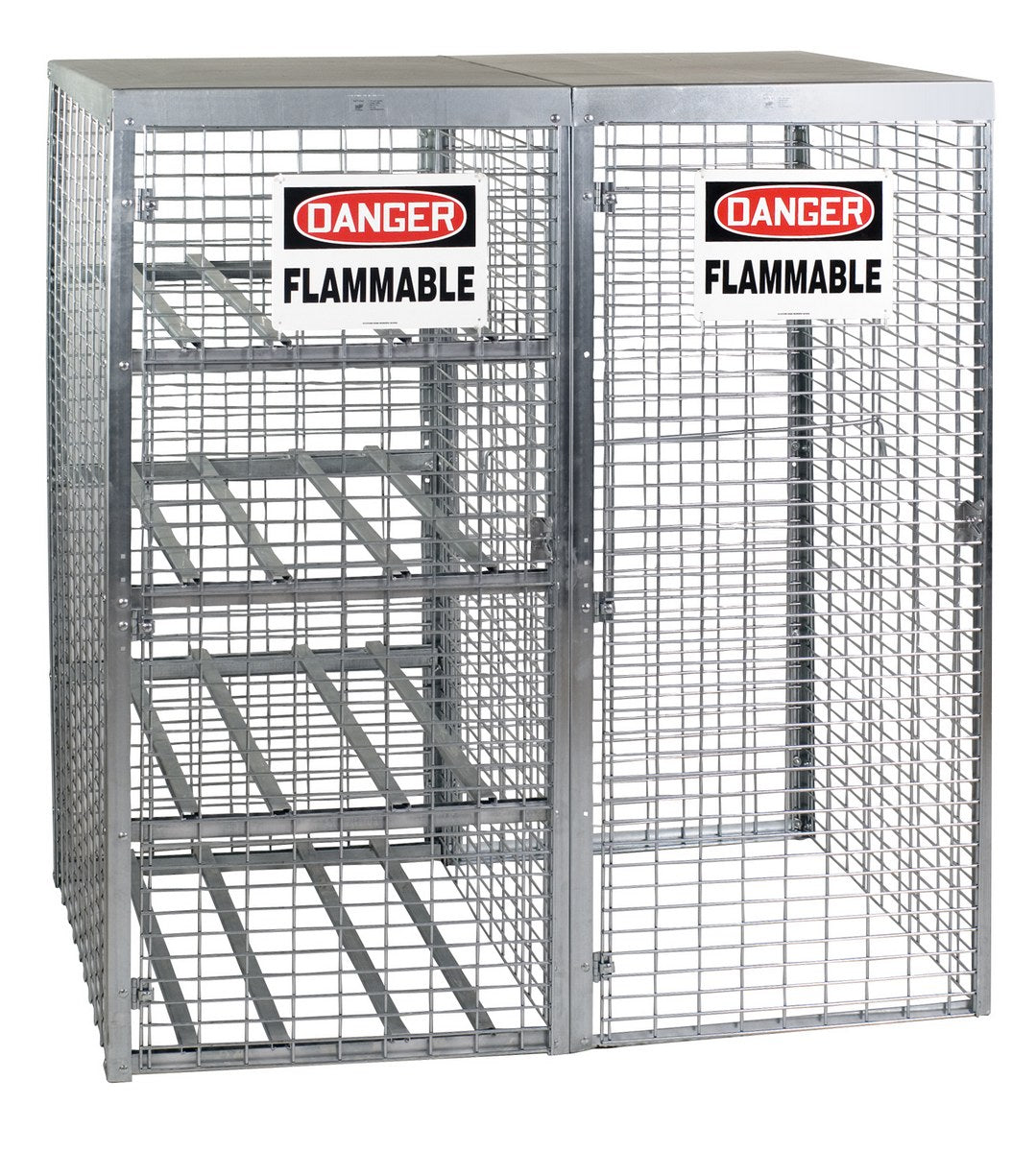

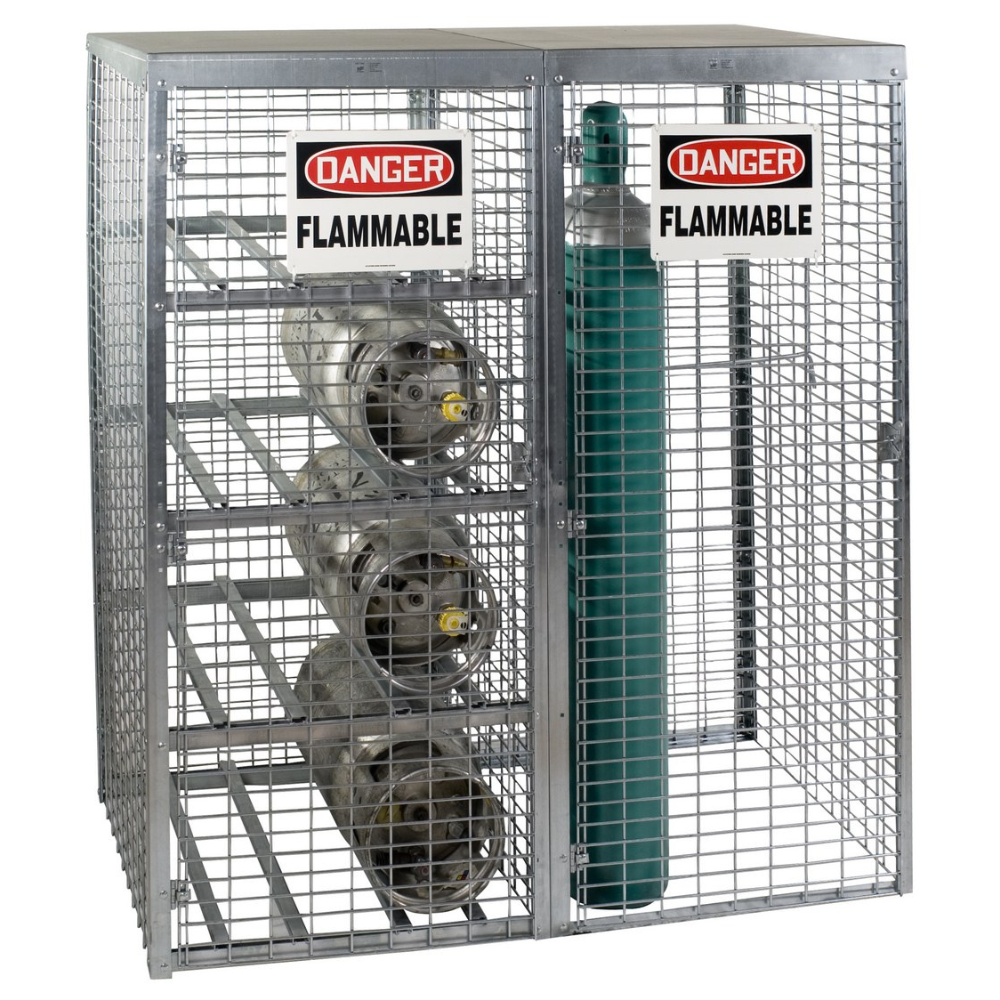

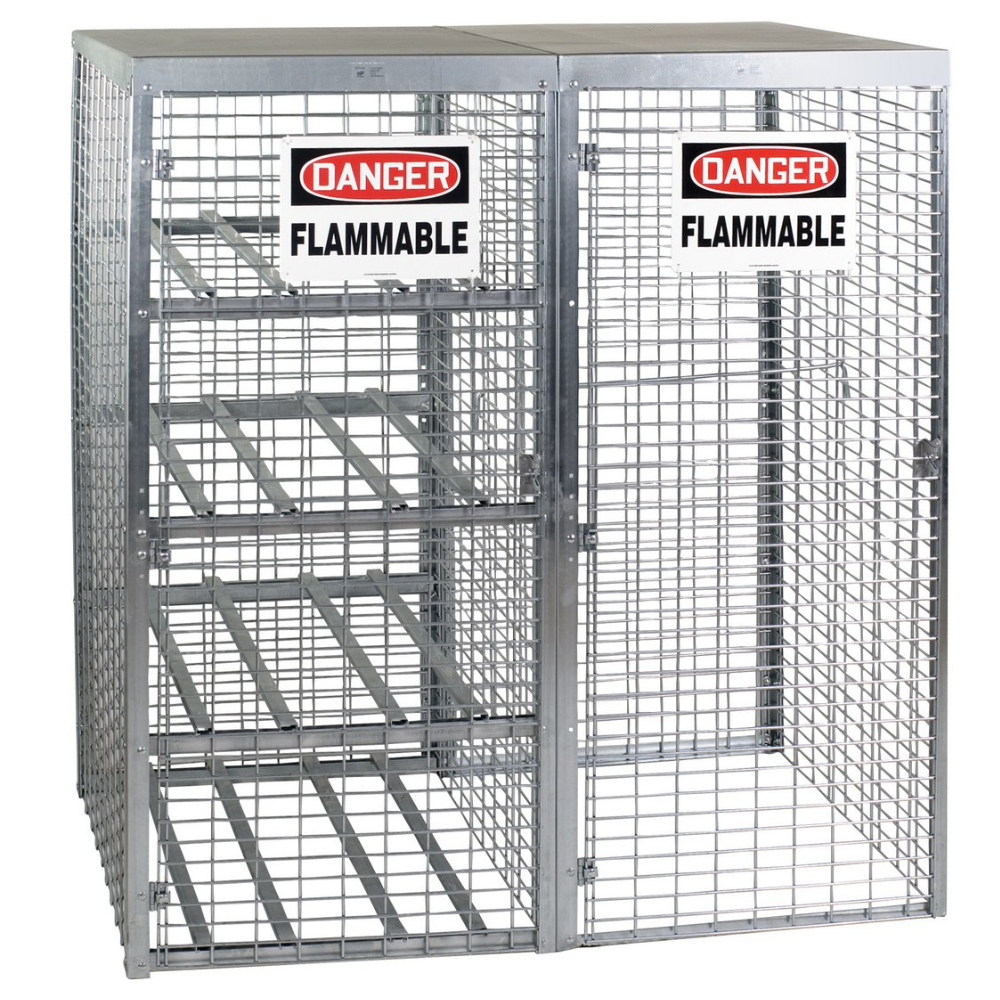

The Vestil CYL-T-COMBO Galvanized Cylinder Storage Cabinet is designed for combination storage, holding up to eight cylinders horizontally and nine cylinders vertically. It is built with galvanized welded wire sides, a galvanized steel roof, and a square steel angle frame for strength and durability.

The cabinet includes two hinged doors with a padlock hasp (padlock not included), a DANGER FLAMMABLE MATERIALS sign, and all required hardware. Its galvanized finish provides rust resistance for outdoor use. The cabinet meets OSHA 1910.110, NFPA 55 and 58, and CGA P-1 requirements.

  • Model Number: CYL-T-COMBO
  • Cylinder Capacity: 8 (horizontal) & 9 (vertical)
  • Weight Capacity: 850 lbs
  • Number of Doors: 2 (hinged, lockable)
  • Material: Galvanized Steel, 18-gauge
  • Frame Size: 1.5 in
  • Roof Gauge: 12
  • Finish: Galvanized
  • Compliances: OSHA 1910.110, NFPA 55 & 58, CGA P-1
  • Assembled Dimensions: 58 in × 29 in × 66 in, 210 lbs
  • Package Dimensions: 63 in × 31 in × 12 in, 244 lbs

Manufacturer Warranty: 90 Days Limited – Parts
