Flush-Mount Stainless Steel Cast-In Fixed Davit Base – 65030CFS – FallTech

SKU: 65030CFS
$1,716.80
Estimated Lead Time:3 to 5 Days

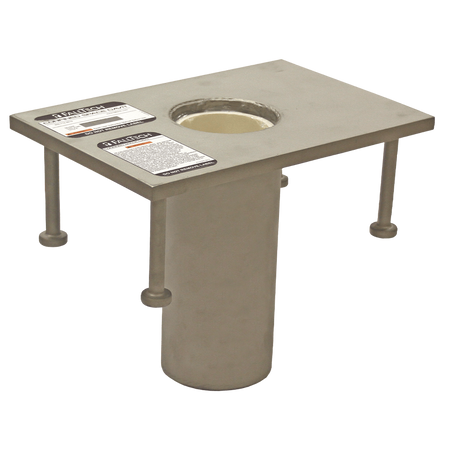

The FallTech 65030CFS Flush-Mount Cast-In Fixed Davit Base is designed for permanent installation in new concrete construction, providing a durable anchoring point for recurring access locations. Its 8" × 12" stainless steel plate with 4" support rods offers long-term structural reliability, while the flush floor profile helps reduce tripping hazards in high-traffic areas. The 9" deep sleeve with PVC insert supports secure attachment of davit arms and mast extensions. When integrated into a complete system, it meets OSHA 1926.502 and 1910.66 regulations.
  • Product Code: 65030CFS
  • Base Material: 304 stainless steel
  • Sleeve Material: PVC
  • Base Plate Size: 8 in × 12 in
  • Sleeve Depth: 9 in
  • Rated Capacity: 620 lb at 4:1 design factor
  • Mast Moment Proof Load: 6,167 ft-lb
  • Mast Rotation: 360°
  • Compliance: OSHA 1926.502 and 1910.66 (when part of a complete system)
  • Weight: 21.5 lbs
