Flush-Mount Plated Steel Bolt-On Fixed Davit Base – 65020BFZ – FallTech

SKU: 65020BFZ
$932.00
Estimated Lead Time:3 to 5 Days

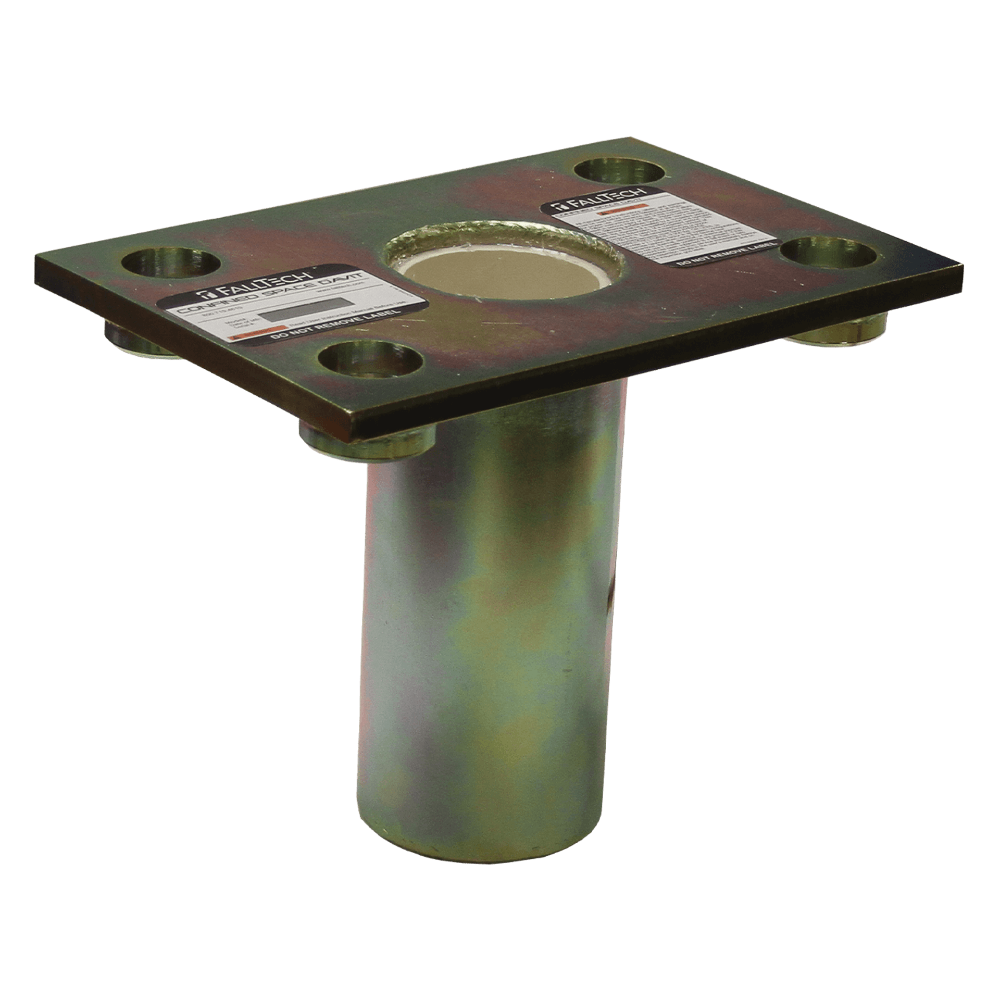

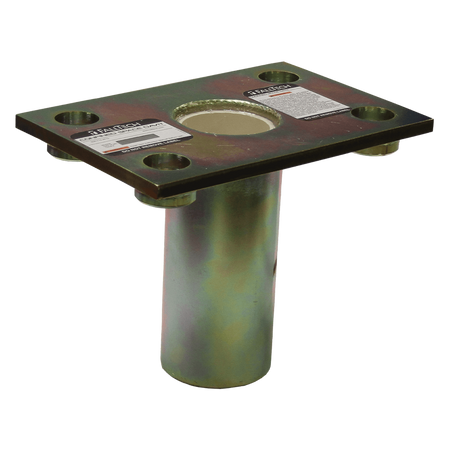

The FallTech 65020BFZ Flush-Mount Bolt-On Fixed Davit Base is designed for permanent installation at recurring access locations. Its low-profile, flush-mounted design minimizes tripping hazards, making it ideal for high-traffic areas. The 8" × 12" plated steel base plate and 9" deep sleeve with PVC insert provide a secure, long-lasting anchoring point for davit arms and mast extensions. Suitable for installation on existing steel or concrete surfaces, the system requires user-supplied fasteners. When used with compatible davit arms and mast extensions, it meets OSHA 1926.502 and 1910.66 requirements.
  • Product Code: 65020BFZ
  • Base Material: Plated carbon steel
  • Sleeve Material: PVC
  • Base Plate Size: 8 in × 12 in
  • Sleeve Depth: 9 in
  • Rated Capacity: 620 lb at 4:1 design factor
  • Mast Moment Proof Load: 6,167 ft-lb
  • Mast Rotation: 360°
  • Compliance: OSHA 1926.502 and 1910.66 (when part of a complete system)
  • Weight: 23 lbs

Product Brochure (PDF)
User Manual (PDF)
