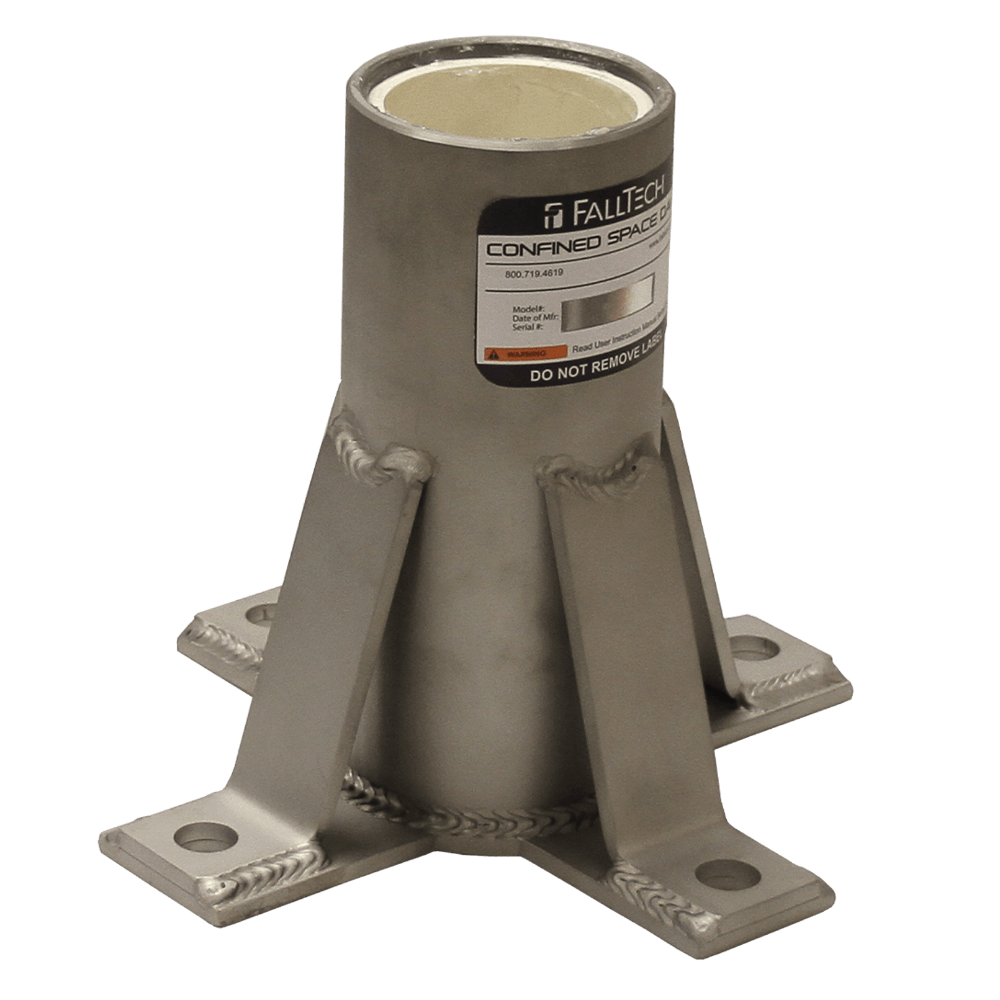

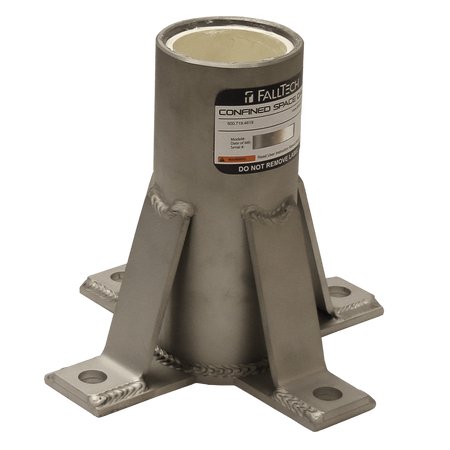

Floor-Mount Stainless Steel Bolt-On Fixed Davit Base – 65060FMS – FallTech

SKU: 65060FMS
Regular price $1,245.60
Estimated Lead Time:3 to 5 Days

The FallTech 65060FMS Floor-Mount Bolt-On Fixed Davit Base provides a permanent and durable anchoring solution for recurring access locations. Designed for installation onto existing steel or concrete surfaces, the stainless steel construction ensures long-term performance in demanding environments. The 9-inch deep sleeve with PVC insert supports secure attachment of compatible davit arms and mast extensions. This requires user-supplied fasteners for installation. When used as part of a complete davit system, it meets OSHA 1926.502 and 1910.66 regulations.

  • Product Code: 65060FMS
  • Base Material: 304 stainless steel
  • Sleeve Material: PVC
  • Mount Type: Bolt-on floor installation
  • Sleeve Depth: 9 in
  • Rated Capacity: 620 lb at 4:1 design factor
  • Mast Moment Proof Load: 6,167 ft-lb
  • Mast Rotation: 360°
  • Compliance: OSHA 1926.502 and 1910.66 (when part of a complete system)
  • Weight: 13.5 lbs
