Floor-Mount Plated Steel Bolt-On Fixed Davit Base – 65060FMZ – FallTech

SKU: 65060FMZ
$586.40
Estimated Lead Time:3 to 5 Days

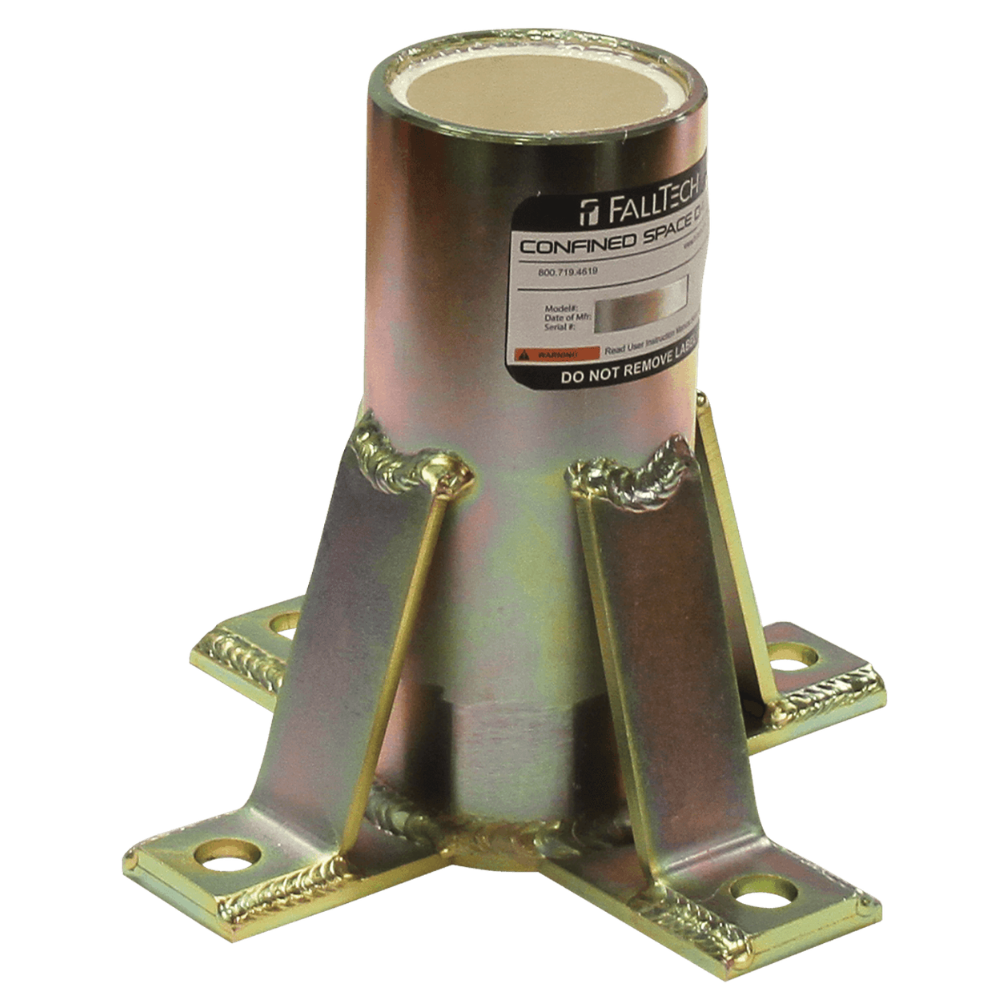

The FallTech 65060FMZ Floor-Mount Bolt-On Fixed Davit Base provides a permanent anchoring solution for recurring access and confined space locations. Designed for installation onto existing steel or concrete surfaces, the plated carbon steel construction ensures durability and long service life. The 9-inch deep sleeve with a PVC insert offers a secure connection point for compatible davit arms and mast extensions. This requires user-supplied fasteners for installation. When integrated into a complete system, it meets OSHA 1926.502 and 1910.66 requirements.
  • Product Code: 65060FMZ
  • Base Material: Plated carbon steel
  • Sleeve Material: PVC
  • Mount Type: Bolt-on floor installation
  • Sleeve Depth: 9 in
  • Rated Capacity: 620 lb at 4:1 design factor
  • Mast Moment Proof Load: 6,167 ft-lb
  • Mast Rotation: 360°
  • Compliance: OSHA 1926.502 and 1910.66 (when part of a complete system)
  • Weight: 14 lbs

Product Brochure (PDF)
User Manual (PDF)
