Home » Econo-Link Thrust Bearing Swivel - Eye to Hook - Model 10E285 - 10 Ton - Miller Lifting Products
Miller Lifting Products

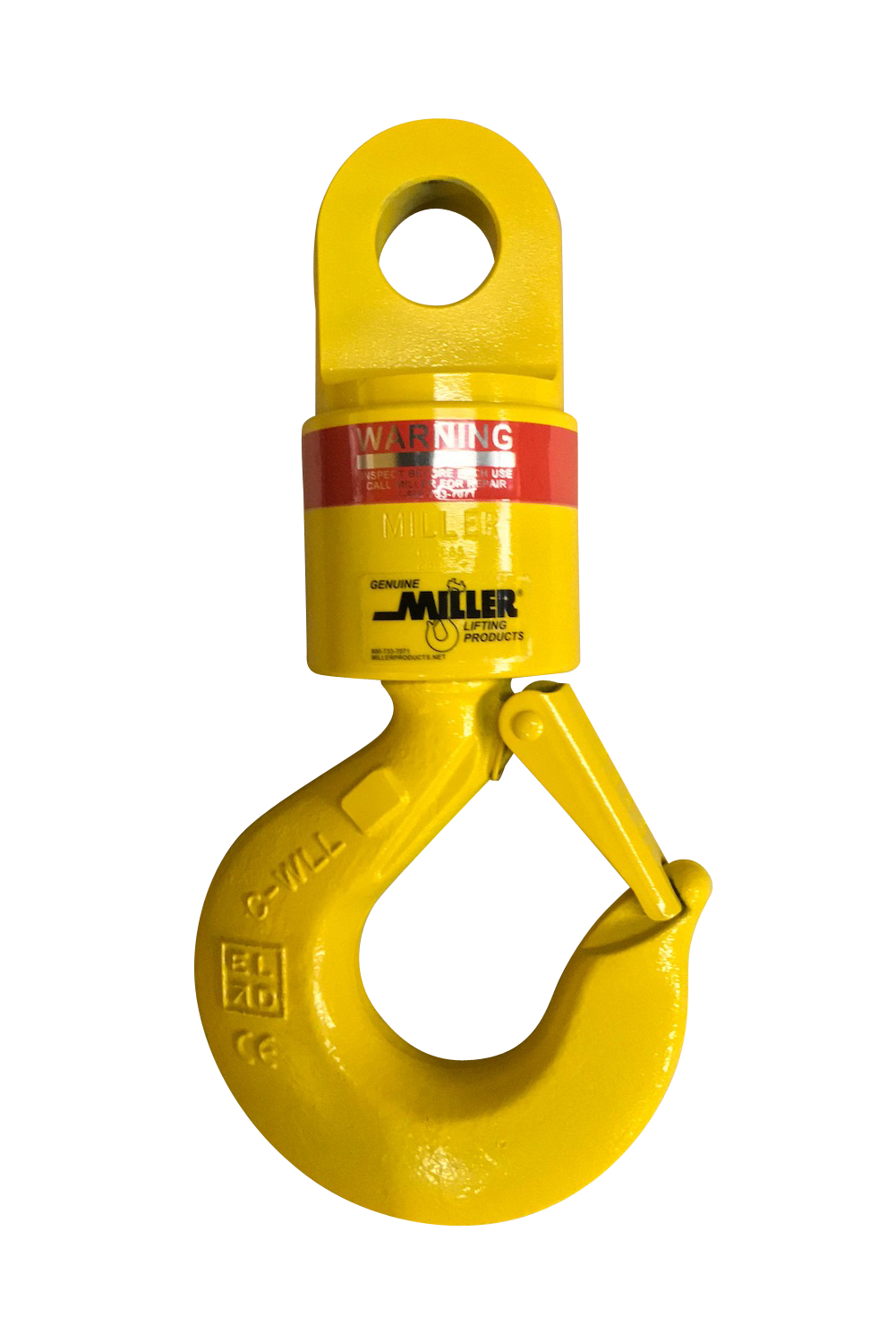

Econo-Link Thrust Bearing Swivel - Eye to Hook - Model 10E285 - 10 Ton - Miller Lifting Products

SKU: M132333080
$1,530.00
Estimated Lead Time:3 to 4 Business Days

Low initial cost and long service life provide outstanding value. 4:1 design factor in six popular configurations to 15 tons working load. Miller Econo-Link swivels are at work as swivel hooks on thousands of crane trucks, in rigging and lifting applications from infrastructure construction to oil and gas production, and in utility and general industrial.
  • Single tapered thrust bearing, factory lubricated
  • Tight-fit bronze bushing acting as a seal, retains lubricant and protects bearing
  • Load capacities from 3 to 15 tons
  • Wire rope diameters from ½” to 1”
  • Six popular clevis, hook, and eye configurations available
  • Structural components from cast alloy steel
  • Hook models with forged alloy steel hook and l
    safety latch
  • Finished with enamel coating
  • 4:1 design factor, Proof Load is 2 x WLL

Data Sheet (pdf)

12 Months
