DuraTech SRL with Galvanized Cable and Side-payout Aluminum Housing – FallTech

SKU: 7227C
$666.80
Length
Estimated Lead Time:1 to 2 Days

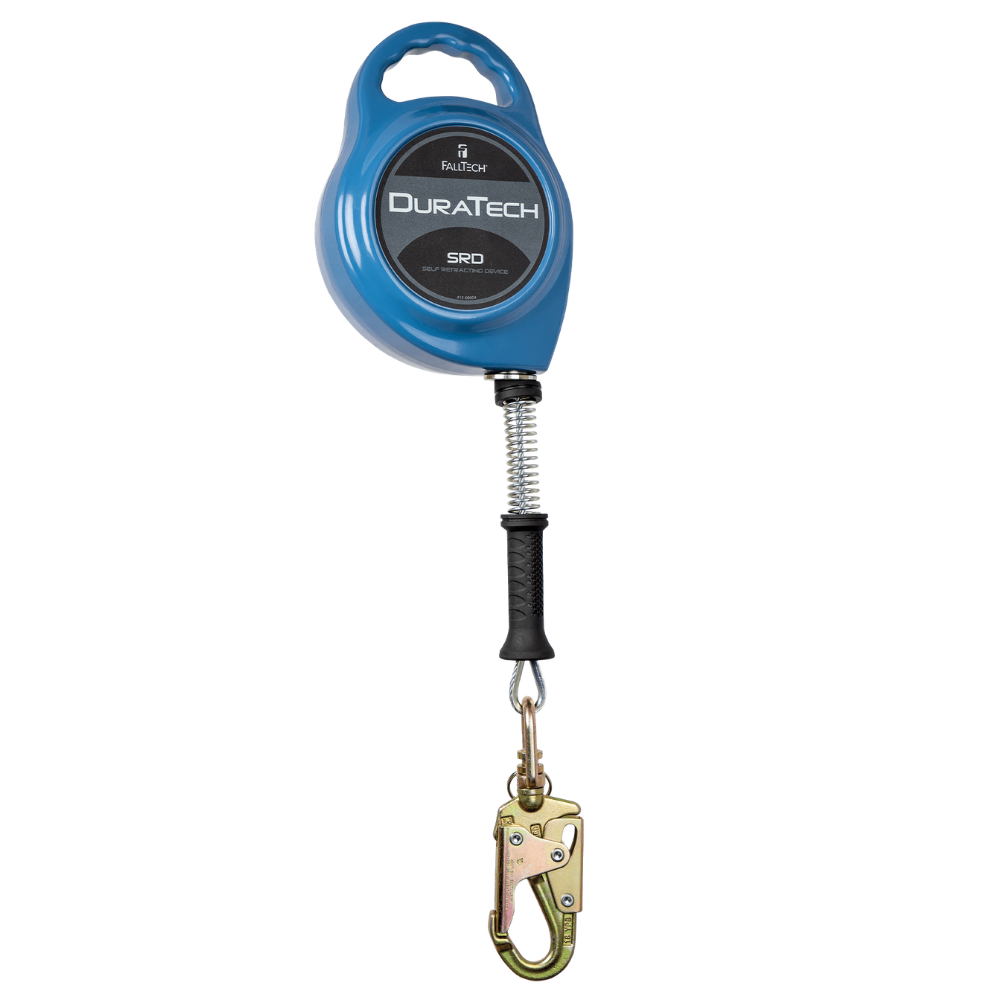

The FallTech DuraTech® Self-Retracting Lifeline with side-payout aluminum housing is engineered for smooth operation, reliable braking performance, and ease of use in demanding jobsite environments. The side-payout design allows consistent lifeline tracking, while the integrated hand-grip simplifies dorsal connection.

This SRL features a rugged internal inertial braking system with dual disc brakes for controlled deceleration and an integrated recoil spring that helps reduce retraction lock-up. The stackable housing design and built-in handle support efficient installation, transport, and storage. The unit complies with ANSI Z359.14-2021 standards.
  • Product Type: Self-Retracting Lifeline (SRL)
  • Cable: 3/16" galvanized steel; 3,400 lb minimum static strength
  • Lifeline Connector: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Static Strength: 3,600 lb minimum
  • ANSI SRL Class / Type: Class 1 SRL
  • Average Arrest Force: 1,350 lb
  • Maximum Arrest Force: 1,800 lb
  • Maximum Arrest Distance: 42 in
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 310 lb maximum
  • Compliance: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66

User Manual (PDF)
