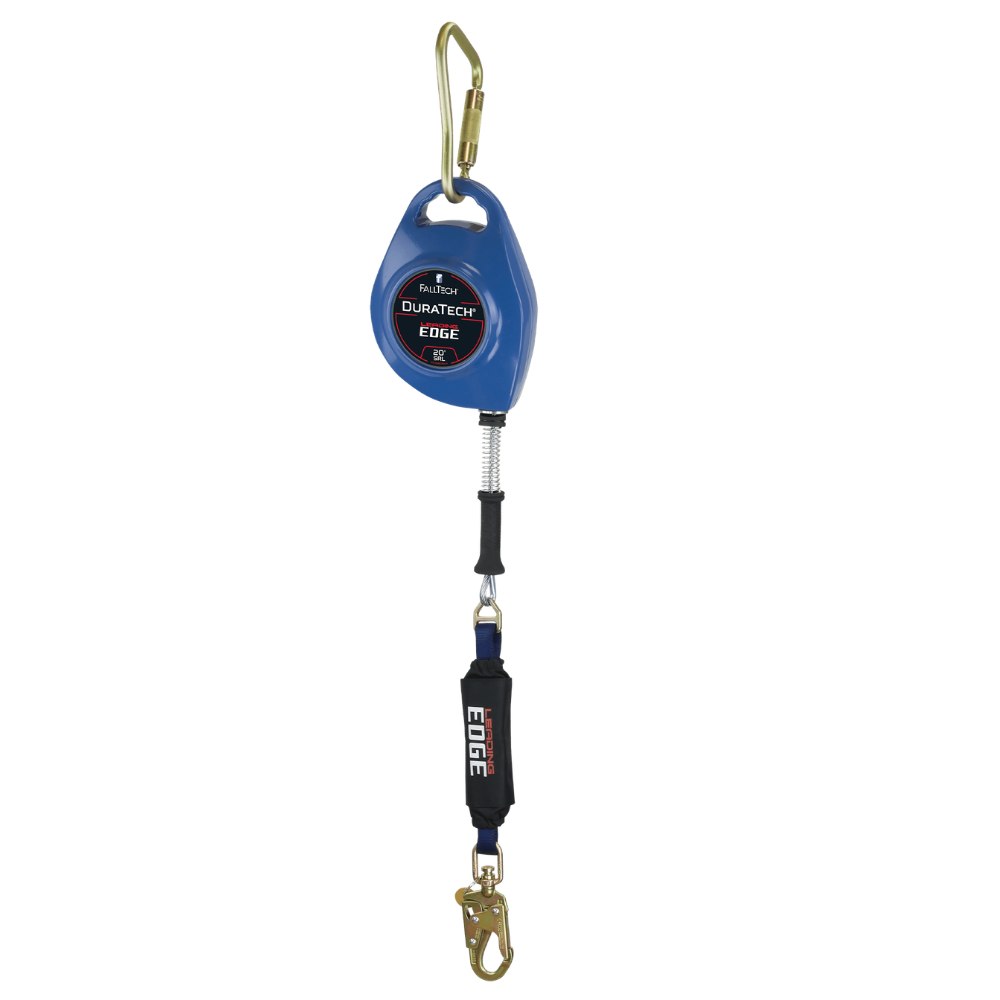

DuraTech Leading Edge Class 2 SRL with Steel Cable – FallTech

SKU: 7227CLE
$747.20
Length
Estimated Lead Time:1 to 2 Days

The FallTech DuraTech® Leading Edge Class 2 Self-Retracting Lifeline is engineered for demanding leading-edge applications where enhanced durability and braking performance are required. It features a 7/32" galvanized steel cable lifeline with a load-indicating swivel snap hook for reliable user connection.

An internal inertial braking system with dual disc brakes provides superior deceleration, while the integrated external ViewPack® energy absorber enhances braking performance and helps preserve lifeline integrity. The side-payout aluminum housing and integrated recoil spring deliver smooth operation and help reduce nuisance lock-up. Additional features include an integrated lifeline hand-grip, stackable aluminum housing with carrying handle, and an extra-large anchorage carabiner with a 2-1/4" gate opening. The unit complies with ANSI Z359.14-2021 Class 2 SRL requirements.
  • Product Type: Leading Edge Self-Retracting Lifeline (SRL)
  • Cable: 7/32" galvanized steel; 3,600 lb minimum static strength
  • Energy Absorber: Polyester tear-away
  • Lifeline Connector: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Anchorage Connector: Plated alloy steel; 5,000 lb minimum static strength, 3,600 lb gate strength
  • Static Strength: 3,600 lb minimum
  • ANSI SRL Class / Type: Class 2 SRL
  • Average Arrest Force: 1,350 lb
  • Maximum Arrest Force: 1,800 lb
  • Maximum Arrest Distance: 42 in
  • ANSI User Capacity: 130 to 310 lb maximum
  • OSHA User Capacity: 130 to 310 lb maximum
  • Compliance: ANSI Z359.14-2021, OSHA 1926.502 and 1910.66

User Manual (PDF)
