Drop Thru Anchor – Frontline

SKU: DT602
Regular price $124.99
Options
Estimated Lead Time:1 to 2 Days

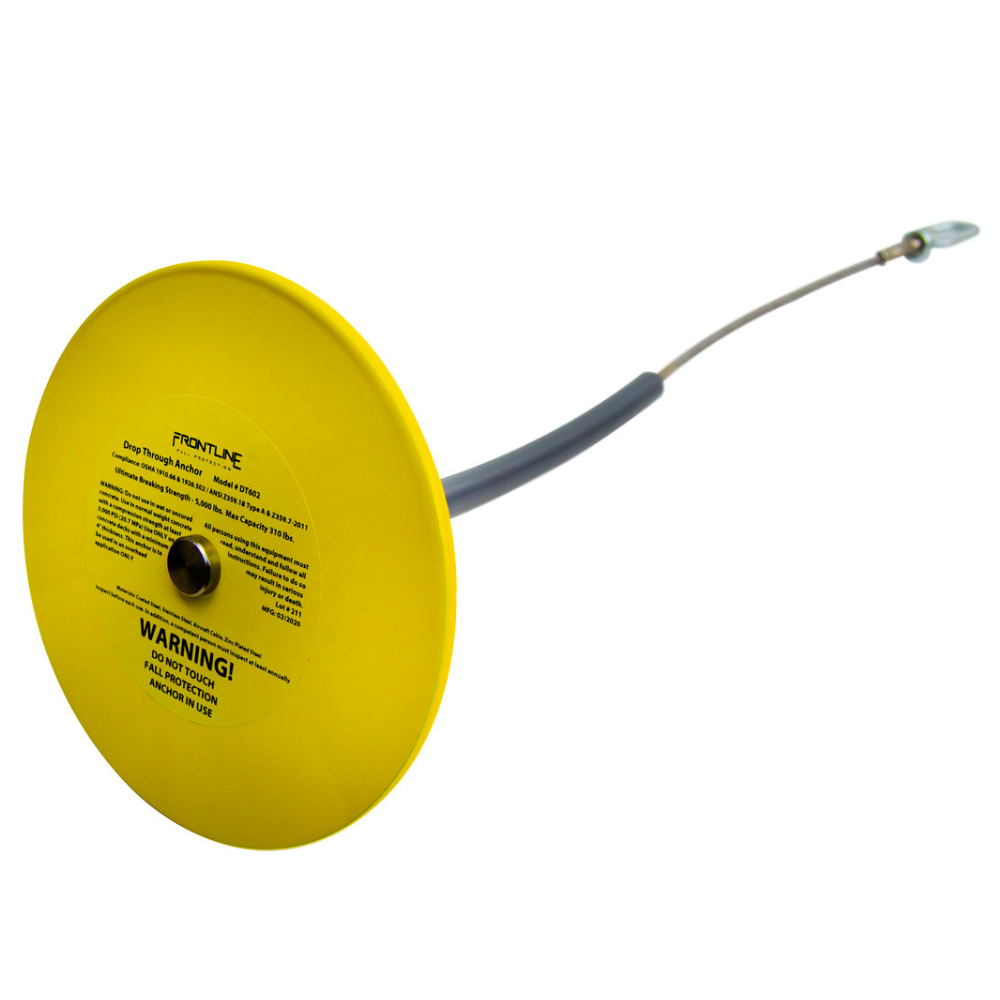

The Frontline Drop Thru Anchor is a fast, reliable solution for establishing overhead anchorage on concrete floors, steel girders, grates, and similar structures. This non-penetrating anchor installs in seconds with no tools required, preserving structural integrity while offering a secure tie-off point for fall protection systems.

Constructed with a combination of aircraft cable, a coated steel plate, and a zinc-plated swivel ring, the Drop Thru Anchor is lightweight, portable, and reusable—ideal for both temporary and permanent applications. Its polyurethane tubing and stainless steel end termination ensure durability and strength under demanding jobsite conditions.

  • lightweight, portable, and reusable design
  • non-penetrating setup preserves substrate
  • quick tool-free installation
  • aircraft cable with polyurethane tubing
  • coated steel plate and zinc-plated swivel ring
  • stainless steel end termination
  • user capacity: 310 lbs
  • static tensile strength: 5,000 lbf / 22 kN
  • meets or exceeds ANSI Z359.18, ANSI Z359.7, OSHA 1910.140, OSHA 1926.503
