Crossover Stair System - KC103 Model - Kattsafe

SKU: KC103.25-KBMK.180
$4,873.85
Clear Height of Platform
Crossover Mounting Kits
Estimated Lead Time:3 to 5 Days

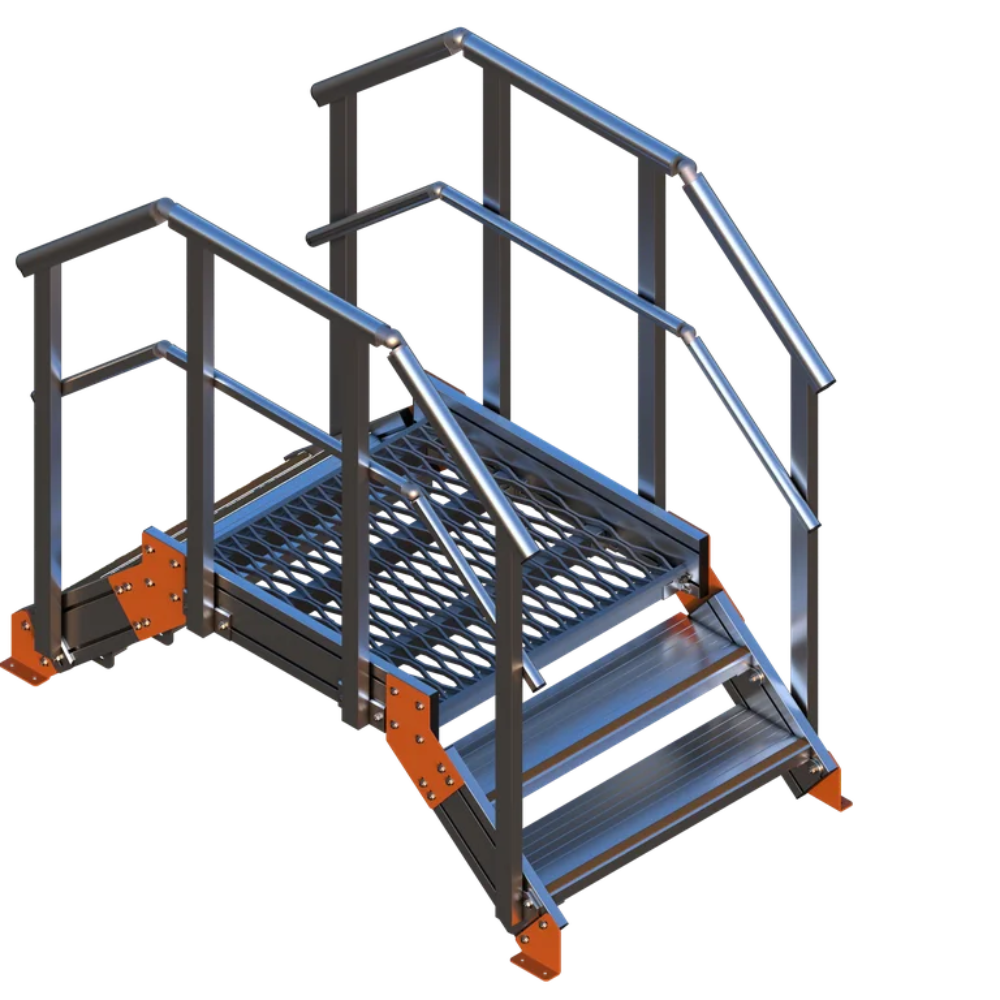

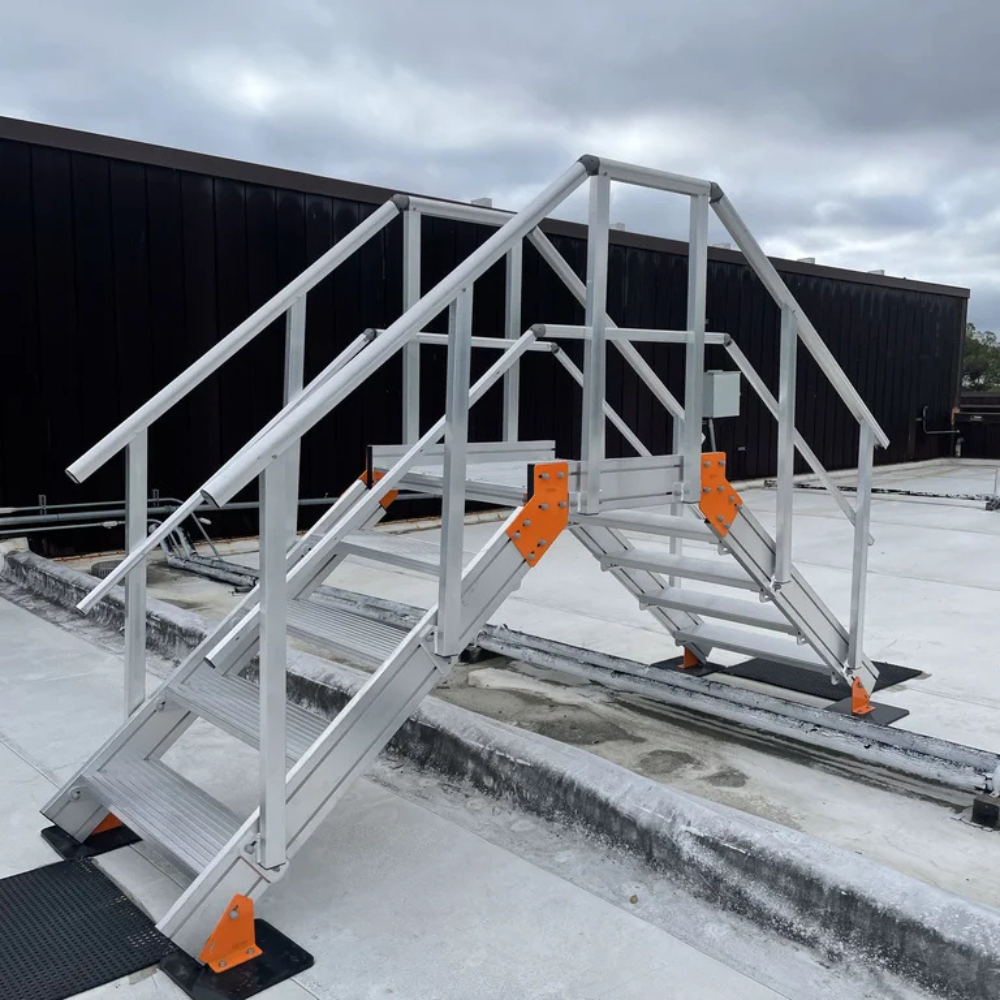

The KC103 Crossover Stair System allows for safe access over pipes, expansion joints, and equipment or up to elevated areas. KC103 Crossover Stair Systems are manufactured of high tensile strength aluminum, in stock and ready to ship, made in the USA, and meet OSHA and ANSI standards. The KC103 Crossover Stair System is available as standard in a 3ft wide configuration with a 36in long platform. KC103 Crossover Stair Systems are supplied in modules that simply bolt together in the field. The modular design allows for adjustment in the field as and when needed.

Kattsafe ladder systems are designed and manufactured to meet and exceed requirements of OSHA standard 1910.23, 1910.28, and CAL-OSHA 3277 as applicable.
  • 1000lb Working Load Limit

Materials

  • Stair treads: 10 x 1-½in (254 x 38mm) 6005-T5 aluminum tread with serration for grip
  • Stair Tread Mounting Brackets: Aluminum 6106-T6 brackets to mount stair tread to the stair stringer
  • Mounting Tread to Stringer: (2), 3/8in (9.5mm) stainless steel T-Bolts
  • Mount Bracket to Stair Tread: (2), 3/8in (9.5mm) stainless steel T-Bolts
  • Stair Stringer: 180 Extruded Aluminum 6005-T5. 7-1/8in x 1-1/4in (180 x 32mm). Cut to length per stair length required

Stair system mounting brackets

  • Floor brackets: Mount to stringer with 3/8in (9.5mm) stainless steel T-bolt. Can be mounted to: (1) 180 aluminum extrusion mounting support. (2) surface attachment method, anchored by anchor products, for roof attachment. (3) Non-penetrating plastic coated steel base plates. Subject to application.
  • Top brackets for platform: stainless brackets to mount stair systems to modular access platform

Platform

  • Surface: aluminum walkway grating. 1/2in (13mm) thick mesh, aluminum 6063-T4
  • Side rails: 80mm aluminum extrusion 6005-T5. 7-1/8 x 1-1/4in (180 x 32mm)
  • Floor brackets: Mount to stringer with 3/8in (9.5mm) stainless steel T-Bolts. Can be mounted to: (a) surface attachment method, anchored by Anchor Products, for roof attachment. (b) Non-penetrating
    plastic coated steel base plates. Subject to application.
  • Platform Connections: 180 or 80mm extrusion Angle Brackets. Stainless steel. 3/16in (5mm) thick
  • Platform Horizontal Support Sections: 60mm aluminum extrusion with welded post base on each end for quick connection to 80mm extrusion or 180 platform side rails.
  • Support Post Base Brackets: Stainless Floor Brackets. Mount to vertical support post modules with 3/8in (9.5mm) stainless steel T-Bolts

Guardrail

  • Top rail: 2in (51mm) round 6005-T5 aluminum top rail. Both sides of platforms. Tek screw to post
  • Mid rail: 1-5/8in (41mm) 6005-T5 round aluminum mid rial. Both sides of platforms. Tek screw to posts
  • Posts: side mount posts, aluminum rectangular hollow extrusion with welded mounting plates. Finished height to be 42in (1067mm)

Data Sheet (pdf)

Technical Drawing (pdf)

5 years from date of purchase subject to installation, use, and maintenance in accordance with manufacturer’s specifications and recommendations.
