Crossover Square - EFSQ40G-25 - Easyfit

SKU: EFSQ40G-25
$10.90
Estimated Lead Time:3 to 5 Days

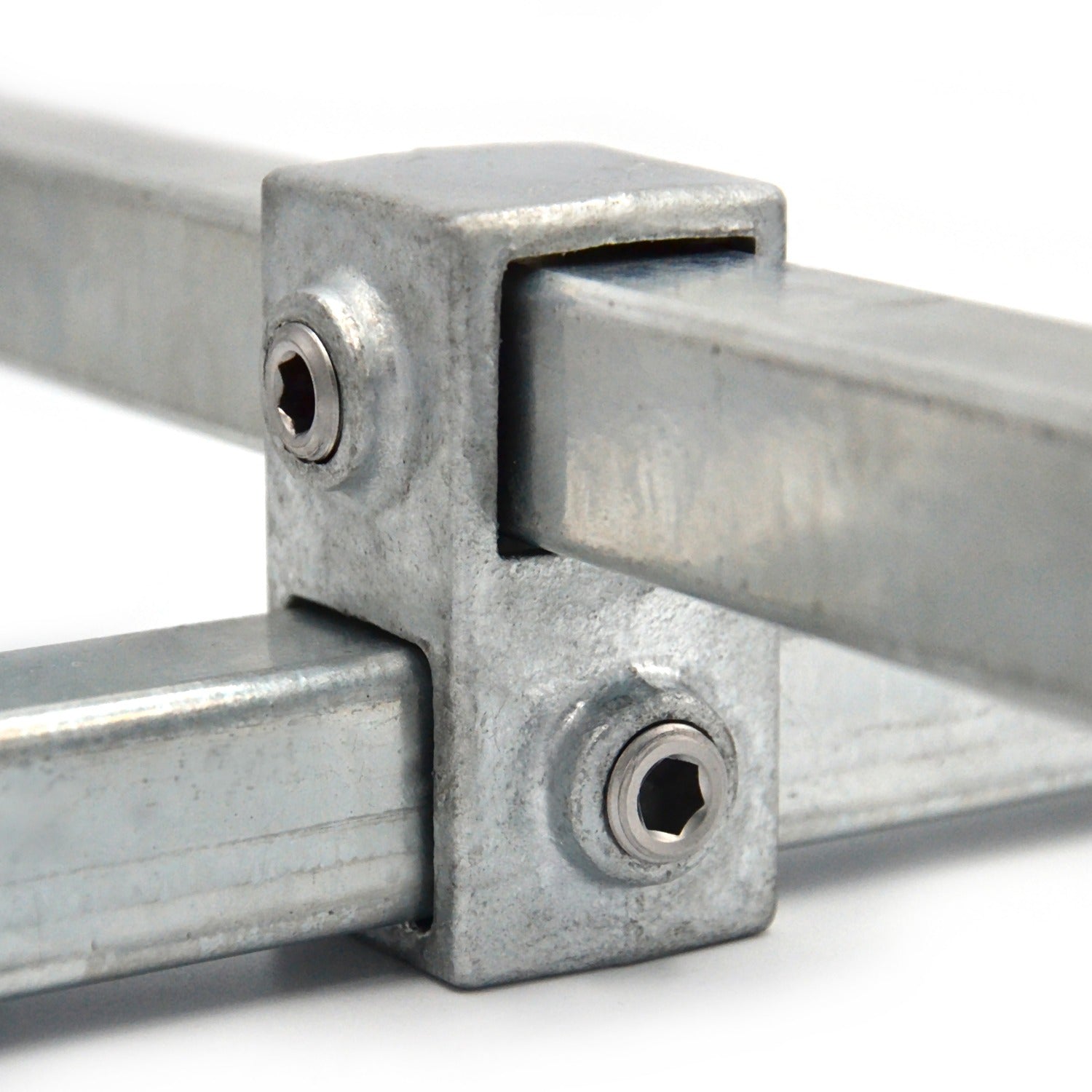

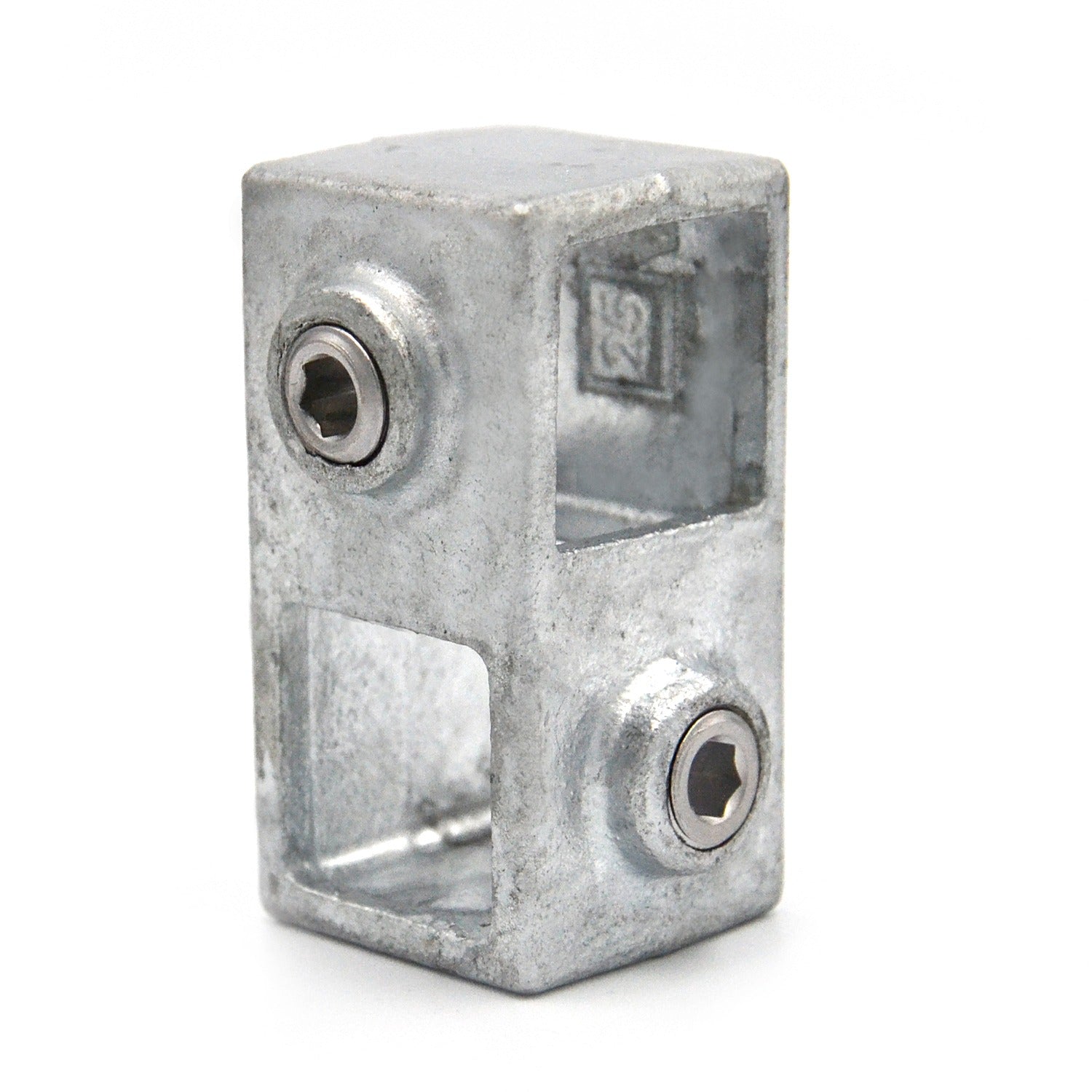

The Easyfit Crossover – Square (EFSQ40G-25) is designed to connect two square tubes at a 90-degree angle in an offset configuration, meaning the tubes do not intersect within the fitting. It’s commonly used in shelf and pallet racking systems to join horizontal rails to vertical uprights without needing to cut or alter the tube ends.

Compatible with 1" x 1" (25 mm) square galvanized tubing of 2 mm wall thickness, the fitting is made from galvanized cast iron for superior corrosion resistance and installs easily using an allen wrench.
  • Connects two square tubes at 90° in an offset layout
  • Ideal for racking systems and vertical-to-horizontal connections
  • Compatible with 1" x 1" (25 mm) square galvanized tube (2 mm wall)
  • Only requires an allen wrench for installation
  • Indoor and outdoor use
  • No welding needed
  • Includes steel set screws for secure connection
  • Galvanized cast iron for durability and corrosion resistance
