Confined Space Davit System, 12"–29" Offset, 5-Piece with Winch & SRL-R – 6050428WR – FallTech

SKU: 6050428WR
$7,729.20
Estimated Lead Time:3 to 5 Days

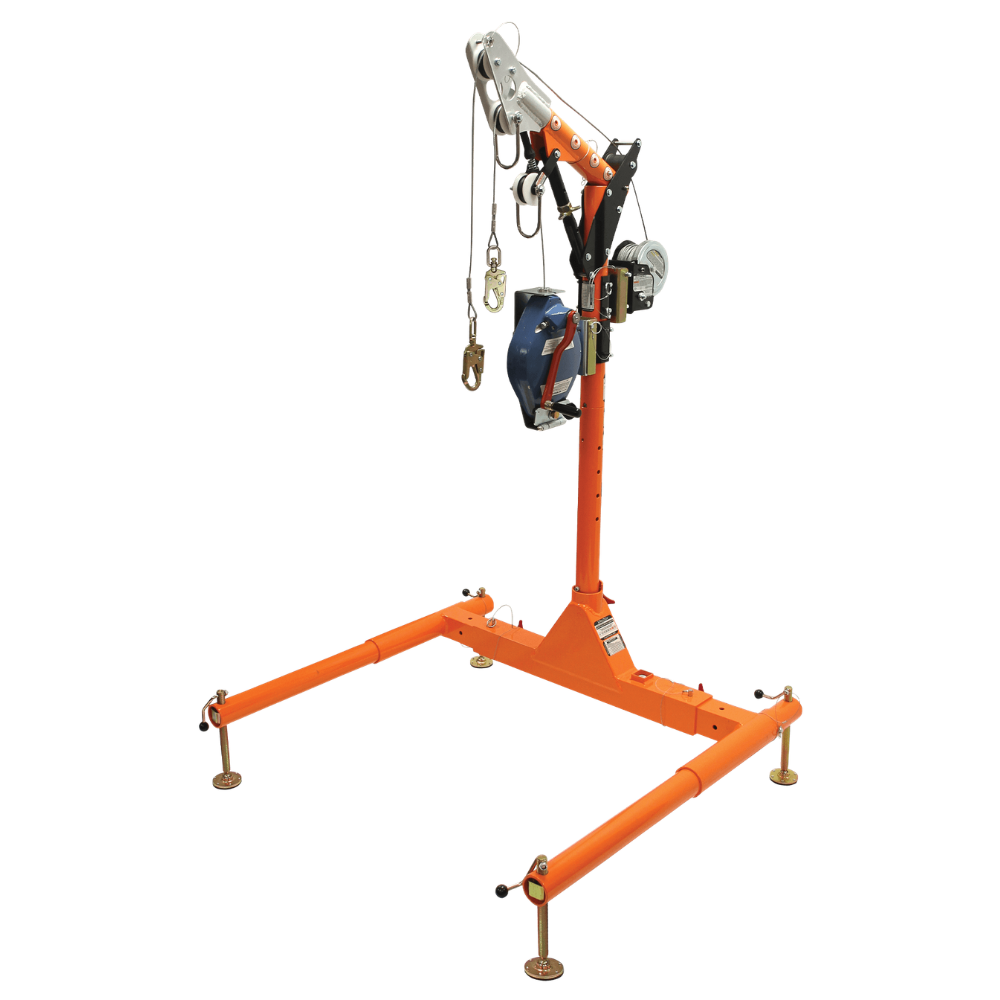

The FallTech 6050428WR 5-Piece Confined Space Davit System provides a fully equipped solution for entry, retrieval, and rescue operations. The adjustable davit arm offers a 12" to 29" offset reach to correctly position lifelines above access points, while the adjustable base spans 38" to 65" to accommodate a wide variety of openings. This system includes a 33" lower mast extension, two device receiver brackets, a 60' galvanized steel SRL-R, and a personnel winch for comprehensive fall protection and rescue capability.

Built from powder-coated 6061 aluminum and plated steel, the system delivers strength, durability, and long service life. Additional features include dual pulleys on the davit arm, a secondary 5,000 lb-rated anchor point, an integral bullseye level on the base, and tool-free height adjustment. The system complies with OSHA 1926.502 and 1910.66, with the SRL-R meeting ANSI Z359.14-2014 and the personnel winch meeting ANSI Z359.4-2013.
  • Product Code: 6050428WR
  • Davit Arm Offset Range: 12 in to 29 in
  • Base Width Range: 38 in to 65 in
  • Material: Powder-coated 6061 aluminum and plated steel
  • Included Devices: 60 ft galvanized SRL-R; Personnel Winch
  • Rescue Static Strength: 5,000 lb min
  • Entry/Egress Static Strength: 1,800 lb min
  • Rescue User Capacity: 2 users, 310 lb max each
  • Entry/Egress User Capacity: 1 user, 310 lb max
  • Compliance: OSHA 1926.502 and 1910.66; ANSI Z359.14-2014; ANSI Z359.4-2013
  • Weight: 215 lbs

Product Brochure (PDF)
User Manual (PDF)
