Confined Space Davit System, 12"–29" Offset, 5-Piece with SRL-R – 6050328R – FallTech

SKU: 6050328R
$7,118.40
Estimated Lead Time:3 to 5 Days

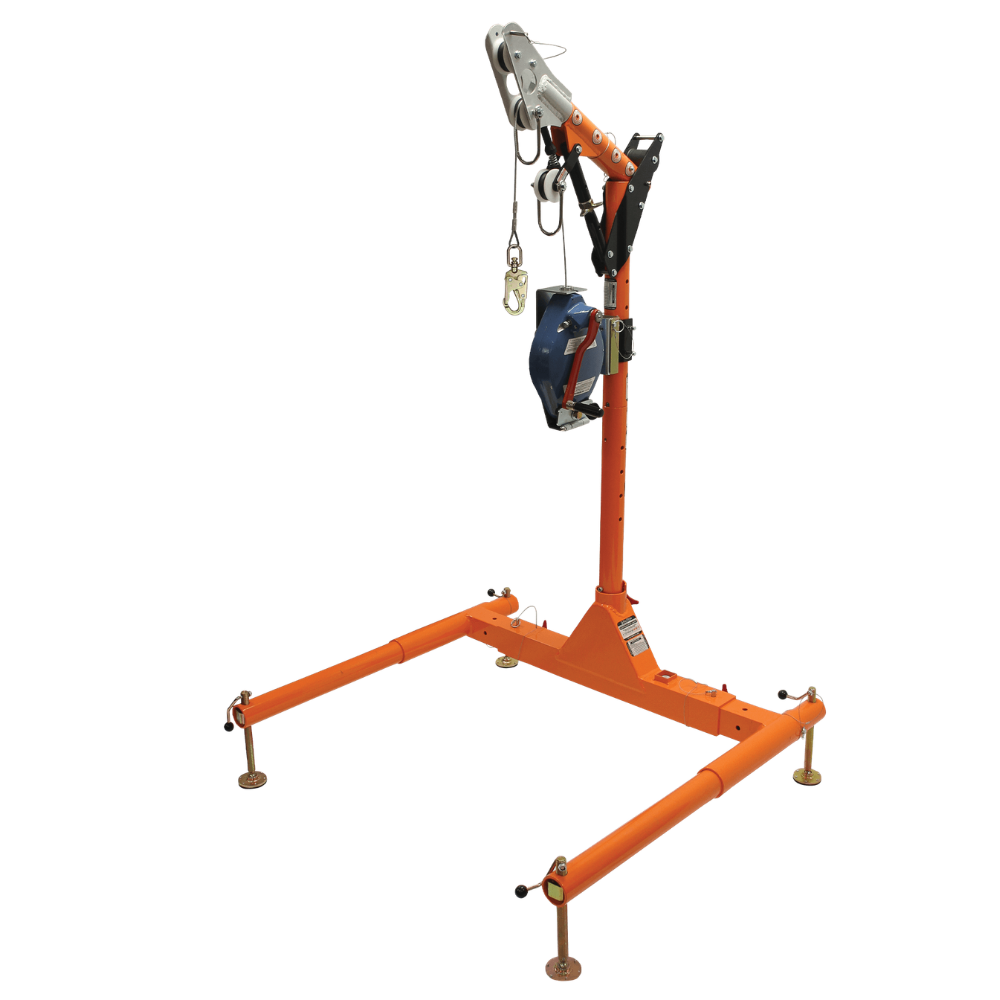

The FallTech 6050328R 5-Piece Confined Space Davit System provides a complete solution for safe entry, retrieval, and rescue operations. The adjustable davit arm offers a 12" to 29" offset reach to position lifelines directly over access points, while the base adjusts from 38" to 65" to fit a wide range of openings. The system includes a 33" lower mast extension, device receiver bracket, and a 60' galvanized cable SRL-R for reliable fall arrest and retrieval capability.

Designed for durability, the system uses powder-coated 6061 aluminum and alloy steel for long service life. Key features include dual pulleys on the davit arm, a secondary 5,000 lb anchor point, integral base bullseye level, and tool-free height adjustment. The system complies with OSHA 1926.502 and 1910.66 regulations, while the SRL-R meets ANSI Z359.14-2014.
  • Product Code: 6050328R
  • Davit Arm Offset Range: 12 in to 29 in
  • Base Width Range: 38 in to 65 in
  • Material: Powder-coated 6061 aluminum and plated steel
  • SRL-R: 60 ft galvanized steel cable
  • Rescue Static Strength: 5,000 lb min
  • Entry/Egress Static Strength: 1,800 lb min
  • Rescue User Capacity: 2 users, 310 lb max each
  • Entry/Egress User Capacity: 1 user, 310 lb max
  • Compliance: OSHA 1926.502 and 1910.66; ANSI Z359.14-2014
  • Weight: 175 lbs

Product Brochure (PDF)
User Manual (PDF)
