MEGA Davit Confined Space Davit Arm System - Wall Mount - Frontline

SKU: DAC-WL
$5,399.00
Options
Estimated Lead Time:5 to 7 Days

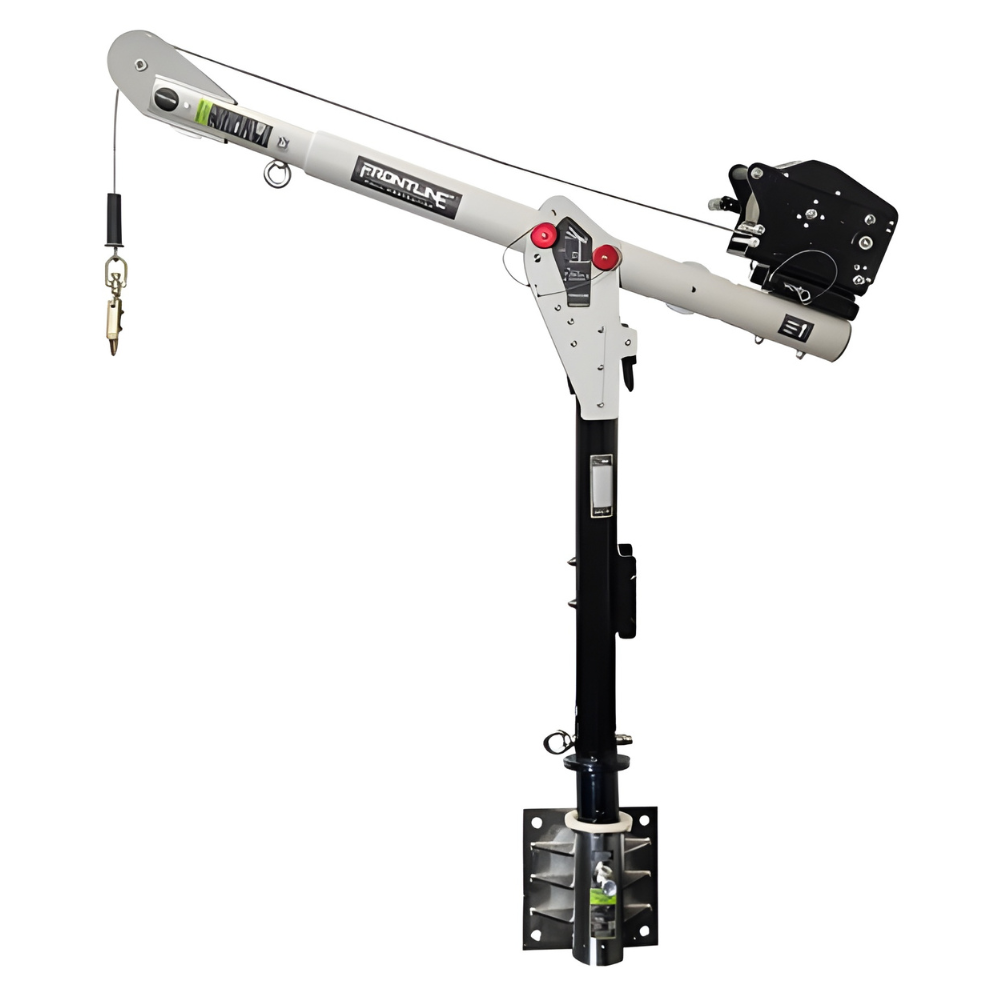

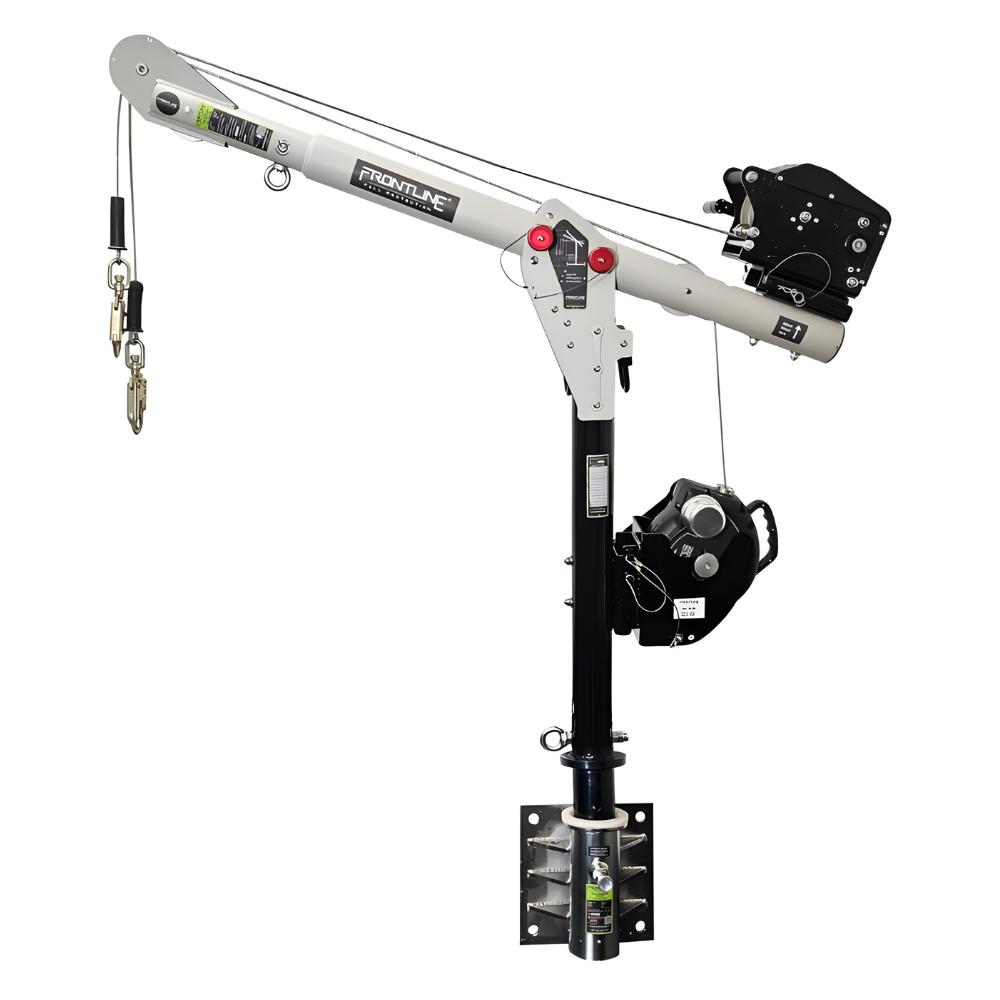

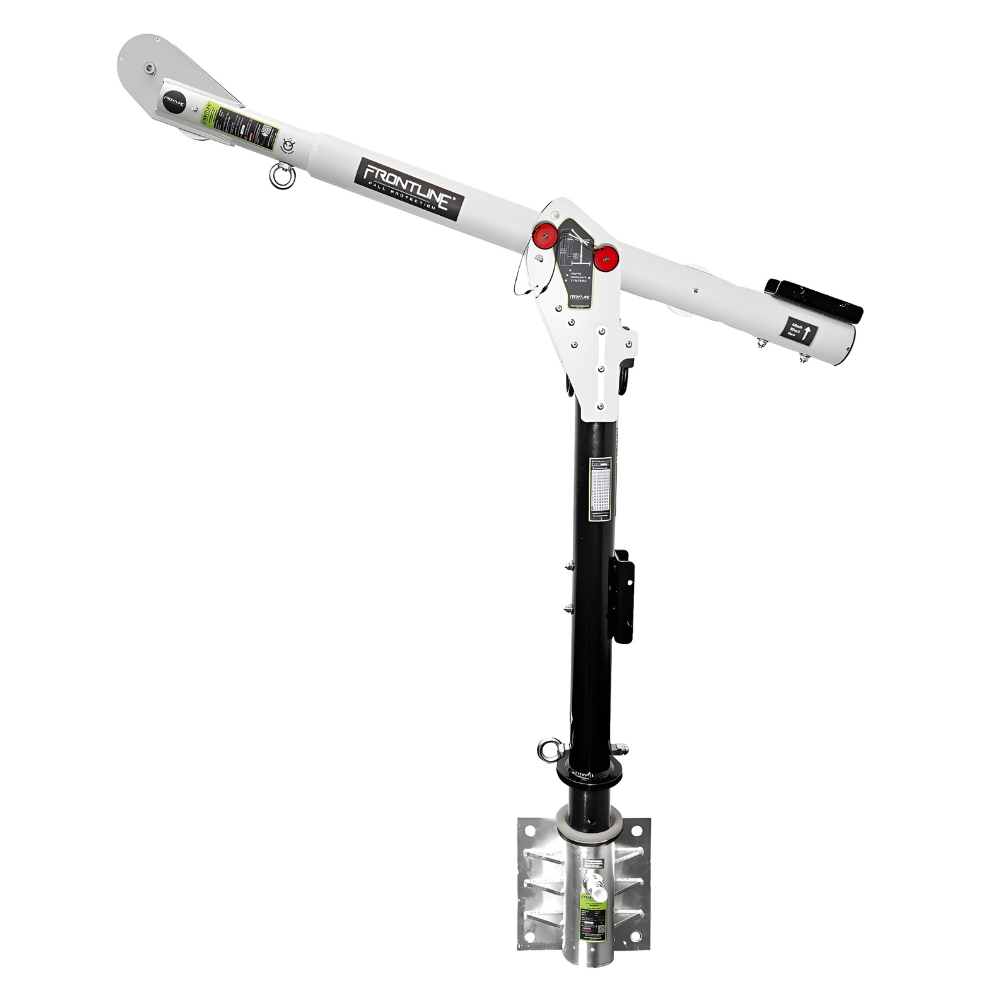

The Frontline Confined Space Davit Arm System with Wall Mount offers a safe, reliable solution for overhead anchorage and personnel retrieval in confined space applications. Designed for easy access to manholes, storage tanks, silos, and similar environments, this modular system ensures quick setup and enhanced safety during confined space entry, rescue, and material handling.

The cantilever boom provides multiple anchorage points and includes a universal mounting bracket for fast installation of winches or optional 3-way retrieval fall arrest devices. The column’s 360-degree swiveling capability under load further enhances operational flexibility, while the pre-installed mounting brackets simplify system assembly. Built from high-strength aluminum alloy, this lightweight, durable system is easily transported and configured for various applications using the included wall mount.
  • Mounting option: Includes wall mount for concrete or steel substrates
  • Material: High strength aluminum alloy
  • System weight: 88 lbs
  • User capacity: 310 lbs
  • Easy three-piece assembly for transport and storage
  • Modular design compatible with fixed floor, wall mount, or H-Base configurations
  • Cantilever arm with three adjustable height positions
  • Multiple anchorage points for fall arrest and rescue operations
  • 360-degree swiveling column for enhanced accessibility
  • Pre-installed lower mounting brackets for winch and retrieval devices

Spec Sheet (PDF)
User Manual (PDF)
