ChatGPT said: Vertical Base Flange - EF13G - Easyfit

SKU: EF13G-25
$50.10
Size
Estimated Lead Time:3 to 5 Days

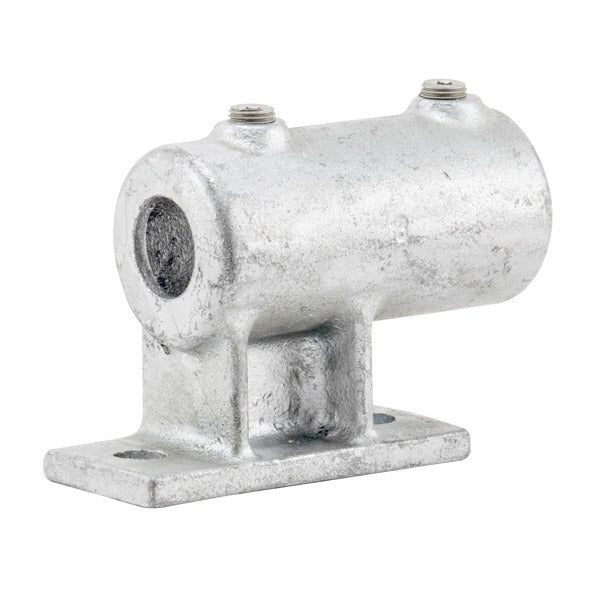

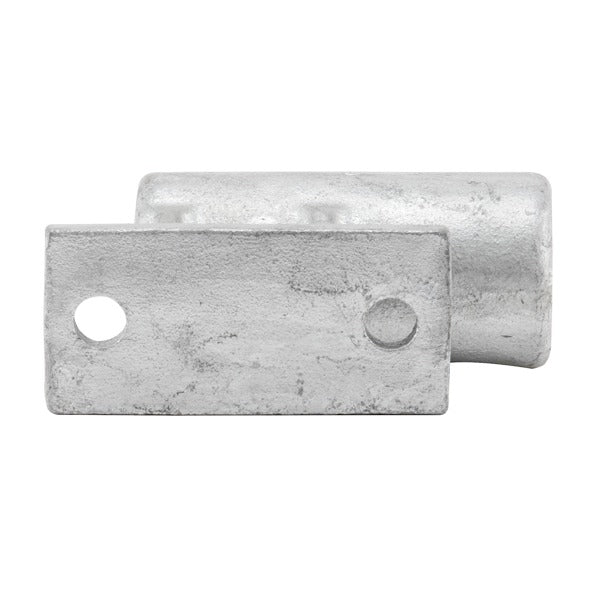

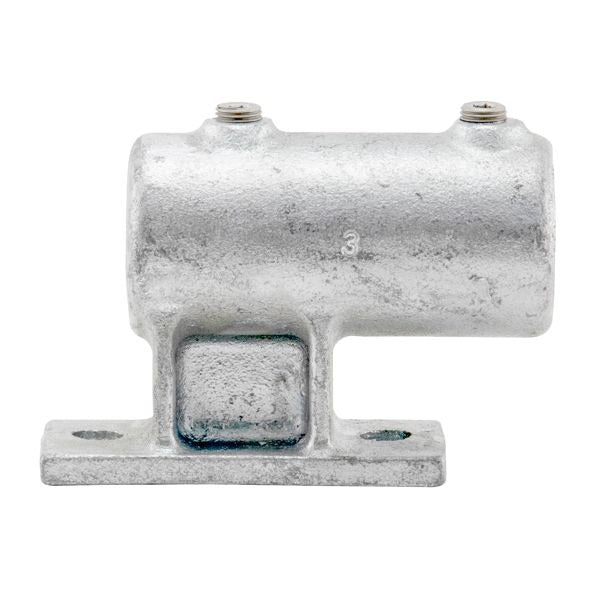

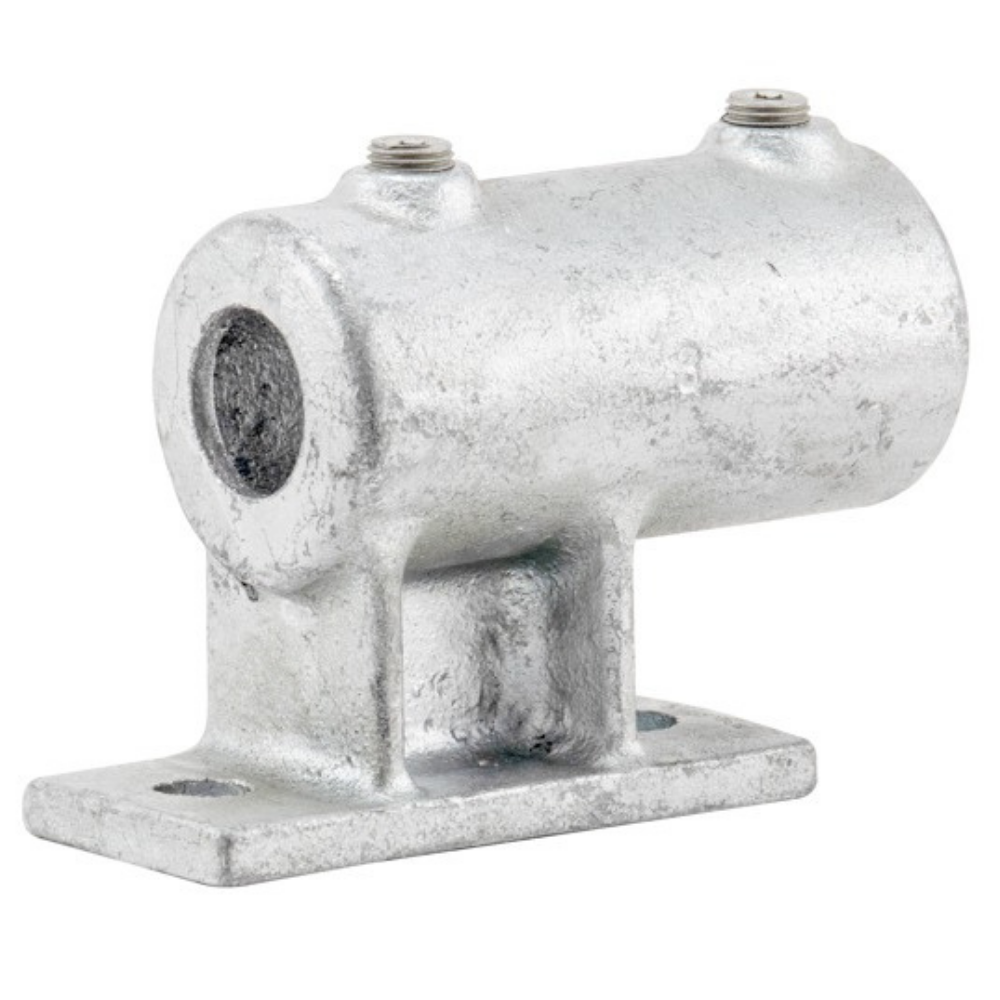

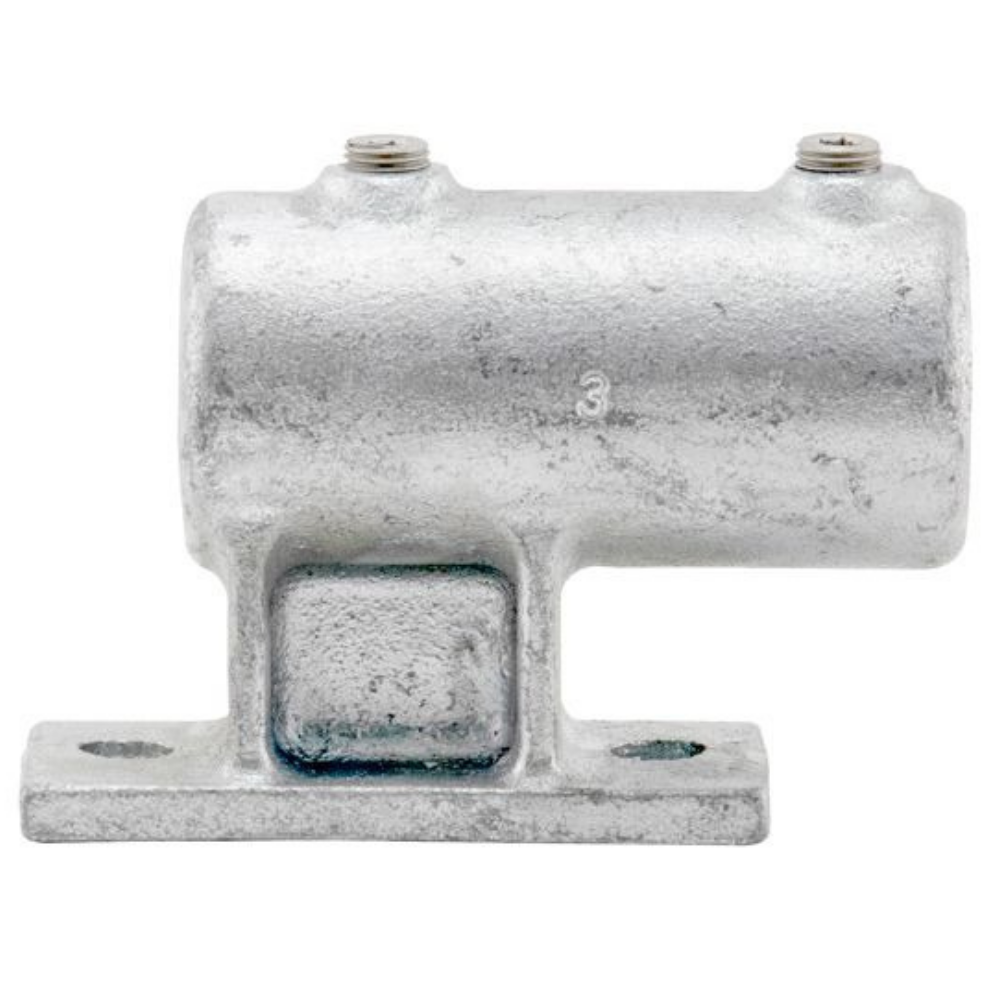

The Easyfit Vertical Base Flange (EF13G) provides a secure side-mounting option for vertical posts, especially when bolt-through access is available on the opposite side of the mounting surface. Ideal for attaching guardrails or handrails to the sides of structural beams, this flange allows for a clean and sturdy installation.

Made from galvanized cast iron and hot-dip galvanized to BS EN ISO 1461 standards, the EF13G is built for durability and corrosion resistance in both indoor and outdoor environments. It uses two 1/2" diameter bolts for mounting and installs easily with basic tools.
  • Side-mounts vertical posts to structural beams
  • Designed for bolt-through installations
  • Ideal when back-side access is available
  • Mounting hardware size: 2 @ 1/2" diameter
  • Hot dip galvanized for corrosion resistance
  • Indoor and outdoor use
  • No welding required
  • Installs with standard hand tools
  • Compatible with Easyfit structural tubing
