Center-Mount Stainless Steel Bolt-On Fixed Davit Base – 65040CMS – FallTech

SKU: 65040CMS
$1,307.60
Estimated Lead Time:3 to 5 Days

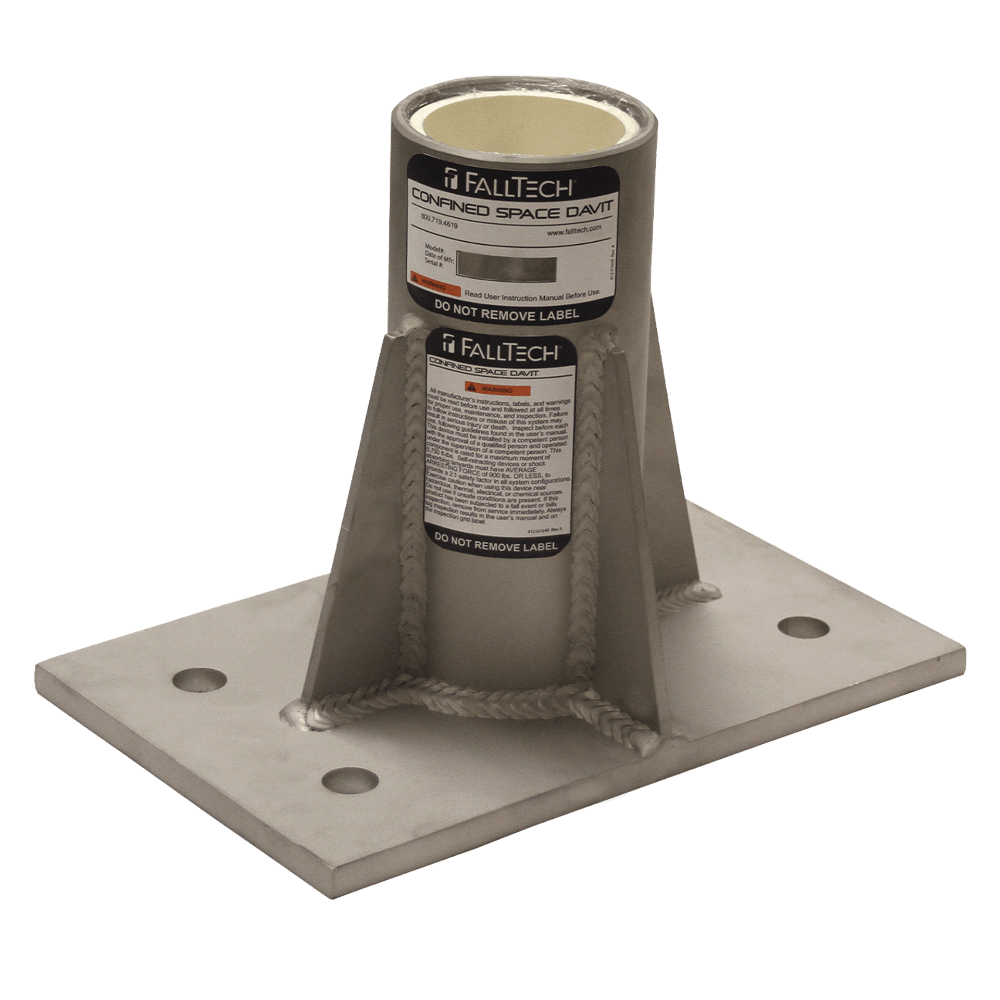

The FallTech 65040CMS Center-Mount Bolt-On Fixed Davit Base provides a permanent anchoring solution for recurrent access locations. Designed for installation onto existing steel or concrete surfaces, the 8" × 12" stainless steel base plate offers long-lasting durability and secure support. The 9" deep sleeve with PVC insert enables reliable attachment of compatible davit arms and mast extensions. This requires user-provided fasteners for installation. When integrated into a complete system, it meets OSHA 1926.502 and 1910.66 regulations.
  • Product Code: 65040CMS
  • Base Material: 304 stainless steel
  • Sleeve Material: PVC
  • Base Plate Size: 8 in × 12 in
  • Sleeve Depth: 9 in
  • Rated Capacity: 620 lb at 4:1 design factor
  • Mast Moment Proof Load: 6,167 ft-lb
  • Mast Rotation: 360°
  • Compliance: OSHA 1926.502 and 1910.66 (when part of a complete system)
  • Weight: 24 lbs

Product Brochure (PDF)
User Manual (PDF)
