Bolt-On D-Ring Anchor with Stud and Nut – 7435 – FallTech

SKU: 7435
$55.60
Estimated Lead Time:1 to 2 Days

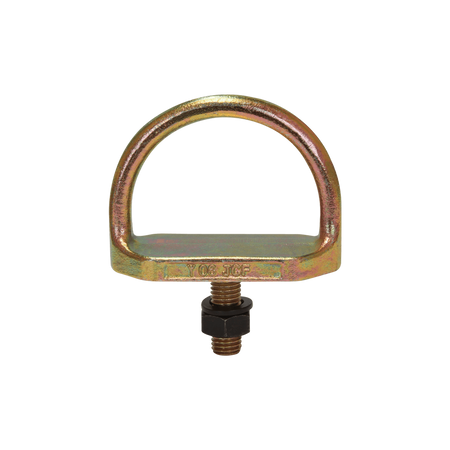

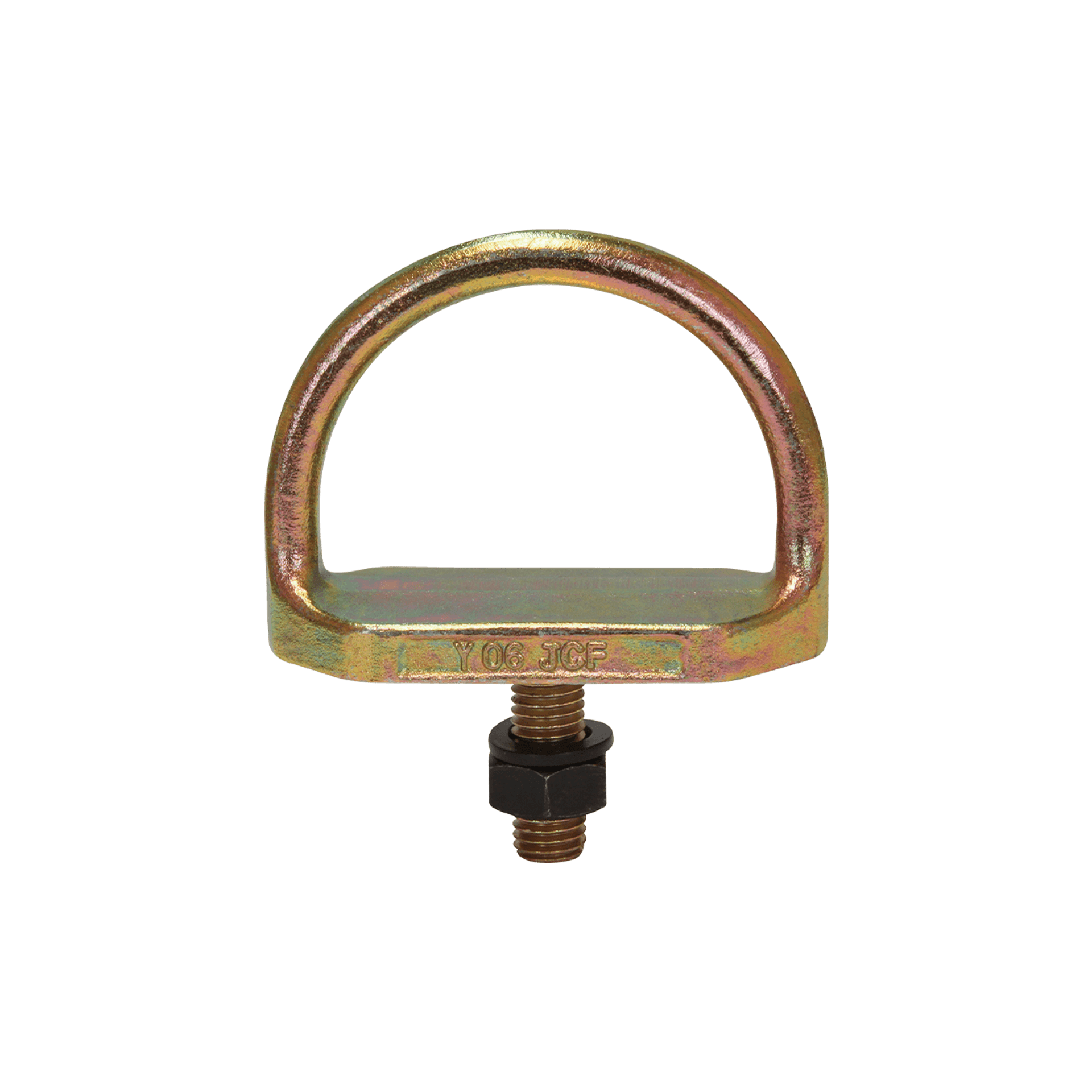

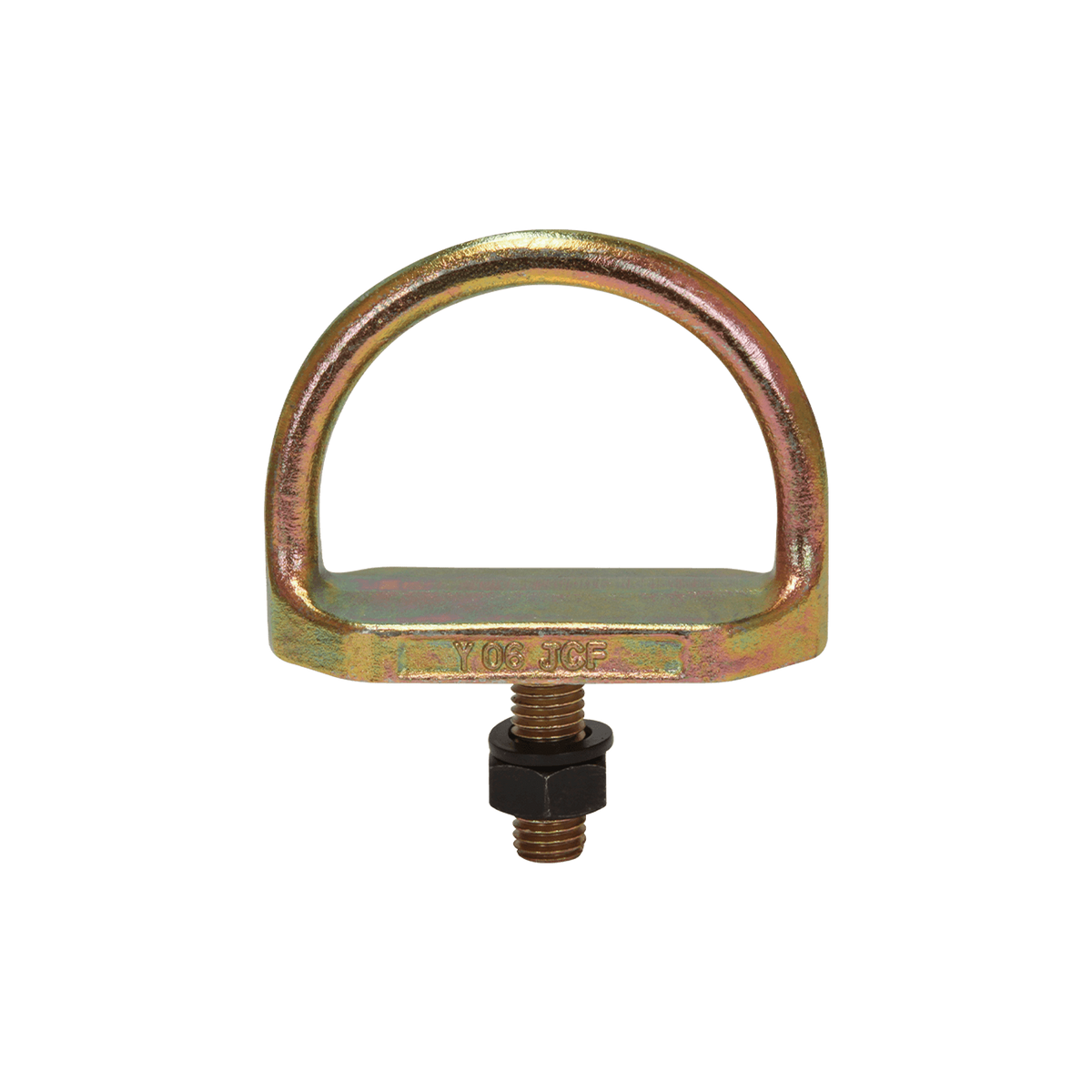

The FallTech 7435 Bolt-On D-Ring Anchor provides a permanent anchorage point for steel structures up to 7/8 inch thick. It features a large internal dimension of 2-1/4 by 3-1/4 inches for easy connector compatibility and uses a solid one-piece forged construction with a threaded stud and Grade 8 nut.
  • Product Code: 7435
  • Material: Plated alloy steel
  • Fit Range: For steel up to 7/8 in thickness
  • Internal Dimensions: 2.25 in × 3.25 in
  • Static Strength: 5,000 lb minimum
  • ANSI User Capacity: 130 to 310 lbs
  • OSHA User Capacity: 130 to 425 lbs
  • Compliance: ANSI Z359.18-2017, OSHA 1926.502 and 1910.66
  • Weight: 1.36 lbs each

User Manual (PDF)
